K210 Edge AI Vision Camera with OV7740 Sensor, 0.8 TOPS KPU, and MicroPython Support
The M5Stack U078-C UnitV-OV7740 is a compact edge-AI vision camera built around the Kendryte K210 system-on-chip. The K210 integrates a dual-core 64-bit RISC-V processor running at 400 MHz, 8MiB of on-chip SRAM, and a dedicated neural-network processor delivering up to 0.8 TOPS for convolutional neural-network workloads. This enables image recognition and machine-vision processing to run locally without relying on continuous cloud connectivity.
The onboard OV7740 0.3MP colour image sensor provides a 65° field of view and supports VGA, QVGA, CIF, and smaller image formats. UnitV also includes 16MB Flash, two programmable buttons, a WS2812 RGB status LED, USB Type-C, HY2.0-4P expansion, and microSD card support for storing models and application data. MicroPython-based MaixPy development, together with Arduino and M5Stack vision tools, makes the module suitable for object detection, classification, shape recognition, tracking, and embedded machine-vision projects.
Key Features
- AI Processor: Kendryte K210 edge-computing SoC
- CPU: Dual-core 64-bit RISC-V RV64IMAFDC processor
- Clock Frequency: 400 MHz nominal operating frequency
- Neural Processor: Integrated KPU for convolutional neural-network acceleration
- AI Performance: Up to 0.8 TOPS
- On-Chip Memory: 8MiB 64-bit SRAM
- Flash Memory: 16MB
- Camera Sensor: OV7740 colour image sensor
- Camera Resolution: 0.3MP
- Field of View: 65°
- Image Formats: Supports RAW RGB and YUV output
- Image Sizes: Supports VGA, QVGA, CIF, and smaller formats
- Floating-Point Processing: Integrated double-precision FPU
- Programmable I/O: Integrated FPIOA programmable I/O array
- Security Acceleration: Hardware AES and SHA256 acceleration
- DMA: Integrated Direct Memory Access Controller
- Status Indicator: 1 × programmable WS2812 RGB LED
- User Input: 2 × programmable buttons
- Storage Expansion: TF/microSD card slot
- USB Interface: USB Type-C
- Grove Expansion: HY2.0-4P interface supporting I/O, UART, and I2C functions
- Development Support: MicroPython/MaixPy, Arduino, V-Function, and V-Training
Applications
- Object detection
- Image classification
- Real-time target localisation
- Target size and coordinate acquisition
- Shape recognition
- Object tracking
- Machine-vision systems
- Embedded AI cameras
- Robotics vision
- Video recording
- Industrial visual recognition
- Educational AI projects
- Edge-AI prototyping

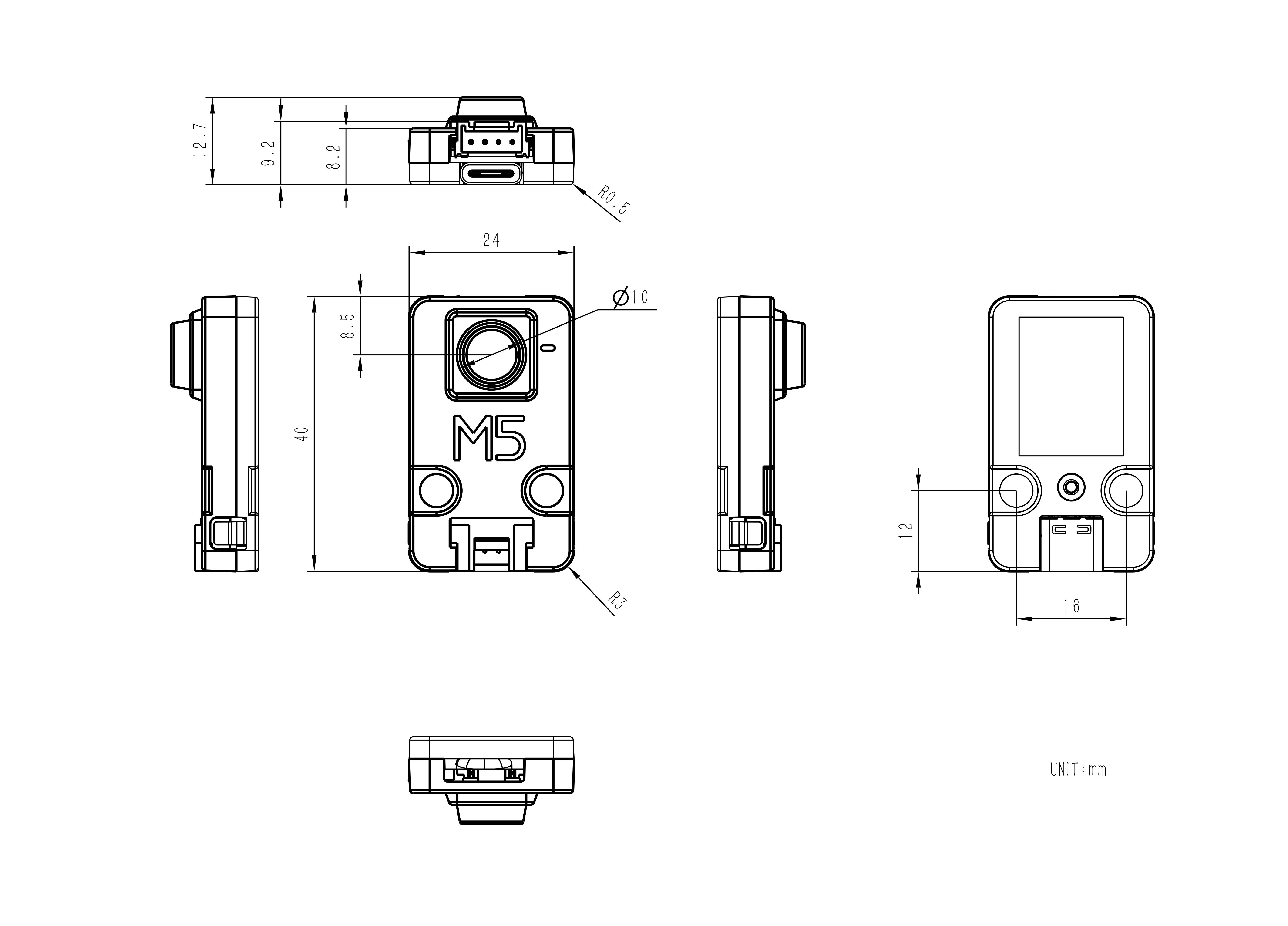

Model Size
Package Includes:
- 1 x UnitV-OV7740
- 1 x HY2.0-4P Grove cable (20cm)
