Environmental Sensor Unit with SHT30 and QMP6988 for Temperature, Humidity, and Pressure Monitoring
The M5Stack U001-C Unit ENV-III is a compact environmental sensing module that combines an SHT30 temperature and humidity sensor with a QMP6988 absolute air-pressure sensor. It enables simultaneous measurement of temperature, relative humidity, and atmospheric pressure through a single I2C-connected module, making it suitable for environmental monitoring, weather stations, storage monitoring, and IoT data-collection systems.
The SHT30 provides high-accuracy temperature and humidity measurements with temperature accuracy up to ±0.2°C within the specified range and humidity accuracy of ±2% RH. The QMP6988 measures atmospheric pressure from 300 to 1100 hPa with 0.06 Pa resolution. Both sensors communicate over I2C using separate addresses: 0x44 for the SHT30 and 0x70 for the QMP6988. The module uses an HY2.0-4P Grove interface for convenient connection to compatible M5Stack controllers and includes two LEGO-compatible mounting holes for integration into prototypes and monitoring systems.
Key Features
- Integrated SHT30 temperature and humidity sensor
- Integrated QMP6988 absolute pressure sensor
- Measures temperature, relative humidity, and atmospheric pressure
- High-accuracy digital environmental sensing
- Temperature measurement accuracy up to ±0.2°C
- Humidity measurement accuracy of ±2% RH
- Atmospheric pressure range from 300 to 1100 hPa
- Pressure resolution of 0.06 Pa
- I2C communication interface
- SHT30 I2C address: 0x44
- QMP6988 I2C address: 0x70
- HY2.0-4P Grove interface
- 2 LEGO-compatible mounting holes
- Compact PC enclosure
- Supports UiFlow1, UiFlow2, and Arduino development
Applications
- Weather stations
- Indoor environmental monitoring
- Grain storage environment monitoring
- Warehouse temperature and humidity monitoring
- Atmospheric pressure monitoring
- Smart agriculture systems
- IoT environmental data logging
- HVAC monitoring projects
- Smart home environmental sensing
- Laboratory and educational projects

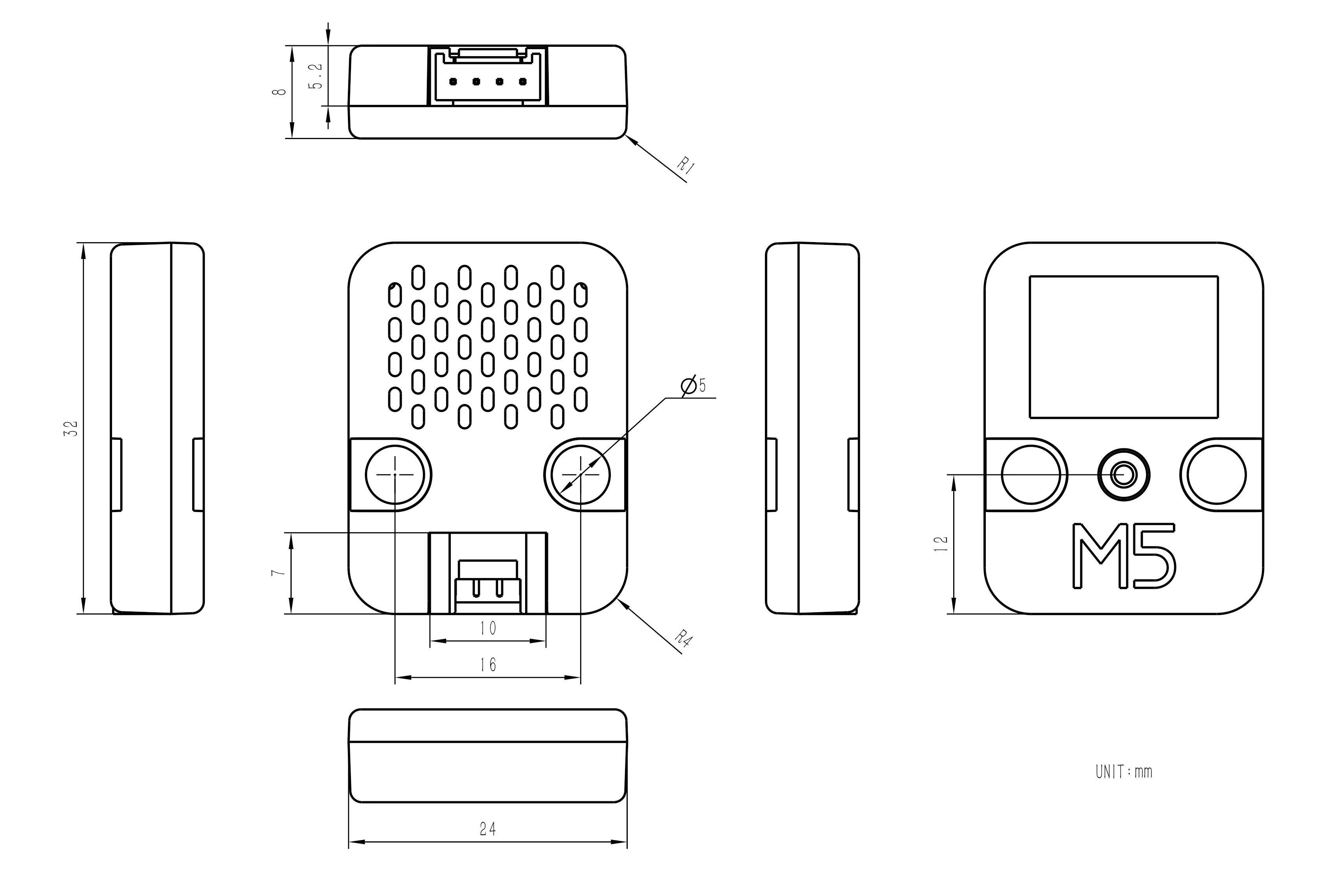

Model Size
Package Includes:
- 1 x Unit ENV-III
- 1 x HY2.0-4P Grove connection cable (20cm)
