LP24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector

CNLINKO

No reviews yet Write a Review
SKU:
131-LP-24-J/RJ45/213/SX-43-401
MPN:
LP-24-J/RJ45/213/SX-43-401
LP-24-J/RJ45/213/SX-43-401 - LP24-RJ45 Series RJ45 Female Socket IP67 Waterproof Signal Connector - Linko Electric
Quantity
Unit Price (ex. GST)
1 - 9
₹ 390.00
10 - 24
₹ 351.00
25 or above
₹ 312.00
The LP24 RJ45 Series is a waterproof signal connector with an IP67 rating, offering reliable data transmission in harsh environments. It features an RJ45 female socket for secure connections. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹460.20 inc. GST
₹390.00 ex. GST
15 people looking at this.

Technical Specifications

Brand:
CNLINKO
Operating voltage:
42V
Working temperature:
-25~85C, 85% RH Max
Insulation Resistance:
500Mohm
Contact Resistance:
40mohm
Durability:
750 cycles
Protection Level:
IP67
Insertion force:
22.25N Max
Rated current:
1.2A
Withstanding Voltage:
1000V
Gender:
Female
Modular Interface:
RJ45
Standard:
Cat5e

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

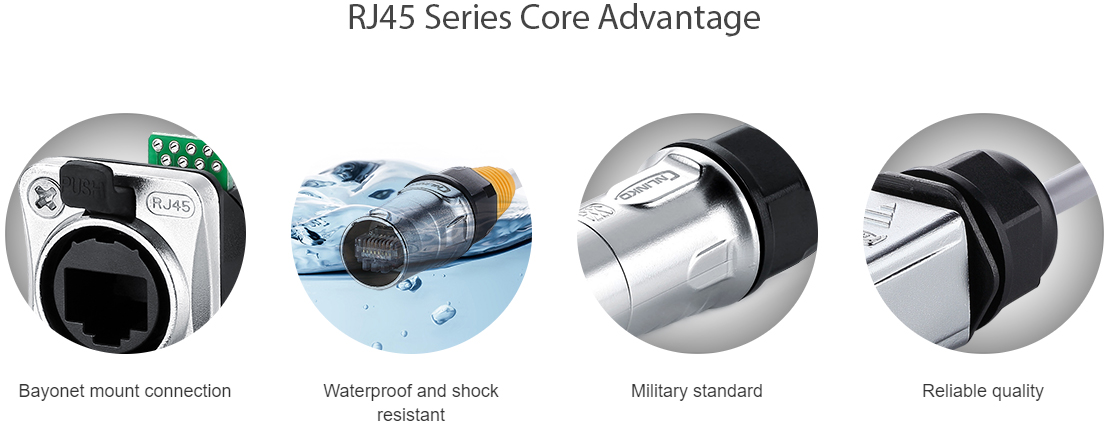

The RJ45 series connectors have multi-style connecting modes like 1/4 bayonet connect and quick plug-unplug applicable for harsh environments. Cable jacket with solid die-casted shell and unique dual-clip-clip wire saddle and sheath of cable applicable for common RJ45 plugs with electroplated shell against wind and rain. These connectors have a shielding system with high-frequency noise immunity and electromagnetic interference protection and protection level IP65 waterproof and dustproof. Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBit/s.

For the mating part, please click here
