LoRaWAN Enabled ESP32 S3 Development Board With Integrated Display For Long Range IoT Prototyping
The LoRaWAN ESP32 S3 development board with display is a professional grade platform designed for developers working on long range wireless communication and smart home IoT systems. Built around the ESP32 S3 microcontroller it combines strong processing capability with LoRa based connectivity enabling reliable communication over long distances with low power consumption.
This board offers comprehensive protocol support including LoRa LoRaWAN and Meshtastic and integrates smoothly with the Home Assistant ecosystem. An onboard display enhances usability by allowing real time data visualisation device status monitoring and interactive debugging. With a developer friendly hardware layout and rich connectivity options it provides an efficient and scalable solution for IoT prototyping field testing and smart home integration.
Key Features
- ESP32 S3 High Performance Core
Supports advanced IoT logic local processing and user interface control
- LoRa And LoRaWAN Protocol Support
Enables long range low power wireless communication
- Meshtastic Compatibility
Suitable for decentralised mesh communication networks
- Integrated Display Interface
Allows real time data display and system status monitoring
- Home Assistant Integration Ready
Designed for seamless use in smart home and automation ecosystems
Comprehensive Support for LoRa/LoRaWAN/Meshtastic Communication Protocols with Strong Communication Compatibility
The LoRaWAN ESP32-S3 Development Board supports LoRa one-to-one communication, LoRa one-to-many communication, the standard LoRaWAN protocol, and the Meshtastic network protocol. It allows for flexible connection between development boards and incorporation into LoRaWAN networks. The board's programming interface is Arduino, and it includes simple library files and code samples. There is no need for extensive understanding of LoRa/LoRaWAN communication protocols to use it, which significantly reduces the entrance barrier.
Support for Integration with HomeAssistant (ESPHome) to Expand Long-Range Communication Capabilities
The LoRaWAN ESP32-S3 Development Board can be incorporated into HomeAssistant via ESPHome, acting as a system's "long-range communication expansion unit". It successfully overcomes standard wireless communication's distance constraints, improves signal coverage and transmission stability in complicated contexts (such as multi-story buildings, huge households, and outdoor scenarios), and increases the deployment range of smart home devices.
Rich Functions and High Usability, Significantly Improving Testing Efficiency
The LoRaWAN ESP32-S3 Development Board's functional design is based on "high efficiency and ease of use". High hardware integration greatly decreases test preparation time and device connection complexity:
Visual Operation and Data Viewing: It has a 0.96-inch LCD screen and physical controls. Without the need for external devices, you may view crucial information such as device operating statistics and communication status in real time. At the same time, you may rapidly switch between display interfaces using the buttons, making operation simple and convenient.
Portable Battery Life with No Power Constraints: A specific lithium battery interface is built, and a charging function is integrated to accommodate an external lithium battery power supply. Whether it is utilized for indoor desktop testing or outdoor mobile scenarios, it eliminates the limitation of a fixed power supply, making application scenarios more versatile.
Easy-to-Use IO Interfaces for Effortless Sensor Connection: It includes easy IO interfaces that allow direct connection to a variety of sensor devices, including temperature and humidity sensors, light sensors, and human motion sensors, without the need for soldering. This eliminates the arduous wiring and soldering work required during project setup, allowing for the fast creation of project prototypes.

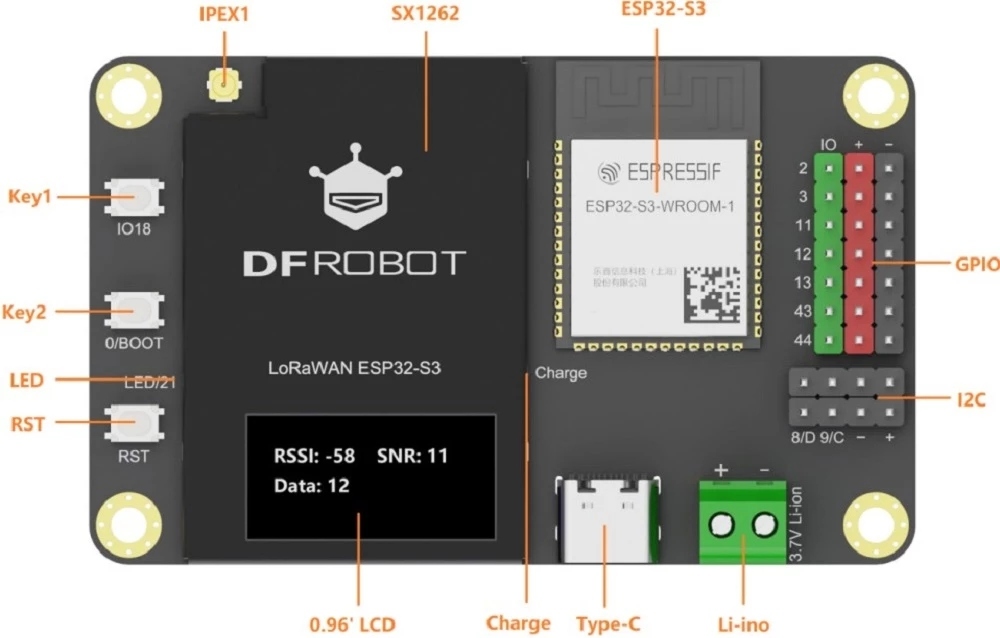

Figure: Overview of ESP32-S3 LoRaWAN development board

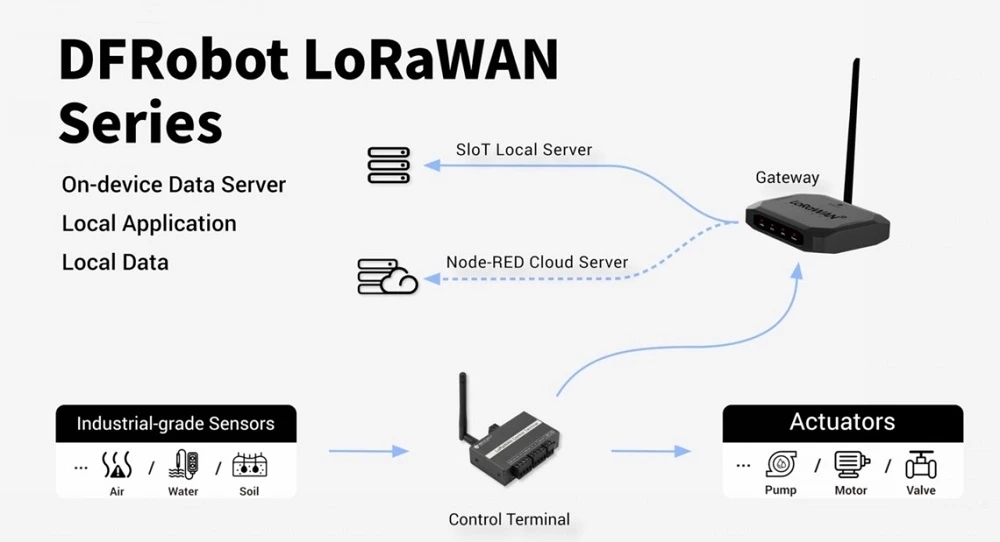

DFRobot LoRaWAN Series
The DFRobot LoRaWAN product series focuses on "simplified development and efficient deployment," addressing situations such as learning, development, testing, and deployment while also providing developers with comprehensive low-power wide-area network (LPWAN) solutions.
- Gateway: Embedded local MQTT server (SIoT) avoids the requirement for server configuration; supports Node-RED graphical programming for quick automation job creation.
- Control Terminal: The multi-interface architecture (analog/digital input, RS485, relays) allows for both data acquisition and device control; it offers custom control rules and robust offline operation without network connectivity.
- Development Board: Compatible with the Arduino ecosystem, with pre-built libraries and example code for a quick start; includes a screen, buttons, and other peripherals for real-time debugging without the need for external devices.
- Node Module: Built-in LoRa/LoRaWAN protocol stack, support multi-platform graphical programming; supports standard I2C/UART interfaces, compatible with mainstream controllers such as Micro:bit, Arduino, and ESP32.
Applications
- LoRa/LoRaWAN Network Deployment and Debugging: View LoRaWAN network signals and communication status on the development board screen for testing, allowing for quick network setup and correction.
- Smart Home Expansion for Large Residences/Villas: In multi-story villas or houses with cross-courtyards, it easily connects garden sensors, garage devices, and indoor control systems, eliminating signal interruption caused by wall barriers and allowing for unified management of all household devices.
- Scenarios for Outdoor Environmental Monitoring: It can be installed on balconies, rooftops, or courtyards and is equipped with sensors such as temperature and humidity sensors as well as PM2.5 sensors. It sends data back to the HomeAssistant system in real time via long-range communication and communicates with air conditioners and fresh air devices to automatically change the home atmosphere.
- Remote Management for Agriculture and Horticulture: It connects soil moisture and light sensors in vegetable gardens, greenhouses, and orchards. Even from hundreds of meters away, you may monitor crop growth in real time and set the irrigation system to operate automatically.
- Meshtastic Chat Device: In outdoor circumstances with weak or no network signals, such as isolated places, mountain hikes, forest adventures, and desert crossings, it employs the Meshtastic protocol to create a decentralized radio communication network that allows for real-time text message transmission.
Package Includes:
- LoRaWAN ESP32-S3 Development Boardx1
