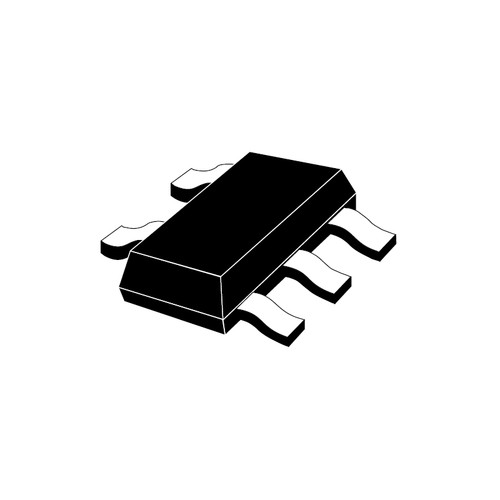

Name: LM2733XMF/NOPB - Boost Switching Regulator IC 1A SOT-23-5
Brand: Texas Instruments
SKU: 035-LM2733XMF-NOPB
Price: 110.08 INR
Availability: InStock

Technical Specifications

Brand:

Texas Instruments

Case/Package:

SOT-23

Mount:

Surface Mount

Number of Pins:

Frequency:

1.6 MHz

Max Input Voltage:

14 V

Max Operating Temperature:

125 C

Max Output Voltage:

40 V

Min Input Voltage:

2.7 V

Min Operating Temperature:

-40 C

Min Output Voltage:

3 V

Number of Channels:

Number of Outputs:

Operating Supply Current:

1.1 mA

Operating Supply Voltage:

14.5 V

Output Current:

1.5 A

Output Voltage:

40 V

Switching Frequency:

1.6 MHz

Full Reel Quantity:

1000

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

LM2733XMF/NOPB – 1A, 40V High-Frequency Boost Switching Regulator IC

The LM2733XMF/NOPB is a compact, high-efficiency current-mode boost DC-DC converter designed to provide powerful performance in space-constrained applications. Operating at a fixed frequency of 1.6MHz, this “X” version enables the use of small inductors and capacitors, reducing board space while maintaining excellent power conversion efficiency. Featuring an internal 40V, 1A switch, the LM2733XMF/NOPB delivers outstanding power density and is ideal for designs requiring boosted output voltages of 16V or higher.

The device’s SOT-23-5 package and minimal external component requirements make it perfect for compact, high-performance power designs such as portable electronics, sensor modules, and communication systems. The logic-level shutdown pin enables ultra-low quiescent current, extending battery life in energy-sensitive applications. Built-in cycle-by-cycle current limiting and thermal shutdown protection ensure reliable operation even under overload or fault conditions. Internal compensation simplifies circuit design, making the LM2733XMF/NOPB a cost-effective and easy-to-implement high-frequency boost solution.

Key Features

High Switching Frequency: Operates at 1.6MHz for smaller external components and compact design.
Integrated 40V, 1A Power Switch: Delivers high power density and supports boosted outputs ≥16V.
Current-Mode Control: Provides excellent line and load transient response.
Internal Compensation: Simplifies design and minimizes external component count.
Logic-Level Shutdown Pin: Reduces quiescent current for improved battery efficiency.
Cycle-by-Cycle Current Limit: Prevents inductor overcurrent and enhances system reliability.
Thermal Shutdown Protection: Safeguards device from excessive heat and overload conditions.
Wide Application Range: Ideal for portable electronics, industrial sensors, and DC power conditioning.
Compact SOT-23-5 Package: Ensures high power density and efficient PCB utilization.
