Technical Specifications
Brand:
Waveshare
GNSS:
GPS/GLONASS/BDS/QZSS
Chip Platform:
AT6558R
L1 Band Receiver (Channels):
32 tracking ch/ 72 acquisition ch
L1 Band Receiver SBAS:
N/A
A-GNSS:
Support
Sensitivity （Acquisition）:
-148dBm
Sensitivity (Re-acquisition):
-160dBm
Sensitivity (Tracking):
-162dBm
TTFF (Time to first fix) Cold starts:
30s, Autonomous 5.5s, With AGNSS
TTFF (Time to first fix) Hot starts:
2s
Position Accuracy:
2.0m CEP
Speed Accuracy:
0.1m/s
Acceleration Accuracy(Max):
0.1m/s2
Timing Accuracy:
30ns

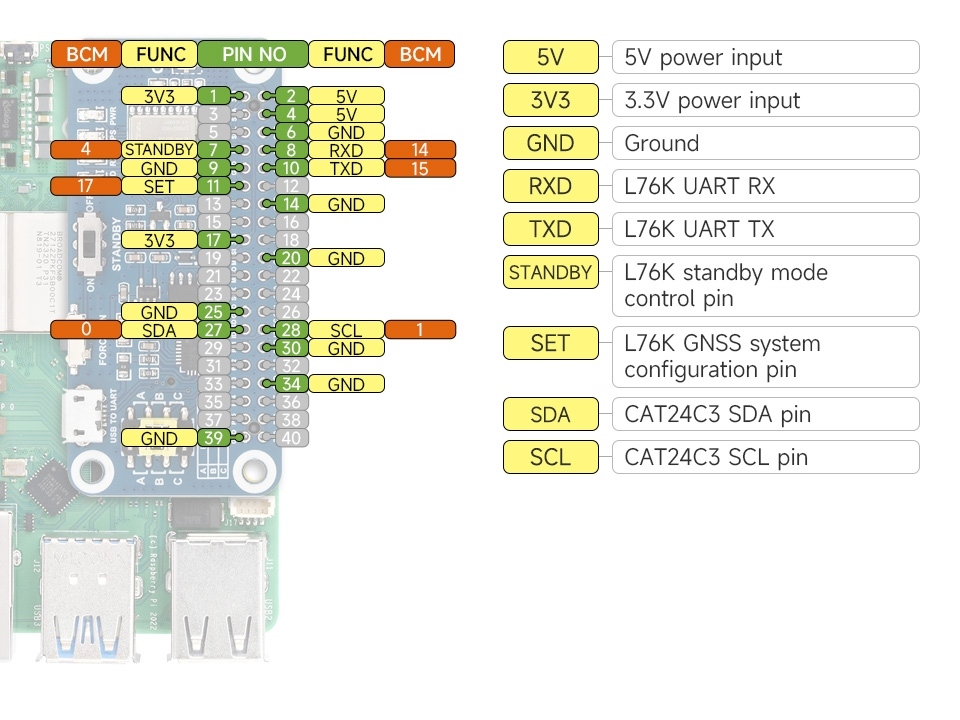

Communication Interface:
UART
Baudrate:
4800~115200bps (9600bps by default)
Update Rate:
1Hz (default), 5Hz (max)
Power Supply Voltage:
5V
Overall Current Consumption:
< 55mA 5V (Continue mode)
Protocols:
NMEA 0183, CASIC Proprietary Communication Protocol
Operating Temperature:
-40C ~ 85 C

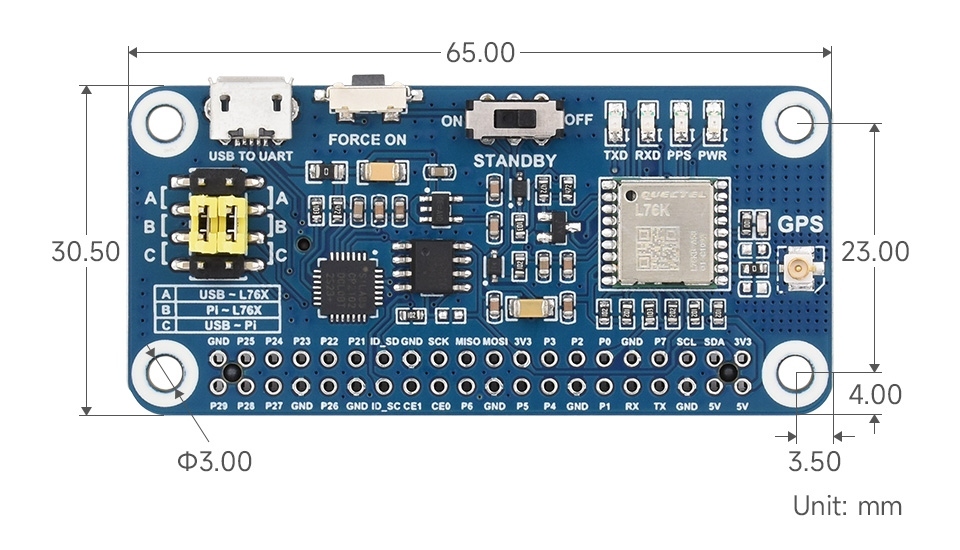

Dimensions:
65.00x30.50 (mm)
