Jetson Orin Nano / NX Super Base Board HDMI Version

Resources:

Wiki: www.waveshare.com/wiki/JETSON-ORIN-IO-BASE-H

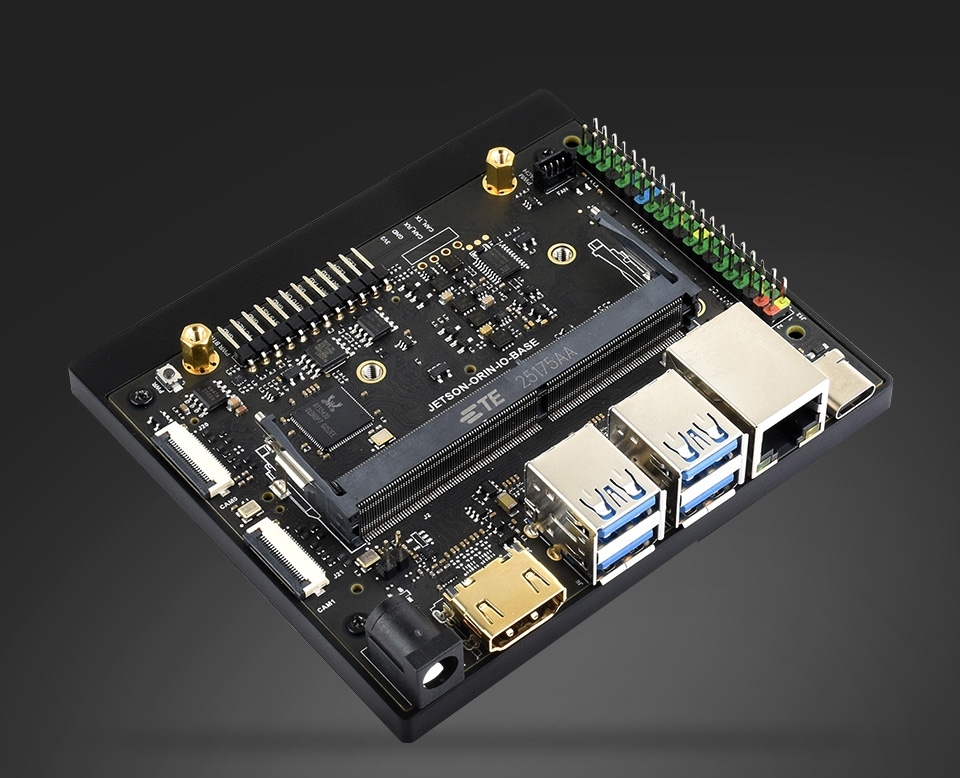

Waveshare Jetson Orin Nano/NX Super Base Board HDMI AI Module

The Waveshare Jetson Orin Nano/NX Super Base Board HDMI Version is a powerful and versatile carrier board designed to fully support NVIDIA Jetson Orin Nano and Jetson Orin NX AI modules. Engineered for edge AI, computer vision, and high-performance embedded applications, this base board is compatible with the official Jetson Orin Nano Super Developer Kit form factor, ensuring seamless integration and easy upgrades. With HDMI display output and rich peripheral expansion, it provides a stable and efficient hardware foundation for deploying AI inference, robotics, automation, and intelligent vision systems in both development and production environments.

Key Features

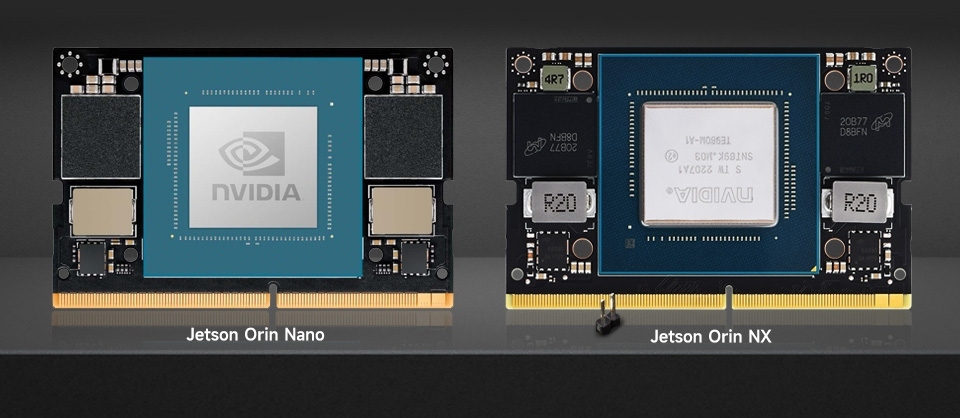

• Jetson Orin Nano/NX Compatibility – Supports NVIDIA Jetson Orin Nano and Orin NX AI modules

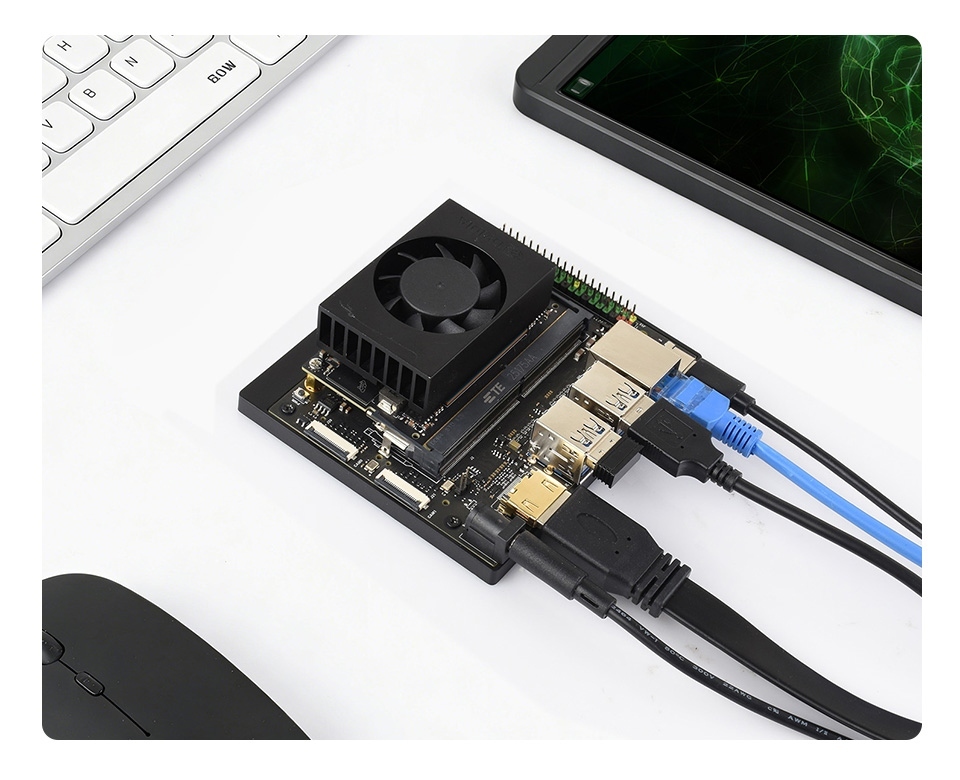

• HDMI Display Output – Enables direct connection to monitors for visualisation and debugging
• Super Developer Kit Compatible – Matches the base board design of the official Jetson Orin Nano Super Developer Kit
• High-Performance AI Platform – Ideal for edge AI inference, deep learning, and computer vision workloads
• Rich Expansion Interfaces – Supports multiple peripherals for cameras, storage, networking, and I/O
• Stable and Reliable Design – Suitable for continuous operation in embedded and industrial applications
• Compact and Integration-Friendly – Designed for easy system integration and rapid deployment

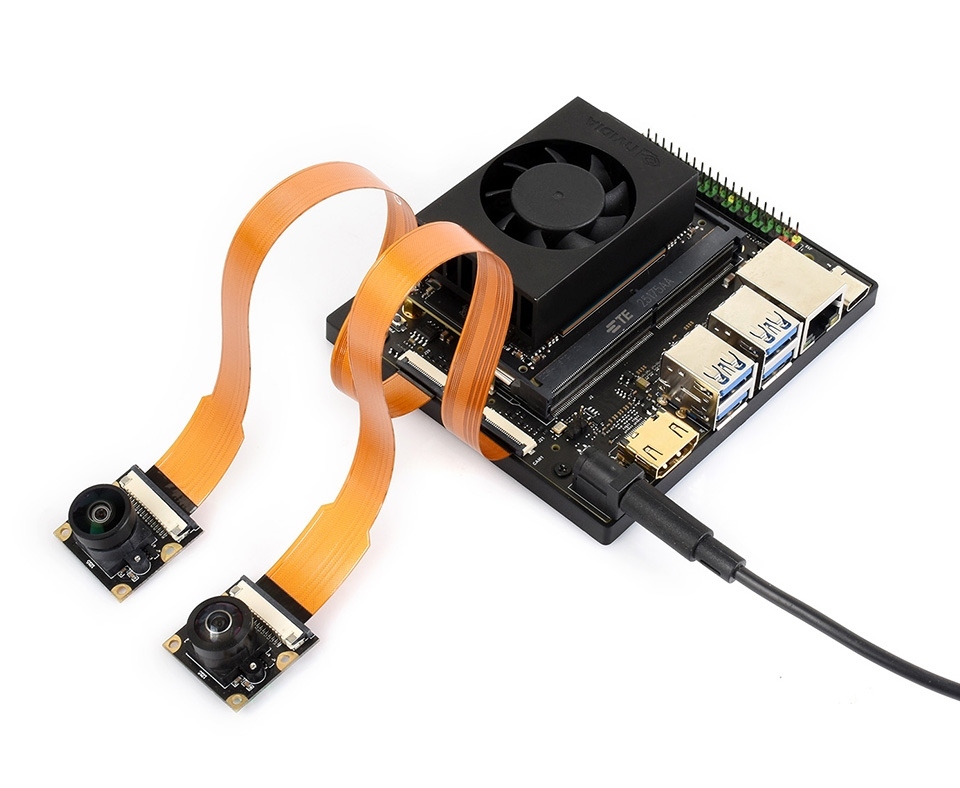

Note: The adapter cables are required for connecting the cameras.

5xUSB Ports



Connects to more peripherals, with USB 3.2 Gen 2 ports capable of data transmission up to 10Gbps and a Type-C connector for system burning.



For reference only, the Orin module and the cooling fan are NOT included.

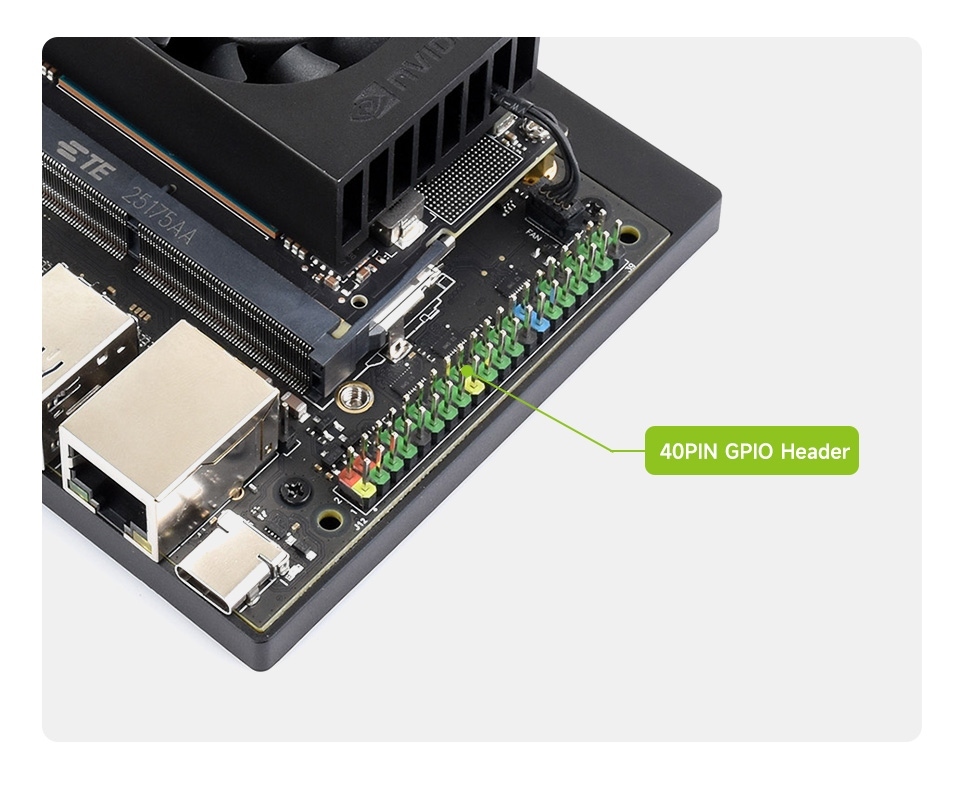

Color-Coded 40PIN GPIO Header



Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, etc.

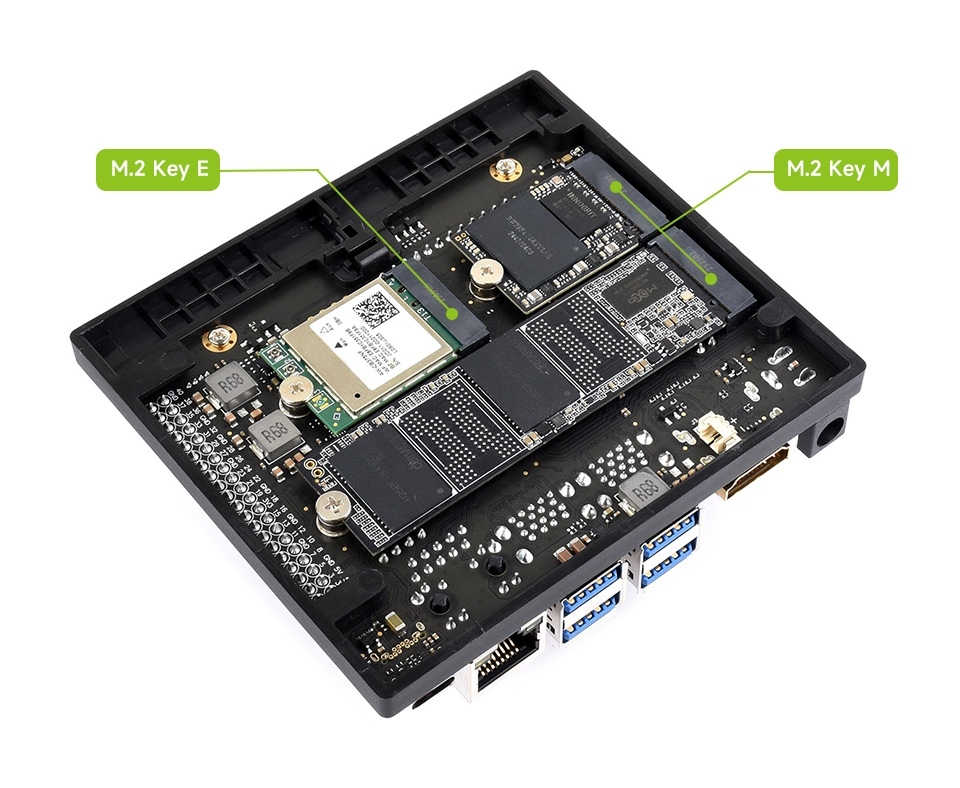

Flexible Storage And Wireless Expansion



Onboard 2XM.2 Key M ports for easy connecting Solid State Drives and 1XM.2 Key E interface for connecting wireless NIC, which can reduce cable connection



For reference only, the Solid State Drive and wireless network card are NOT included.

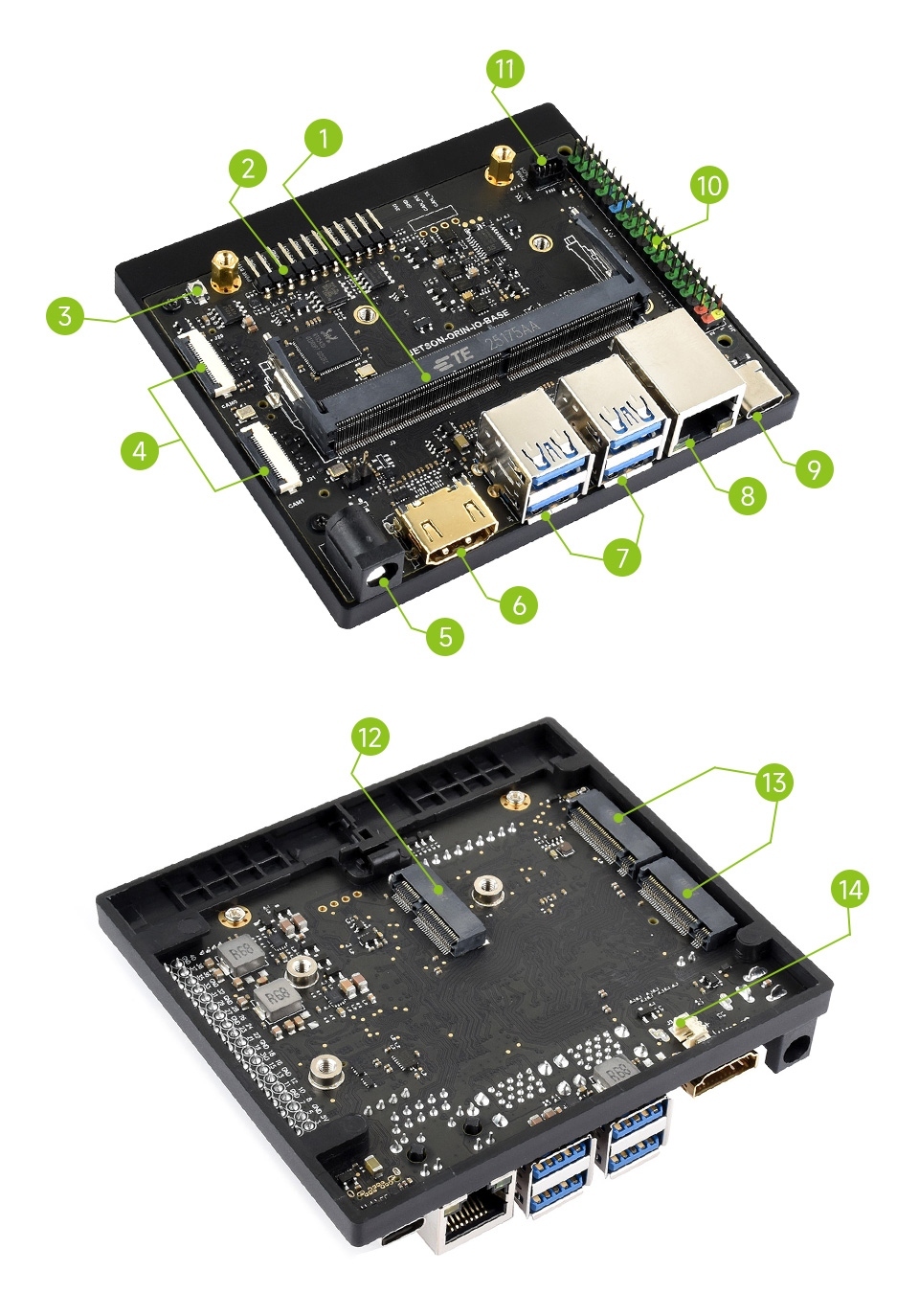

Onboard Resources

1. 260PIN DO-DIMM socket
   for connecting Jetson Orin Nano/NX module
2. 12PIN header
   Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
3. Power button
4. 2 × 22PIN CSI camera interfaces
   2 × MIPI CSI 4-lane camera interfaces
5. DC Power jack
   Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
6. HDMI display interface
   HDMI output
7. 4 × USB 3.2 Gen2 Type-A ports
   Supports up to 10Gbps data transmission
8. RJ45 Gigabit Ethernet port
9. USB Type-C port
   for system burning and data communication
10. 40PIN header
11. 4PIN PWM fan header
12. M.2 Key E
    for connecting wireless NIC
13. 2 × M.2 Key M
    for connecting NVME solid state drives
14. RTC backup battery header
    PH1.25 2PIN

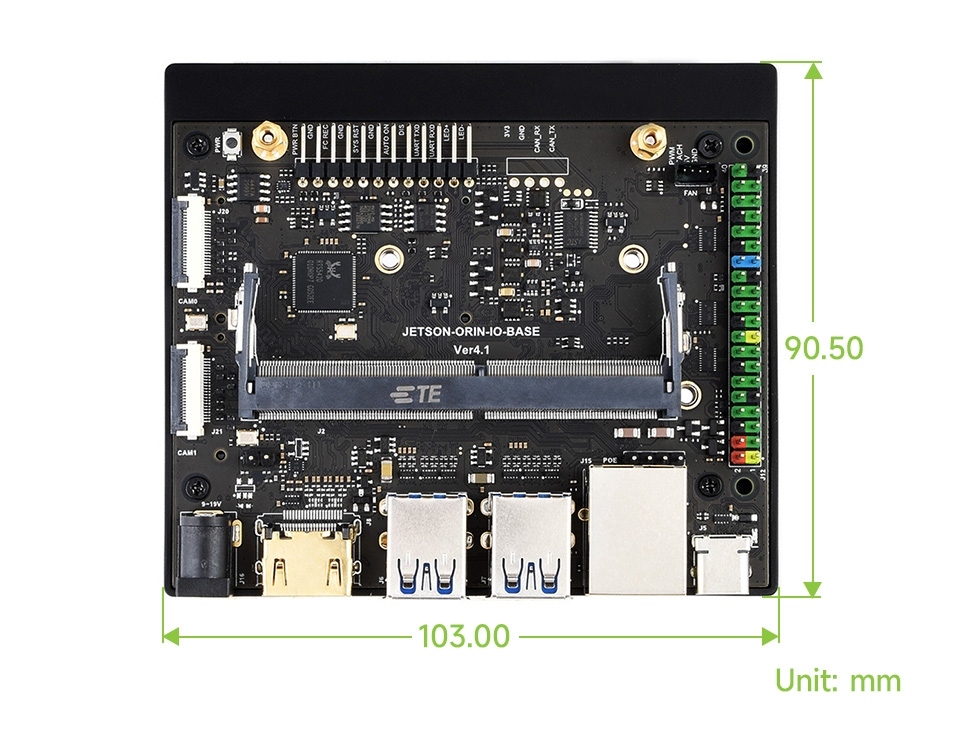

Dimensions



Package Includes:



1. JETSON-ORIN-IO-BASE-H x1
2. Screws pack x1
