IMX577 12MP USB Camera 3840x3024 113 FOV Distortion-Free Plug and Play

Resources:

Wiki: www.waveshare.com/wiki/IMX577_12MP_USB_Camera_(A)

IMX577 12MP USB Camera 3840x3024 113 FOV Distortion-Free Plug and Play

The IMX577 12MP USB Camera is a high-performance imaging solution designed for precision vision applications requiring wide-angle coverage without image distortion. Powered by the Sony IMX577 CMOS sensor, it delivers ultra-high-resolution images up to 3840x3024 with excellent clarity and colour accuracy. Featuring a wide 113° field of view with distortion-free optics, this camera ensures accurate scene representation, making it ideal for machine vision, robotics, surveillance, and AI vision systems. With USB UVC plug-and-play support, it requires no additional drivers and offers seamless compatibility with PCs and embedded platforms, enabling fast deployment and reliable operation.

Key Features

• Sony IMX577 CMOS Sensor – High-quality 12MP sensor for sharp, detailed image capture
• Ultra-High Resolution Imaging – Supports up to 3840x3024 for professional vision applications
• Wide 113° Field of View – Captures a broad scene area with minimal perspective distortion
• Distortion-Free Optical Design – Ensures accurate image geometry for measurement and analysis tasks
• USB Plug-and-Play Interface – UVC compliant for driver-free operation
• High Image Fidelity – Delivers consistent colour reproduction and clarity across the frame
• Wide Platform Compatibility – Works with PCs and embedded vision systems
• Compact and Reliable Design – Suitable for continuous operation in industrial and AI environments.

12MP Resolution





Distortion-Free



Equipped with a distortion-free lens with a distortion rate of less than -1.5%, delivering undistorted imaging and more accurate reproduction of real-world scenes

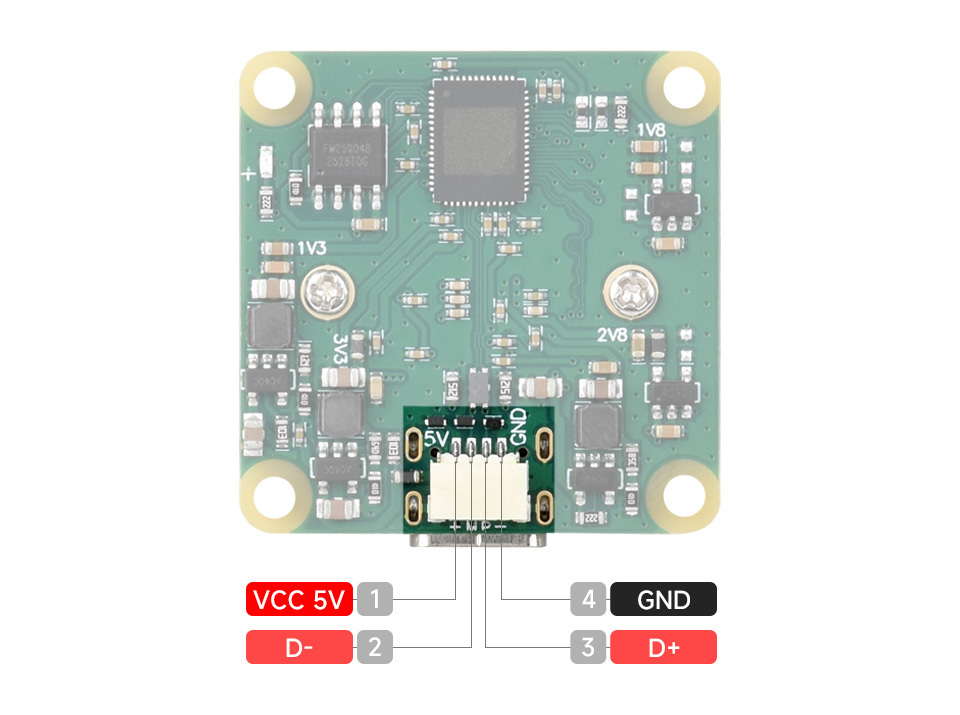

Pinout Definition

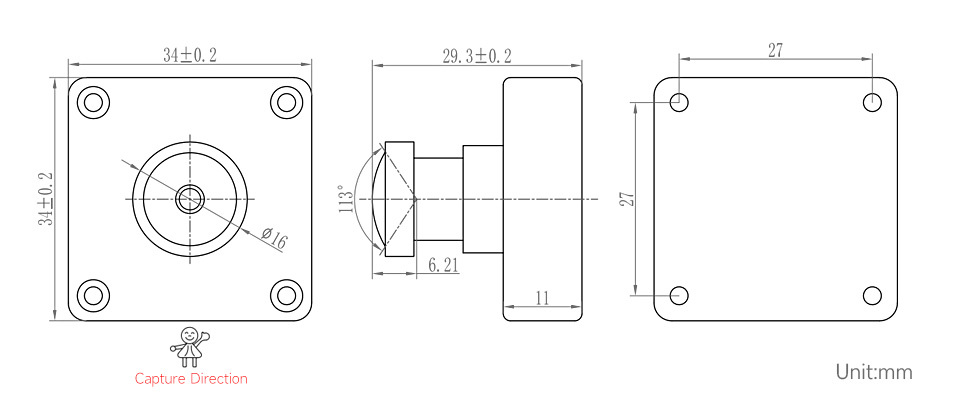

Dimensions



Package Includes:



1. IMX577 12MP USB Camera (A) + dust cap x1
2. SH1.0 4PIN dual plug cable x1
