Microscope Camera Module For AI Assisted Microscopic Imaging With HUSKYLENS 2
HUSKYLENS 2 Microscope Camera Module is a dedicated optical accessory designed to extend the capabilities of the HUSKYLENS 2 AI vision sensor into the microscopic domain. By using a specialised six millimetre focal length lens this module provides up to thirty times magnification transforming HUSKYLENS 2 into a smart digital microscope suitable for high precision visual analysis.
The module delivers high resolution two megapixel imaging using the GC2093 sensor and achieves a minimum resolvable line width of approximately three micrometre. Combined with the on device AI processing of HUSKYLENS 2 it enables not only microscopic observation but also intelligent identification and analysis of fine structures. This makes it ideal for automated biology inspection tasks microscopic quality control and advanced technology education.
Key Features
- Thirty Times Optical Magnification
Enables detailed observation of microscopic structures and fine features
- Optimised Six Millimetre Focal Length Lens
Designed specifically for close range high precision imaging
- High Resolution Two Megapixel Imaging
Uses GC2093 image sensor for clear and detailed microscopic visuals
- AI Compatible Optical Module
Works seamlessly with HUSKYLENS 2 on device AI algorithms
- Supports Advanced Scientific And Educational Use
Suitable for biology inspection quality control and interdisciplinary learning
Enable AI-Powered Microscopic Identification
This microscope lens attachment goes beyond just observation. It enables the HUSKYLENS 2 to use machine vision techniques such as object detection, tracking, and classification on the microscopic level. Instead of simply watching a cell, the system can be trained to recognize and respond to specific types of cells, microorganisms, or material structures, thereby automating complex observation activities.
High Magnification and Resolution Imaging
This high-resolution lens provides about 30x magnification, making previously undetectable details visible and distinct. It uses a 2-megapixel GC2093 sensor and has a high system spatial resolution of 161 lp/mm. This precision enables it to resolve line widths as small as 3 μm (USAF 1951, Group 7, Element 3), important for differentiating microscopic details in biological samples, electronics, or material surfaces.

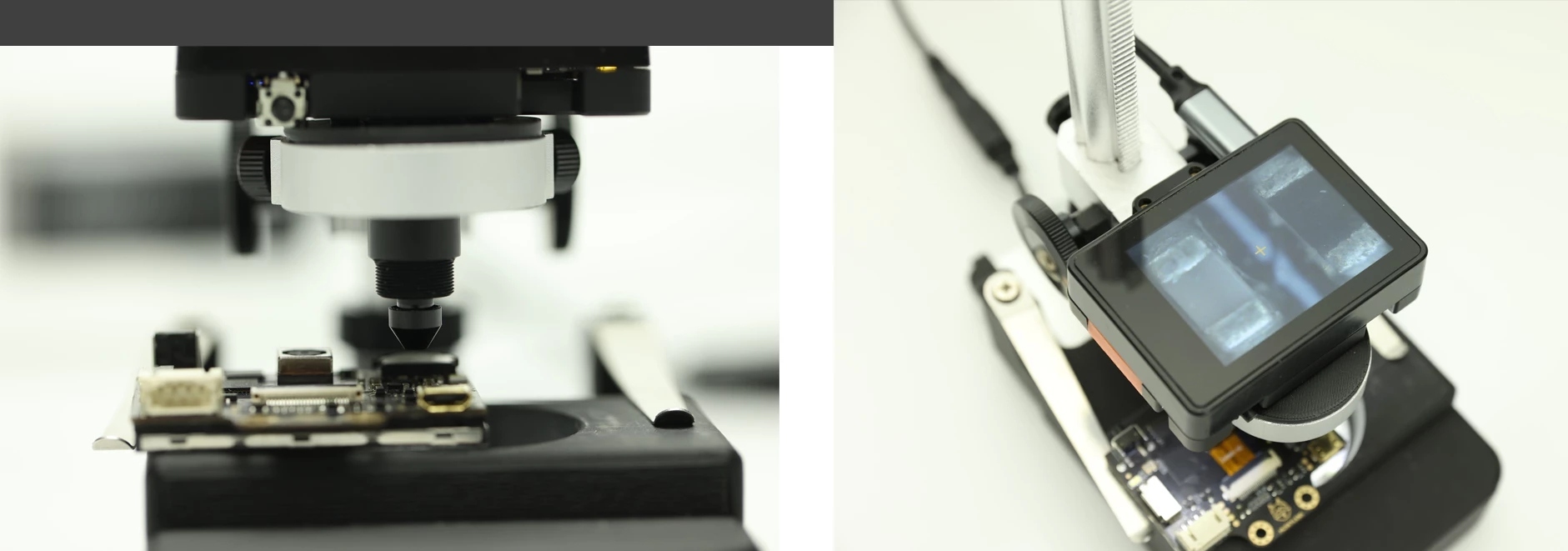

Figure: Observing electronic components with the HUSKYLENS 2 Microscope Camera Module
Seamless Integration for HUSKYLENS 2
As an approved accessory, the lens is designed for a perfect fit and optimal performance with the HUSKYLENS 2. This all-in-one, integrated design makes setup simple, allowing makers and educators to instantly update their existing sensors into a powerful, small AI microscope without complex assembly or third-party calibration.

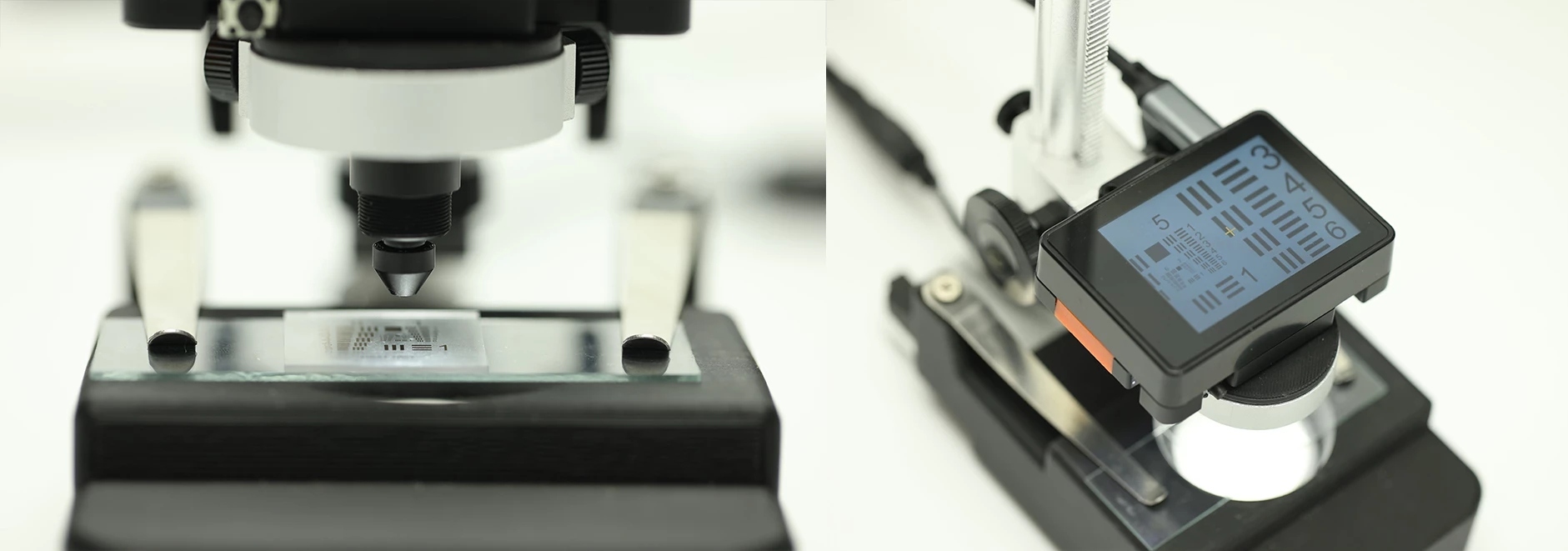

Figure: Observing a magnification card with the HUSKYLENS 2 Microscope Camera Module

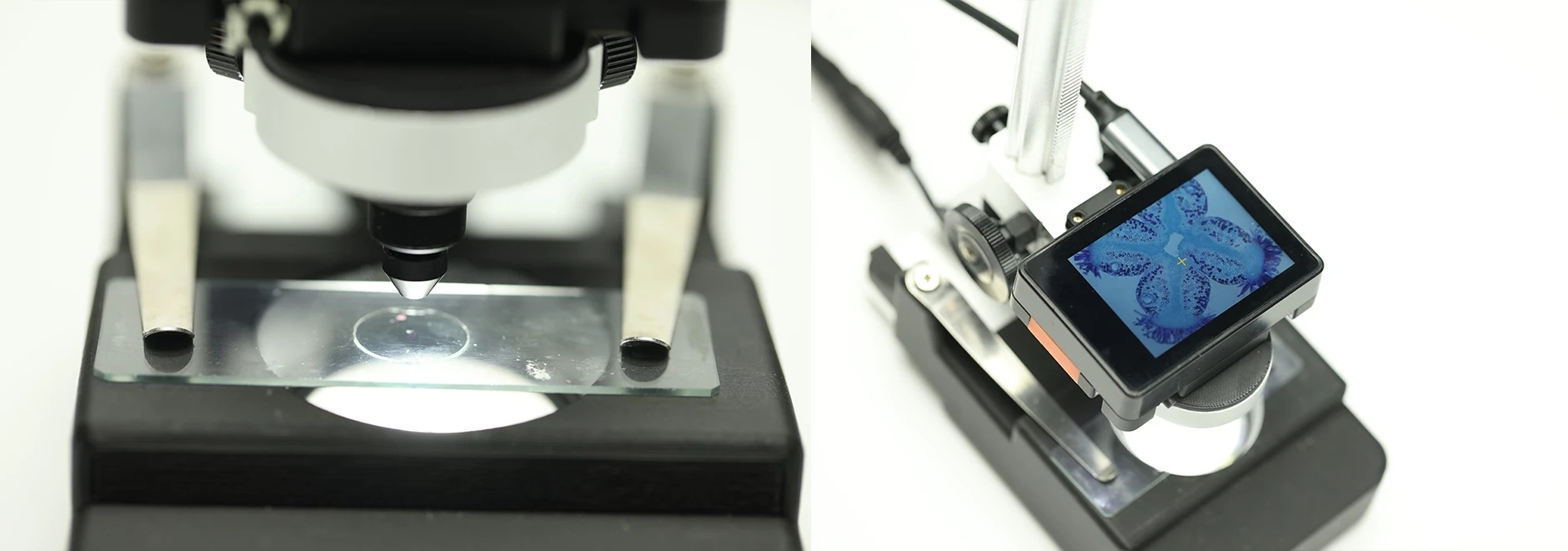

Figure: Observing cells with the HUSKYLENS 2 Microscope Camera Module
Packaging Includes:
- HUSKYLENS 2 Microscope Camera Modulex1
- Small Phillips Screwdriverx1
