Name: HDL662SZ5 USB Adapter Board for 05W Series COF Screens
Brand: DWIN
SKU: 353-HDL662SZ5
Price: 761.1 INR
Availability: InStock

Technical Specifications

Brand:

DWIN

Dimensions:

63.90mm (W)x40.60mm (H) x9.40mm (T)

User interface:

For power supply and easy PC simulation and debugging

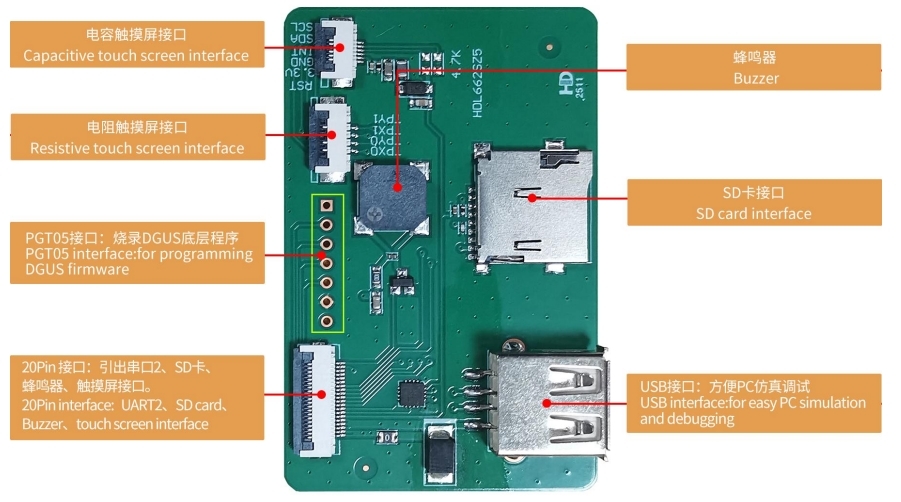

20Pin Interface:

For connecting FCC20_0.5 L=50mm, lead out UART2, SDcard,buzzer, touch screen interface.

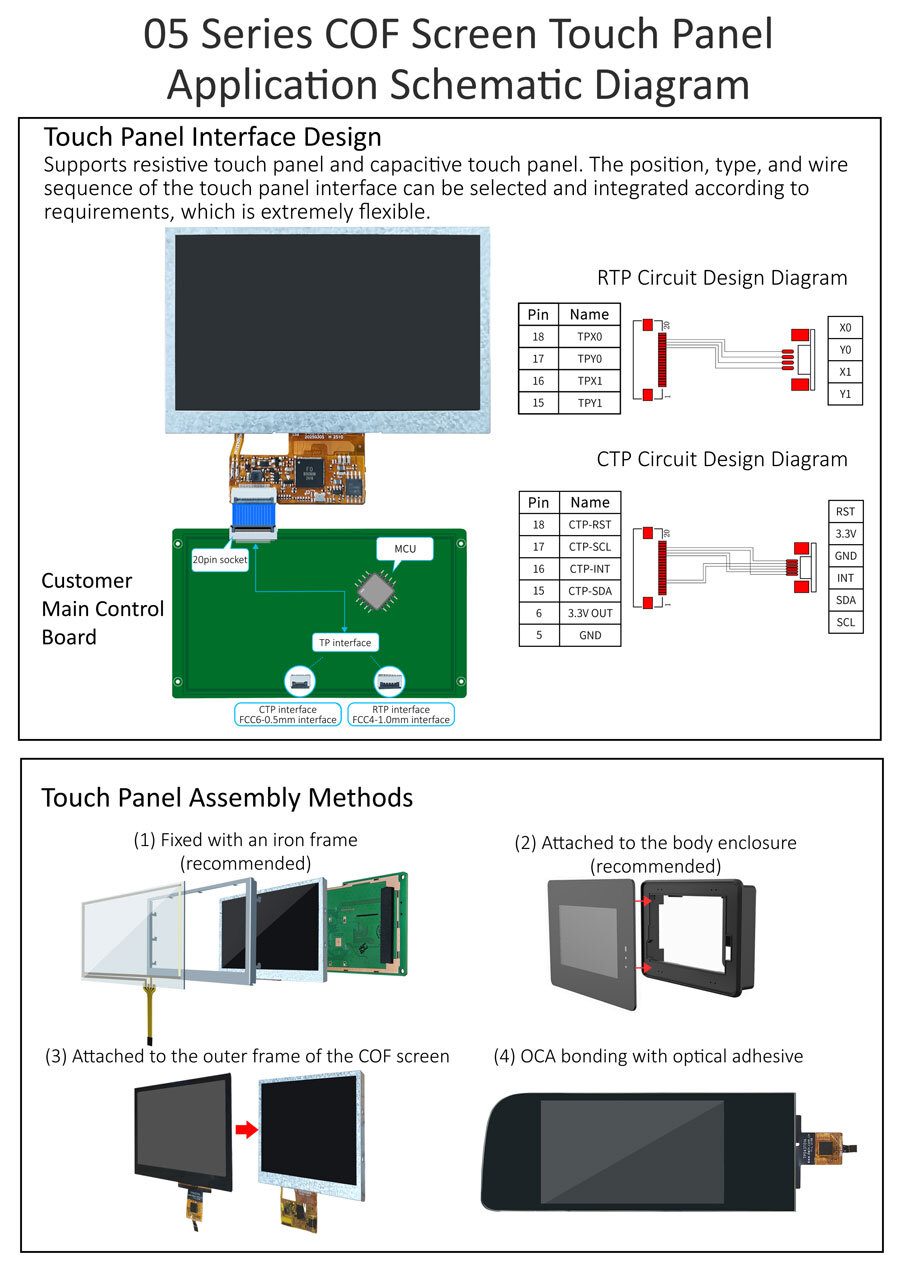

Capacitive Touch Interface:

For connecting capacitive touch screen

Resistive Touch Interface:

For connecting 4-wire resistive touch screen

Buzzer:

3V passive buzzer

SD Card Interface:

For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/srate

PGT05 Interface:

For programming DGUS firmware

Serial Interface:

UART2:TTL

Interface Cable:

20Pin_0.5mm

Operating Voltage:

3.3~5.5V, typical value of 5V

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

HDL662SZ5 USB Adapter Board for 05W Series COF Screens – DGUS HMI Display Control Module | DWIN Technology

The DWIN HDL662SZ5 is a compact and efficient HMI control core board designed for DGUS II-based display systems. It features built-in UART communication, SD card interface, and both capacitive and resistive touch support. This module simplifies UI development and enables stable display control for embedded and industrial systems.

Operating on 3.3V to 5.5V DC with a typical 5V supply, the HDL662SZ5 offers low power consumption (<5W), and easy connectivity through its 20-pin 0.5mm FFC interface. It supports DGUS project downloads via SD card (4Mb/s) and provides UART2 (TTL level) communication for display data exchange, debugging, or integration with microcontrollers and embedded CPUs.
