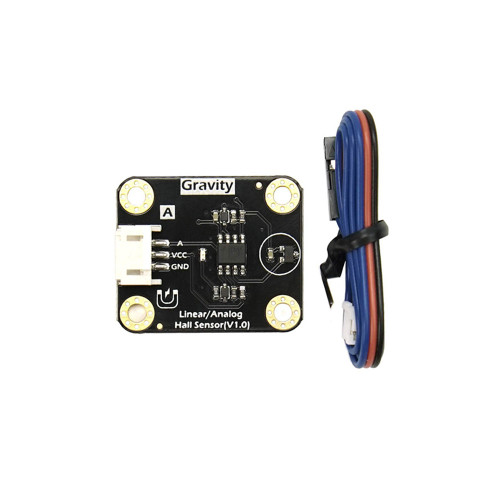

Name: Gravity: Linear / Analog Hall Effect Sensor ±1200 GS Magnetic Field Range
Brand: DFRobot
SKU: 147-DFR1132
Price: 287.92 INR
Availability: InStock

Technical Specifications

Brand:

DFRobot

Operating Voltage:

3.3-5.5V DC

Magnetic Field Range:

±1200 GS

Detection Distance:

＜1cm

Data Type:

Analog

Interface Type:

PH2.0-3P

Dimension:

27x32mm

Weight:

3.5g (total weight including packaging and sensor cable is 12g)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

Precision Magnetic Field Detection: Elevate Your Projects with Unmatched Accuracy

Gravity: Linear/Analog Hall Effect Sensor ±1200 GS Magnetic Field Range is your go-to high-precision device for measuring and monitoring magnetic field strength. Utilizing advanced Hall effect circuitry, this sensor converts magnetic induction strength directly into a voltage output, providing accurate and reliable data. Its unique response to magnetic fields makes it indispensable for applications requiring precise magnetic field detection, including industrial control, scientific research, security systems, and various electronic devices.

This sensor's high sensitivity and precise measurements ensure it stands out as a top-tier tool in magnetic field detection. Its robust performance and ease of integration make it a must-have for any project demanding reliable magnetic field data.

Key Features:

Bipolar Sensing: Detects both N (north) and S (south) pole magnetic fields, enhancing application versatility.
Low Noise Output: Integrated circuitry minimizes noise, ensuring clear and accurate readings.
Single Current Source Output: Provides stable output signals, less affected by voltage fluctuations for precise measurements.
On-board Indicator LED: Visual feedback through an LED indicator, simplifying operational status monitoring.
High Compatibility: Seamlessly integrates with various main controllers like Arduino, micro, and UNIHIKER, offering broad platform compatibility.

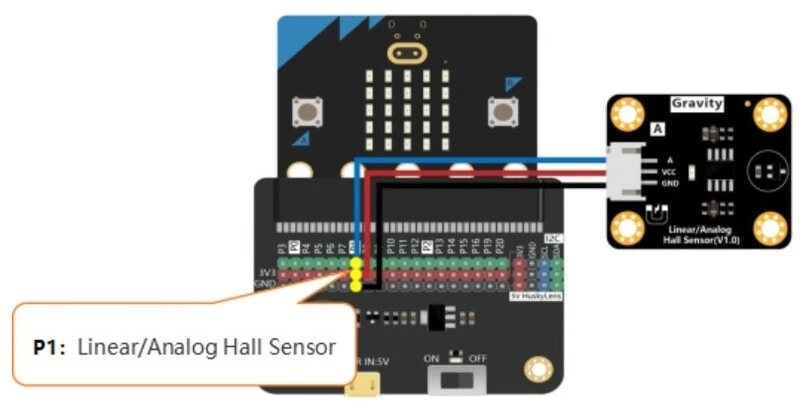

Wiring Diagram of Gravity: Linear/Analog Hall Sensor

Figure: Magnetic Pole Detection System

Applications:

Current Detection: Monitor and measure current with high accuracy.
Motor Control: Achieve precise control in motor applications.
Magnetic Field Detection: Ideal for detecting and measuring magnetic fields.
Metal Detector: Enhance metal detection capabilities with precise sensing.

Maximize your project's potential with the Gravity: Linear/Analog Hall Effect Sensor and experience unmatched precision and reliability in magnetic field detection.
