Gravity: DS18B20 Waterproof Temperature Sensor Kit

Resources:

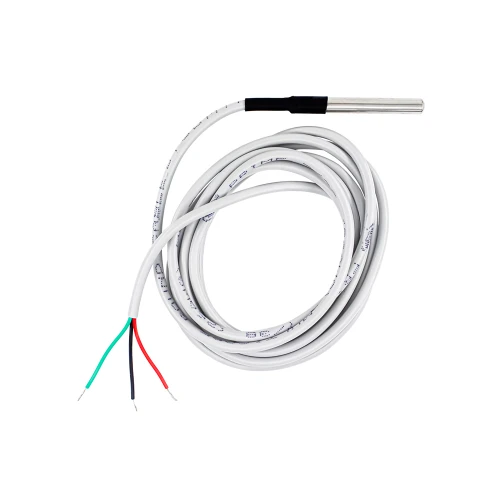

Waterproof DS18B20 Digital temperature sensor
Terminal sensor adapter
Digital sensor cable

Waterproof DS18B20 Digital Temperature Sensor Kit With 1 Wire Interface For Arduino And IoT Projects

The Gravity DS18B20 Waterproof Temperature Sensor Kit is a reliable and easy-to-use temperature measurement solution designed for Arduino, ESP32, Raspberry Pi, and other microcontroller platforms. The kit includes a waterproof DS18B20 digital temperature probe and a dedicated resistor module with a pluggable terminal adapter, enabling quick installation without soldering. Its waterproof construction makes it suitable for liquid temperature monitoring, environmental sensing, and outdoor applications where conventional sensors may not perform reliably.

Based on the DS18B20 digital temperature sensor, the module provides configurable 9-bit to 12-bit temperature readings through a simple 1-Wire communication interface. Only one data line and ground connection are required, significantly simplifying wiring and allowing multiple sensors to operate on the same communication bus. Supporting operating voltages from 3.0V to 5.5V, the sensor is compatible with a wide range of development boards and embedded systems. It is an excellent choice for water quality monitoring, smart agriculture, aquaculture, environmental monitoring, and IoT-based temperature measurement projects.

Key Features

• DS18B20 Digital Temperature Sensor: Accurate digital temperature measurement.
• Waterproof Probe Design: Suitable for liquid and outdoor temperature monitoring.
• 1-Wire Communication Interface: Requires only one data line for communication.
• Configurable Resolution: Supports 9-bit to 12-bit temperature readings.
• Wide Operating Voltage: Compatible with 3.0V to 5.5V systems.
• Arduino Compatible: Easy integration with Arduino development boards.
• Solder-Free Installation: Includes pluggable terminal adapter.
• Gravity Ecosystem Compatible: Simple connection with Gravity expansion boards.
• Supports Multiple Sensors: Multiple DS18B20 sensors can share one bus.
• Reliable Digital Output: Minimizes signal degradation and noise.
• Compact And Easy To Install: Suitable for embedded applications.
• Designed for Long-Term Monitoring: Ideal for continuous temperature measurement.

Applications

• Water temperature monitoring
• Water purifier systems
• Aquaculture monitoring
• Smart agriculture
• Environmental monitoring
• Weather stations
• Industrial temperature sensing
• IoT monitoring systems
• Liquid temperature measurement
• Laboratory equipment
• Home automation projects
• Data logging systems

• Operating voltage: 3.0~ 5.5V
• +-0.5C Accuracy from -10C to +85C
• Usable temperature range: -55 to 125C (-67F to +257F)
• 9 to 12-bit selectable resolution
• Uses 1-Wire interface- requires only one digital pin for communication
• Unique 64-bit ID burned into the chip
• Multiple sensors can share one pin
• Temperature-limit alarm system
• Query time is less than 750ms
• 3-wire interface:

  • Type A
    • Red wire - VCC
    • Black wire - GND
    • Yellow wire - DATA
  • Type B
    • Red wire - VCC
    • Yellow wire - GND
    • Green wire - DATA
• Stainless steel tube 6mm diameter by 35mm(1.34") long
• Cable diameter: 4mm(0.16")
• Length: 90cm(35.43")

• Waterproof DS18B20 Digital temperature sensor (DFR0198)  x1
• Terminal sensor adapter (DFR0055)  x1
• Digital sensor cable (FIT0011)
