Gravity: Analog Water Pressure Sensor

DFRobot

No reviews yet Write a Review
SKU:
147-SEN0257
Manufacturer Part Number:
SEN0257
₹1,982.40 inc. GST
₹1,680.00 ex. GST
₹1,982.40 inc. GST
₹1,680.00 ex. GST
13 people looking at this.

Description

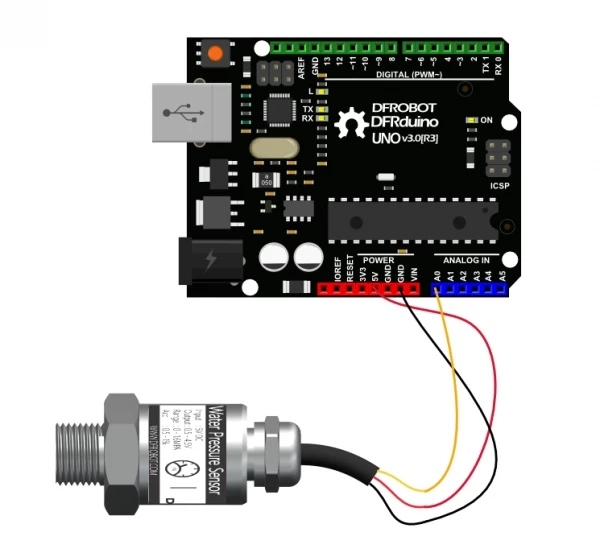

The DFRobot Gravity water pressure sensor is designed to be easily integrated into a variety of projects using the standard 3-pin Gravity interface. It supports a standard 5V voltage input and has a linear voltage output range of 0.5V to 4.5V, making it compatible with multiple Arduino controllers.

As you mentioned, this water pressure sensor can be used as a "stethoscope" to detect the presence and strength of water pressure in a pipe. It can be used in a variety of applications, including smart home control systems, Internet of Things (IoT) projects, and device detections. Its compact size and easy integration make it a useful tool for a wide range of projects.

Features
  • Support water pressure detection of living environmental water systems, such as houses, gardens, and farms.
  • Support water pressure detection of the outdoor environments, such as rivers, lakes, and the sea.
  • Support water pressure detection of tanks;
  • Support liquid level detection in special situation detection in specified liquid
Package Contents
  • Gravity: Analog Water Pressure Sensor x1
  • G1/2 to G1/4 Connector (mounted) x1
Resources


Technical Specifications

Brand:
DFRobot
Medium:
liquid/gas without corrosion
Wiring:
Gravity-3Pin (Signal-VCC-GND)
Pressure Measurement Range:
0~1 Mpa
Input Voltage:
5 VDC
Output Voltage:
0.5~4.5 V
Measurement Accuracy:
0.5%~1%FS (0.5%, 0~55°C)
Threadably:
G1/4
Adapter:
G1/2 to G1/4
Waterproof Level:
IP68
Operating Temperature:
-20~85C
Response Time:
< 2.0 ms
Quiescent Current:
2.8 mA
Normal Operating Pressure:
< = 2.0 Mpa
Damaged Pressure:
> = 3.0Mpa
Service Life:
10’000’000 times
