Gravity: Active Isolated RS485 to UART Signal Adapter Module

Resources:

• Product Wiki

Active Isolated RS485 to UART Converter Module for Reliable Industrial Serial Communication and Embedded Systems

The Gravity Active Isolated RS485 to UART Signal Adapter Module is designed to enable stable and secure communication between RS485 industrial networks and UART-based microcontrollers. With built-in electrical isolation, this module protects connected systems from voltage spikes, noise, and ground loop interference, ensuring safe operation in demanding environments. It is ideal for integrating devices such as PLCs, sensors, and industrial equipment with platforms like Arduino, ESP32, and Raspberry Pi.

Engineered for high-speed data transmission and dependable performance, this module supports efficient long-distance communication over RS485 while maintaining signal integrity. Its compact design and Gravity interface allow quick integration without complex wiring, making it suitable for IoT, automation, and embedded development projects. Whether used in industrial control systems or field communication setups, this adapter provides a robust and reliable serial interface solution.

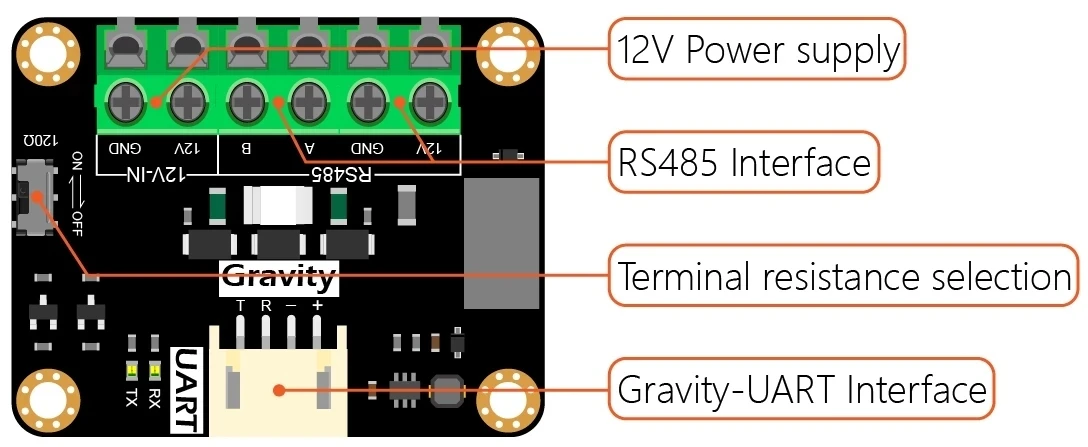

Key Features

• RS485 to UART Conversion: Enables communication between industrial RS485 devices and UART microcontrollers
• Electrical Isolation: Protects against voltage spikes, noise, and ground loops
• High-Speed Communication: Supports fast and stable data transmission
• Reliable Performance: Designed for consistent operation in industrial environments
• Wide Compatibility: Works with Arduino, ESP32, Raspberry Pi, and other UART devices
• Long Distance Communication: Suitable for extended RS485 networks
• Compact Design: Easy integration into embedded systems
• Gravity Interface: Simplifies wiring and deployment

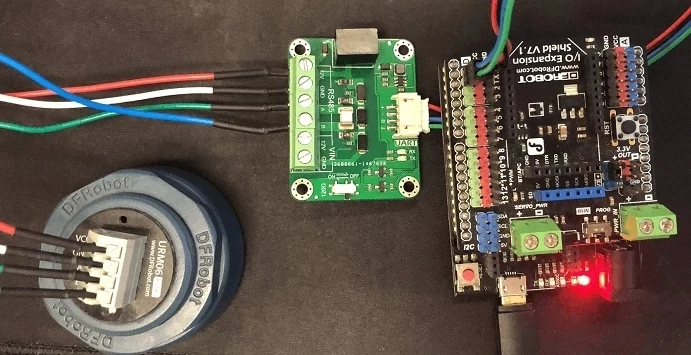

Connect with Arduino Board

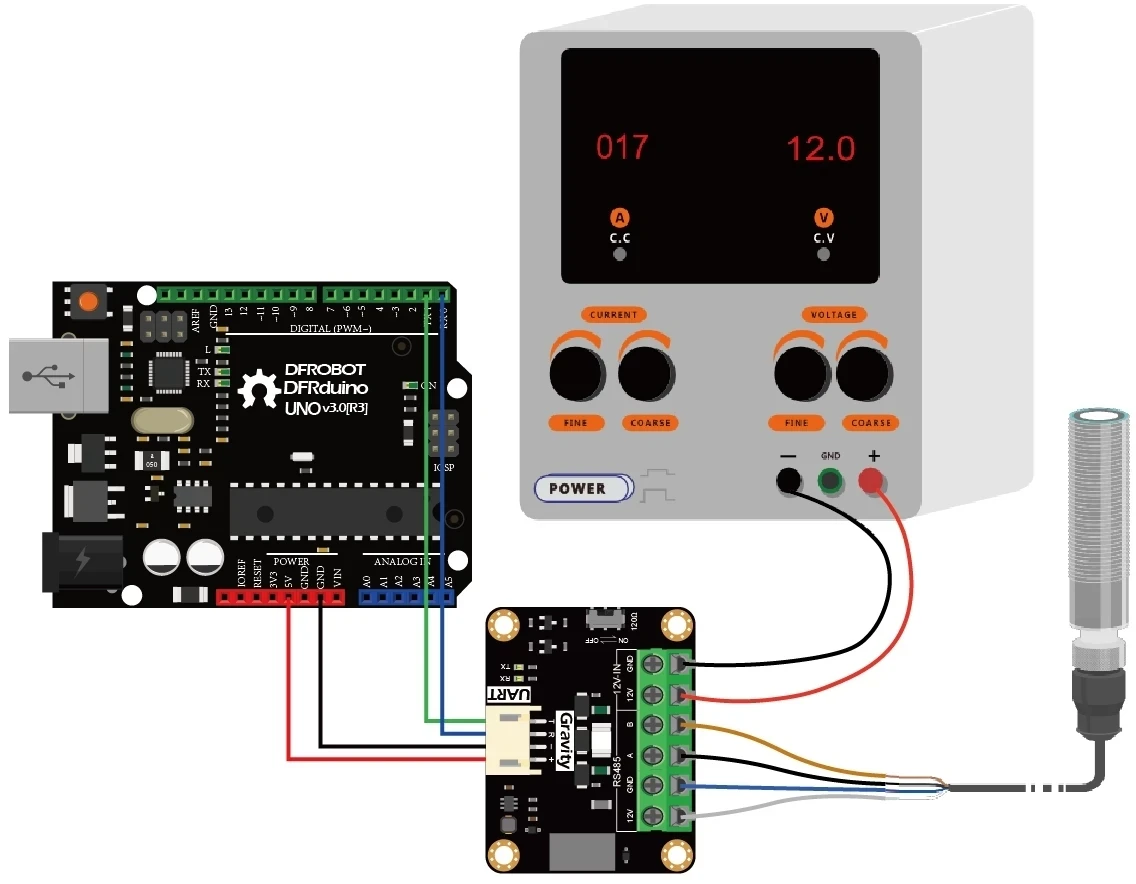

Connection Diagram (Use serial port to read sensor data)
