Flexible RGB LCD Backlight Module

Resources:

Datasheet

Flexible RGB LCD Backlight Module for Uniform Multi Color Illumination in Embedded Designs

The flexible RGB LCD backlight module is a thin profile light emitting panel developed for embedded systems custom displays and dynamic visual indicators. Built on the standard RGB colour model it uses separate red green and blue channels to generate nearly sixteen million colour combinations enabling rich and adaptable lighting effects.

Designed with a common anode diode structure this backlight offers high brightness consistent illumination and physical flexibility for curved or space constrained installations. With controlled forward voltage requirements strong illumination uniformity and a wide operating temperature range it is well suited for custom LCD backlighting status indicators wearable devices and interactive hardware where multi colour lighting and form factor adaptability are essential.

Key Features

• Full Spectrum RGB Colour Output
  Generates nearly sixteen million colours using independent red green and blue channels
• Flexible Thin Profile Design
  Easily adapts to curved surfaces and compact enclosures
• High Brightness And Uniform Illumination
  Delivers consistent light output with approximately seventy percent uniformity
• Common Anode LED Structure
  Simplifies control using standard RGB driver circuits
• Wide Operating Temperature Range
  Suitable for indoor and industrial environments

Flexible and Bendable Form Factor

This flexible RGB panel's main characteristic is its physical flexibility. Unlike solid PCBs or typical backlights, this panel may be twisted and shaped to accommodate curved surfaces or non-standard enclosures. This versatility makes it an excellent choice for custom-made products, wearable electronics, and prototypes that require light to be integrated into complex designs.

Full-Spectrum RGB Color Display

This RGB light source offers complete color customization by combining red, green, and blue LEDs onto a single panel. Designers can accomplish sophisticated color mixing by accurately controlling the intensity of these three channels (for example, using PWM signals from a microcontroller). This capacity broadens its application beyond simple illumination, enabling the production of complicated status indications, ambient lighting effects, and data visualizations.

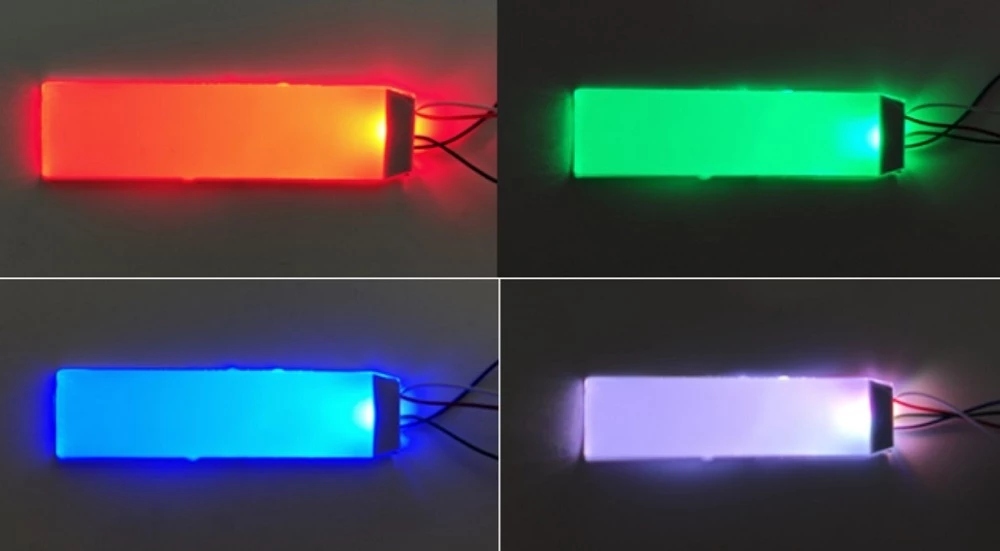

Figure: RGB Color of LCD Backlight Module

High-Brightness and Uniform Illumination

This light-emitting panel is designed to create a strong, continuous glow throughout its entire surface, with 70% homogeneity. This lack of "hot spots" is important when using a backlight since it ensures that any overlaying display (such as a monochrome LCD) is evenly lighted for maximum visibility. As an indicator, its homogeneity results in a clean, professional, and diffuse light source.

Note: Do not remove the film on the screen surface. Other sizes and interfaces can be customized.
