Ultra Low Power Omnipolar Hall Effect Switch Sensor For Battery-Powered Position And Presence Detection
The DRV5032FADBZR Magnetic Omnipolar Switch Hall Effect Sensor is an ultra-low-power magnetic sensing solution designed for battery-operated and energy-efficient electronic systems. Featuring omnipolar magnetic detection, the sensor responds to either north or south magnetic poles, simplifying system design and installation. Its push-pull digital output provides direct logic-level interfacing with microcontrollers and control circuits, making it suitable for compact sensing applications requiring reliable magnetic field detection.

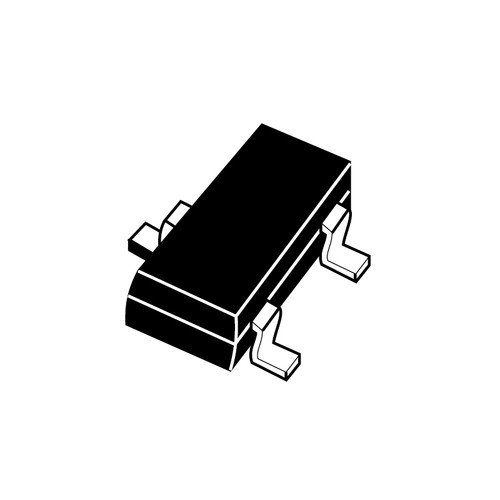

Operating from a wide supply voltage range of 1.65 V to 5.5 V, the DRV5032FADBZR combines low power consumption with dependable switching performance. The device periodically samples the magnetic field using an internal oscillator, significantly reducing current consumption while maintaining accurate detection. Housed in a compact SOT-23-3 package, the sensor is ideal for portable electronics, IoT devices, smart meters, medical equipment, and position-sensing applications where battery life is critical.
Key Features
- Omnipolar Magnetic Detection: Responds to both north and south magnetic poles.
- Push-Pull Output: Direct digital output for easy system integration.
- Ultra Low Power Consumption: Optimized for battery-powered applications.
- Wide Supply Voltage Range: Operates from 1.65 V to 5.5 V.
- Magnetic Field Sampling: Internal oscillator reduces power consumption.
- High Sensitivity Detection: Suitable for precise magnetic position sensing.
- Compact SOT-23-3 Package: Ideal for space-constrained PCB designs.
- Stable Switching Thresholds: Reliable magnetic field detection performance.
- Wide Operating Temperature Range: Supports operation from -40 C to +85 C.
- Solid-State Design: No mechanical wear for long-term reliability.
Applications
- Battery-powered position sensing
- Smart meter tamper detection
- Mobile phone cover detection
- Laptop lid sensing
- Tablet case detection
- Electronic locks
- Smoke detectors
- Home appliances
- Medical devices
- IoT systems
- Valve position detection
- Solenoid position sensing
- Contactless activation systems
- Presence detection systems
