DH24-RJ45 Series RJ45 Male Plug IP67 Waterproof Ethernet Connector

CNLINKO

No reviews yet Write a Review
SKU:
131-DH-24-C/RJ45/015/PE-43-001
MPN:
DH-24-C/RJ45/015/PE-43-001
DH-24-C/RJ45/015/PE-43-001 - DH24-RJ45 Series RJ45 Male Plug IP67 Waterproof Signal Connector - Linko Electric
Quantity
Unit Price (ex. GST)
1 - 9
₹ 718.00
10 - 24
₹ 646.20
25 or above
₹ 574.40
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹847.24 inc. GST
₹718.00 ex. GST

Technical Specifications

Brand:
CNLINKO
Operating voltage:
42V
Insulation Resistance:
500Mohm
Working temperature:
-25~85C, 85% RH Max
Contact Resistance:
40mohm
Protection Level:
IP67
Durability:
750 cycles
Insertion force:
22.25N Max
Withstanding Voltage:
1000V
Rated current:
1.2A
Modular Interface:
RJ45
Gender:
Male

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

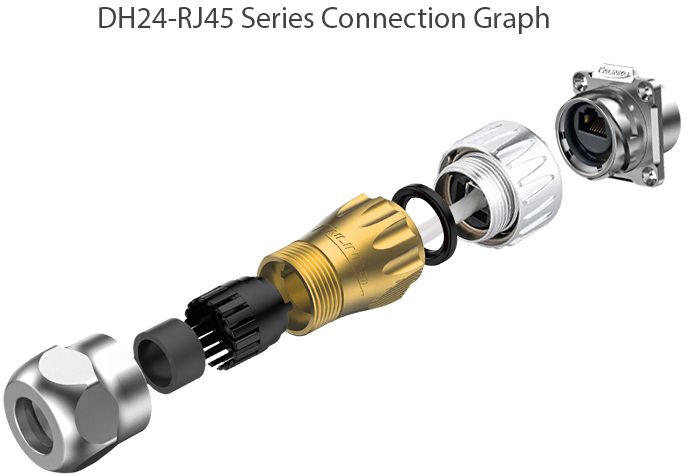

The RJ45 series connectors have multi-style connecting modes like 1/4 bayonet connect and quick plug-unplug applicable for harsh environments. Cable jacket with solid die-casted shell and unique dual-clip-clip wire saddle and sheath of cable applicable for common RJ45 plugs with electroplated shell against wind and rain. These connectors have a shielding system with high-frequency noise immunity and electromagnetic interference protection and protection level IP65 waterproof and dustproof. Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBit/s.

For the mating part, please click here
