CNC Router Machine TTC-H40 (Working Area 39.4x39.4x4 inch)

TwoTrees

No reviews yet Write a Review
SKU:
507-622400034+622500039
MPN:
622400034+622500039
CNC Router Machine TTC-H40 (Working Area 39.4x39.4x4 inch)
Twotrees TTC-H40 CNC Router with 39.4in × 39.4in workspace, CNC/laser dual mode, intelligent touch screen, multi-material support, and safety features. Perfect for DIY and professional projects. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
Sale • Save 12%
Was
₹147,500.00
₹125,000.00
₹130,384.10 inc. GST
₹110,495.00 ex. GST
6 people looking at this.

Technical Specifications

Brand:
TwoTrees
Body Material:
Aluminum Alloy
Control Box Size:
300x137x131mm
Machine Dimensions:
1292.5x1290.5x404.5mm
Working Range:
1000x1000x100mm (39.4inx39.4inx4in)
Supported Tool Diameter:
0.5mm To 7mm (ER11 Collet)
Compatible Engraving Materials:
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel
Power Supply:
216W Dual-Channel Switching Power Supply
Overall Power:
150W
Input Voltage:
100AC-240AC 50HZ
Output Voltage:
OUT1:DC24V/4A OUT2:DC0-100V
Display Size:
3.5 inch
Touch Type:
Resistive Touch Screen
Resolution:
480x320
Firmware Type:
GRBL open source, supports both CNC and laser (no firmware required)
Spindle Module:
500W Spindle Standard
Spindle Speed:
8000-30000 RPM Depending On Installation
Engraving Accuracy:
100+0.05mm
Maximum Engraving Speed:
1800mm/Min
Maximum Acceleration:
500mm/s2
Optimal Temperature:
0 ~40 C
Tool Size:
According to the inner hole size of ER11 collet, it supports 0.5-6MM diameter tools
Engraving Layer Height:
0.1mm-20mm for non-metals, 0.1mm-0.2mm for metals
Cam software:
Vectric, Fusion360, EASEL, Carveco Maker
Engraving Method:
USB Connection, TF Card
Touchscreen Functions:
Motion Control, Emergency Stop,Speed Control, Laser/CNC Function Switch,Language Switch, Online Help
Supported Systems:
MacOS, Windows, and Linux
Safety Certification:
CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID
Net Weight:
38.3Kg
Gross Weight:
45Kg

Warranty Information

All the products supplied by Evelta are genuine and original. Please note that this product is non-returnable. It includes a 1-year supplier warranty from the date of delivery, covering manufacturing defects only. In the event of any manufacturing defects or issues, we will replace the defective part upon confirmation by our technical team. Refunds or full product replacements are not offered.

Description

Resources

Tutorial, Video, Software etc

User Manual

Installation Video

TTCH40 Aluminium Cutting Video

Tutorial Video TTC H40 Computer Operation Screen Recording

TTCH40 PP Board Engraving Video

TTCH40 Carbon Fiber Motorcycle Engraving Video

TTCH40 Acrylic Aeroplane Engraving Video

TTCH40 PCB Board Circuit Board Engraving Video

TTCH40 Rosewood Glowing Coaster Engraving Video

Twotrees TTC-H40 CNC Router Machine With 39.4in x 39.4in Working Area For Woodworking, Acrylic, Plastic And PCB Projects

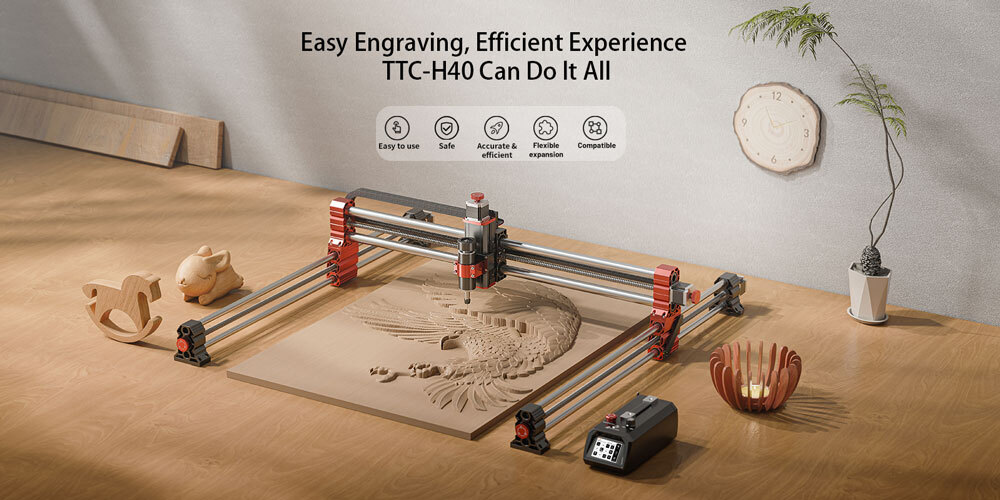

The Twotrees TTC-H40 CNC Router Machine is built for makers who need a large, flexible and easy-to-use machine. Its 39.4in x 39.4in working area handles medium-sized to large-scale projects, from furniture parts and signage to decorative panels. A single platform supports both CNC routing and laser engraving, with a one-step switch between the two modes. This makes it a practical choice for hobbyists, DIY makers, educators and small workshops.

Operation is simple, thanks to the 3.5-inch intelligent touch screen with one-click controls. Beginners can start a project quickly, and experienced users can set up jobs with less effort. Spindle power-off protection and other built-in safety mechanisms support safer day-to-day use. The modular structure makes assembly, disassembly and storage straightforward, and the machine can be upgraded as your projects grow. It works with mainstream systems and supports relief engraving for added depth and texture.

Key Features

  • Large Working Area: 39.4in x 39.4in surface for medium-sized to large-scale projects.
  • Dual Functionality: One-step switch between CNC routing and laser engraving.
  • Intelligent Touch Screen: 3.5-inch display with one-click operation and easy setup.
  • Beginner-Friendly Design: Helps new users start projects quickly and with confidence.
  • Built-In Safety: Spindle power-off protection and multiple safety mechanisms.
  • Relief Engraving Support: Adds depth, texture and dimension to your designs.
  • Multi-Material Compatibility: Works with wood, acrylic, plastic, PCB and more.
  • Modular Structure: Easy to assemble, disassemble and store.
  • Upgrade-Ready: Supports expansion as your creative needs change.
  • Wide System Compatibility: Works with mainstream systems and is used by makers worldwide.

Applications

  • Woodworking projects such as signs, furniture parts and decorative panels
  • Acrylic cutting and engraving for displays and custom nameplates
  • Plastic part machining for prototypes and enclosures
  • PCB engraving and prototyping
  • Relief carving for 3D-style artwork and textured designs
  • Laser engraving for personalised gifts and branded items
  • DIY projects, maker spaces, classrooms and small workshops

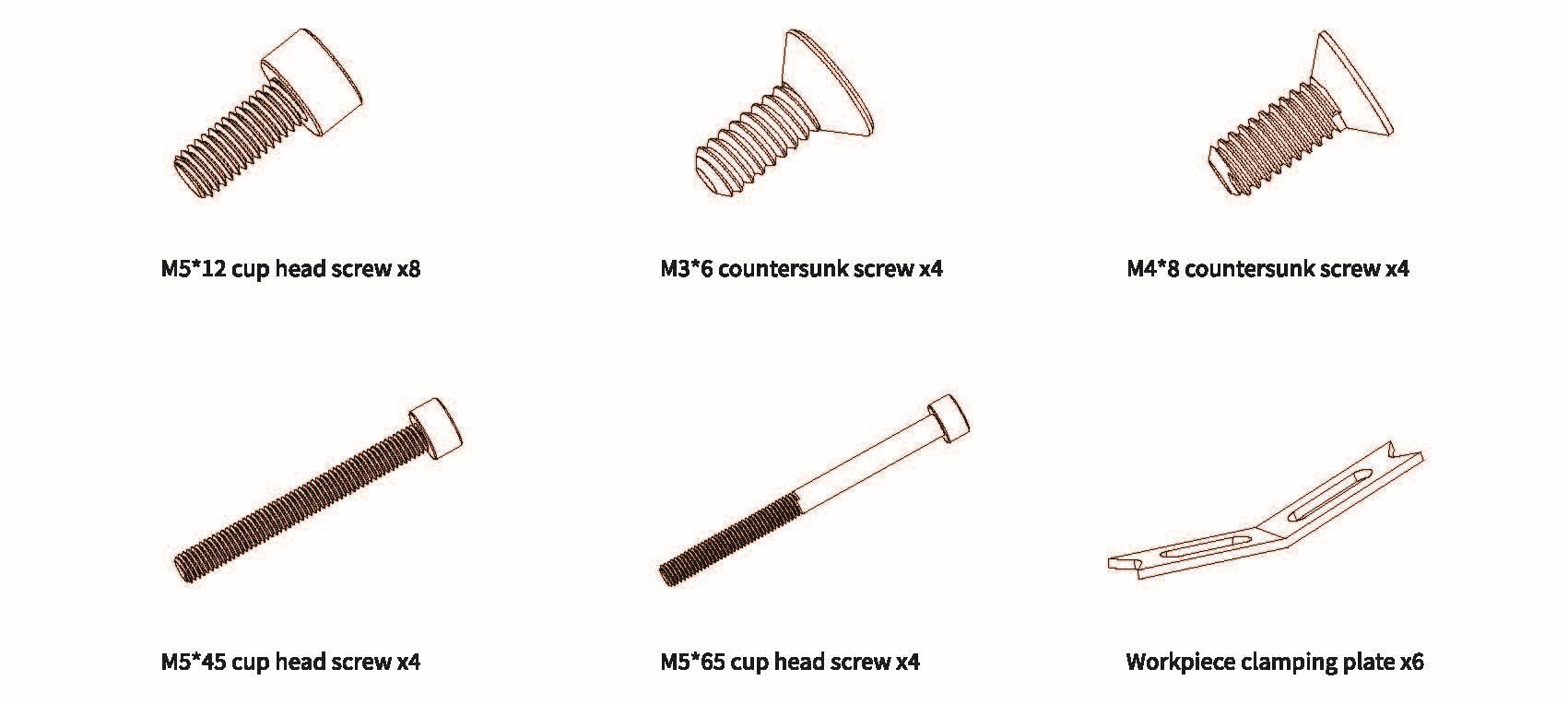

Package Contents
