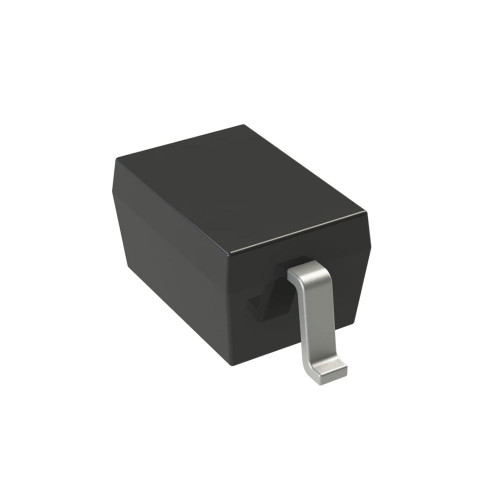

Name: BZX384-B33,115 - Zener Diode 33V 300mW Surface Mount SOD-323
Brand: Nexperia
SKU: 156-BZX384-B33115
Price: 11.6 INR
Availability: InStock

Technical Specifications

Brand:

Nexperia

Contact Plating:

Tin

Number of Pins:

Number of Terminals:

80 Ohm

Max Operating Temperature:

150 C

Max Power Dissipation:

300 mW

Min Operating Temperature:

-65 C

Number of Elements:

Peak Reverse Current:

50 nA

Polarity:

Unidirectional

Reference Voltage:

33 V

Reverse Standoff Voltage:

23.1 V

Voltage Tolerance:

2 %

Zener Current:

2 mA

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

General Purpose Zener Diode for Stable High Voltage Regulation in Compact Designs

BZX384 B33 115 is a surface mount Zener diode designed to provide reliable voltage regulation and effective overvoltage protection in low power electronic circuits. With a nominal Zener voltage of thirty three volt it ensures controlled clamping for higher voltage signal lines and reference networks.

This Zener diode is commonly used in voltage reference circuits biasing networks and protection stages across consumer electronics industrial equipment and communication systems. The compact SOD 323 package supports high density PCB layouts while maintaining stable electrical performance and efficient automated assembly.

Key Features

Stable Zener Voltage Regulation
Provides a consistent thirty three volt reference for regulation and protection applications
Low Power Dissipation
Rated for up to three hundred milliwatt suitable for low power designs
Fast Transient Response
Effectively clamps voltage spikes to protect sensitive components
Low Leakage Characteristics
Ensures reliable operation in precision and signal level circuits
Compact Surface Mount Package
SOD 323 package ideal for space constrained and high density PCB designs
