BC847A,215 - Bipolar Transistor NPN 45V 100mA 100MHz SOT-23-3

Nexperia

No reviews yet Write a Review
SKU:
156-BC847A215
MPN:
BC847A,215

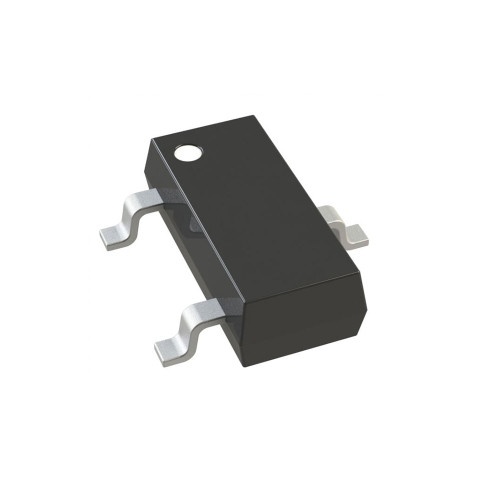

BC847A 215 NPN bipolar transistor in SOT 23 3 surface mount package
Quantity
Unit Price (ex. GST)
1 - 9
₹ 11.77
10 - 99
₹ 10.59
100 or above
₹ 9.42
NPN bipolar transistor rated at 45 volt with 100 milliampere current capability suitable for low noise signal amplification and general purpose switching in compact surface mount designs View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹13.89 inc. GST
₹11.77 ex. GST

Technical Specifications

Brand:
Nexperia
Contact Plating:
Tin
Number of Pins:
3
Number of Terminals:
3
Collector Emitter Saturation Voltage:
400 mV
Collector Emitter Voltage (VCEO):
45 V
hFE Min:
110
Max Collector Current:
100 mA
Max Operating Temperature:
150 C
Max Power Dissipation:
250 mW
Min Operating Temperature:
-65 C
Number of Elements:
1
Polarity:
NPN
Power Dissipation:
250 mW
Transition Frequency:
100 MHz

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

General Purpose NPN Bipolar Transistor for Low Noise Signal Amplification and Switching

The BC847A 215 NPN bipolar transistor is designed for reliable low noise signal amplification and general purpose switching in compact electronic circuits. With a collector emitter voltage rating of 45 volt and a continuous collector current of 100 milliampere it delivers stable electrical performance in analogue signal paths biasing networks and small load switching stages. The SOT 23 3 surface mount package supports high density PCB layouts and efficient automated assembly.

This transistor is widely used in audio preamplifiers sensor signal conditioning stages and control circuits across consumer and industrial electronics. The A gain classification provides controlled and predictable DC current gain which simplifies circuit design and ensures consistency in volume production. Its 100 megahertz transition frequency allows clean operation in moderate speed amplification and switching applications.

Key Features

  • NPN Bipolar Transistor
    Suitable for low noise signal amplification and general purpose switching
  • Stable Voltage Rating
    Designed for circuit operation up to 45 volt
  • Reliable Current Handling
    Supports collector current up to 100 milliampere
  • Controlled Gain Class A
    Ensures predictable amplification characteristics
  • Compact SOT 23 3 Package
    Ideal for space constrained surface mount PCB designs
