Description
The A01NYUB Waterproof Ultrasonic Sensor utilizes ultrasonic pulses to accurately measure the distance to a target. By calculating the time it takes for the pulse to travel from the sensor to the target and back, the sensor determines the precise distance. This particular sensor offers enhanced capabilities, including an extended monitoring distance, a broader detection range, and the ability to penetrate through obstacles like smog and dust. Additionally, the sensor comes equipped with a removable bell-mouth attachment, which allows for effective measuring distances of up to 7.5m when installed.
The ultrasonic sensor features a closed probe design with separate transmitter and receiver units, ensuring waterproof and dustproof functionality. The module incorporates all the necessary signal processing units internally, allowing users to directly access distance values through the Asynchronous Serial Interface. Operating at a baud rate of 9600 bits per second, the sensor enables seamless communication with upper-host devices or other microcontroller units (MCUs), significantly reducing the development time for users.
Beam Directionalities Diagram

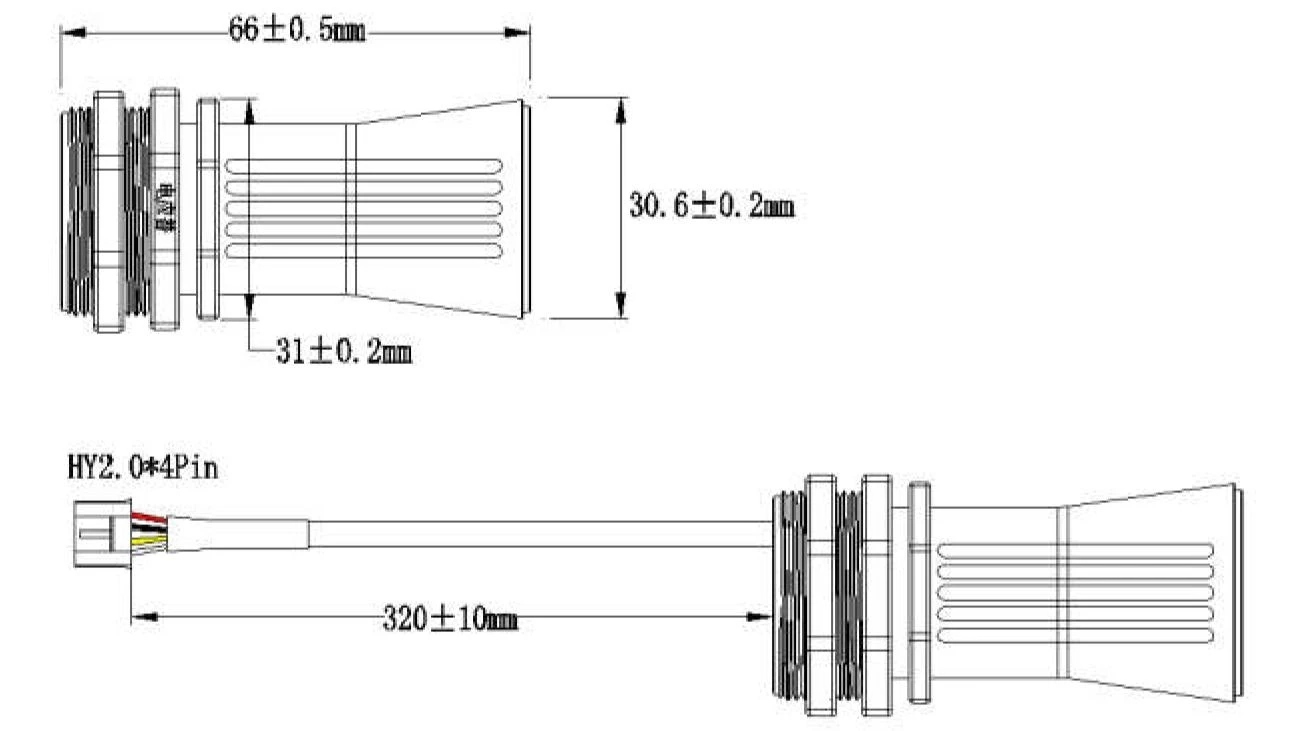

Dimension Diagram
Specification
- Accuracy: ±1cm
- Operating Voltage: 3.3~5V
- Average Current: <15mA
- Blind Zone: 28cm
- Detection Range (Flat Object): 28-750cm
- Output: UART
- Response Time: 100ms
- Probe Center Frequency: 40K±1.0KHZ
- Operating Temperature: -15~60C
- Storage Temperature: -25~80C
- Sensing Angle: with bell-mouth: 55Deg
- without bell-mouth: 40Deg
- Waterproof Grade: IP67
- Resolution: 1mm
Package Contents
- A01NYUB Waterproof Ultrasonic Sensor x1
- PH2.0-4P Connector x1
Resources
FAQs:
Q: What is the detection range of the A01NYUB ultrasonic distance sensor?
A: The sensor can measure distances ranging from 28cm to 750cm.
Q: What communication interface does the sensor use?
A: The sensor communicates using the UART (Serial) interface.
Q: Is the sensor waterproof and dustproof?
A: Yes, the sensor has an IP67 rating, making it waterproof and dustproof.
Q: What is the power supply voltage for the sensor?
A: The sensor operates on a 5V power supply.
Q: What applications can the A01NYUB ultrasonic sensor be used for?
A: The sensor can be used for various applications such as object detection, obstacle avoidance, level measurement, and distance measurement in robotics, automation, and industrial settings.
