8-Pin 2.0mm Pitch Side-Entry SMT Male Header Connector for DWIN HMI Display, 2A Right-Angle PCB Header for Serial and Power Wiring
The 8-pin 2.0mm pitch side-entry SMT male header connector is a compact board-to-wire interface for DWIN HMI display modules. The right-angle (side-entry) pin orientation keeps the mating cable parallel to the PCB. This reduces the overall height of the assembly and suits slim enclosures. The surface-mount (SMD) footprint allows automated reflow soldering and avoids drilling through the board.
With a 2A current rating and 8 pins, this male header handles serial communication lines (TX, RX), power supply lines, and signal connections in a single connector. It is well-suited for intelligent display modules, embedded control panels, and prototype boards where space is limited. The 2.0mm pitch is a common standard, so matching female housings and pre-crimped cables are easy to source.
Key Features
- 8-Pin Configuration: Carries power, ground, and serial or signal lines through one connector.
- 2.0mm Pin Pitch: Fine spacing that saves PCB area compared to 2.54mm headers.
- SMT Mounting: Surface-mount (SMD) pins are compatible with standard reflow assembly.
- Side-Entry Right-Angle Design: Cable enters parallel to the board, giving a low-profile layout.
- 2A Current Rating: Suitable for power and signal transmission to display modules.
- DWIN HMI Display Compatibility: Fits the 8-pin serial and power interface used on DWIN display modules.
- Male Header Type: Mates with 2.0mm pitch female housings and wire-to-board cable assemblies.
Applications

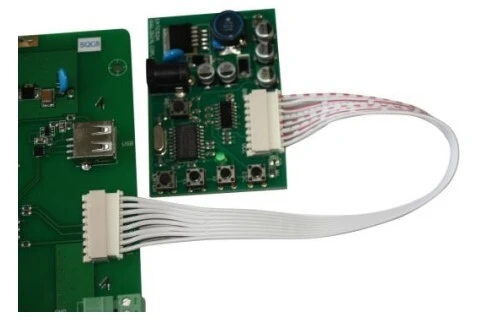

- DWIN HMI display and intelligent display module wiring
- UART and serial communication links between a display and a microcontroller
- Power and signal transmission to peripheral modules
- Embedded control panels and industrial HMI units
- Compact consumer and IoT devices with space-limited PCBs
- Prototyping and replacement of damaged display connectors
