8.0 Inch 800x1280 HD LCD Display Capacitive Touch - Radxa

Radxa

No reviews yet Write a Review
SKU:
498-AD001
MPN:
AD001
AD001 - Radxa Display 8 HD Touchscreen Module – 8-Inch IPS Multi-Touch Display for Radxa Boards
Radxa Display 8 HD is an 8-inch 800×1280 LCD touchscreen with 5-point touch, g-sensor for auto rotation, and single cable interface. Ideal for Radxa SBCs in industrial HMI, IoT, dashboards, and smart projects. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹5,062.20 inc. GST
₹4,290.00 ex. GST

Technical Specifications

Brand:
Radxa
Panel Size:
8.0 inch
Number of Pixels:
800(H)x3(RGB)x1280(V) Pixels
Active Area:
107.64(H)x172.224(V) mm
Sensor:
Gravity Sensor for Rotation
Touch:
5‑Point Capacitive Touch Panel
Screen Dimension:
127.00x199.22x5.9 mm
Connector:
40Pin 0.5mm Pitch MIPI DSI Connector
Operation Temperature:
-10°C to 60°C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Introduction

Datasheet

Radxa Display 8 HD Touchscreen Module: Seamless Visuals and Interactive Control for Radxa SBCs

The Radxa Display 8 HD is an all-in-one colour active matrix LCD touchscreen module designed to perfectly complement Radxa Single Board Computers. Featuring an 8.0-inch screen with 800 x 1280 resolution and 16.7M colours, it delivers vivid visuals and full-angle viewing for crystal-clear displays. Equipped with a 5-point capacitive touch panel, it enables fluid multi-touch interaction, making it ideal for interactive projects such as tablets, industrial HMIs, information dashboards, and smart IoT interfaces. With a single cable solution for power, display, and touch, setup is simple and clutter-free, while the built-in software on-screen keyboard eliminates the need for external input devices.

This display module also integrates a built-in g-sensor for automatic portrait and landscape rotation, providing versatile usability across multiple environments. Its durable build, anti-glare surface treatment, and wide operating temperature range ensure reliable performance in industrial, commercial, and embedded applications. From robotics interfaces to smart kiosks, the Radxa Display 8 HD offers a complete human-computer interface solution that is both compact and efficient.

Key Features of Radxa Display 8 HD

  • 8.0-Inch LCD Panel: 800 × 1280 resolution with 16.7M colours for vibrant and detailed visuals.

  • Multi-Touch Support: 5-point capacitive touch panel for smooth and responsive control.

  • All-Angle Viewing: Full viewing angles with a normally black LCD for superior contrast.

  • G-Sensor Integration: Automatic portrait/landscape rotation for flexible applications.

  • Enhanced Display Quality: Supports PWM brightness control and colour enhancement.

  • Optimised Interface: Single cable for power, display, and touch with on-screen keyboard support.

  • Industrial-Grade Reliability: Anti-glare coating, 300 cd/㎡ brightness, and wide operating temperature (-20°C to 60°C).

  • Durable Build: White LED backlight with long operational life and stable performance.

Package Content:

  • 1x Radxa Display 8 HD
  • 1x FPC Cable 15p to 40p
  • 2x FPC Cable 39p to 40p
  • 10x M3 Copper pillars
  • 10x DuPoint Wire
  • 10x M3x6 Screws

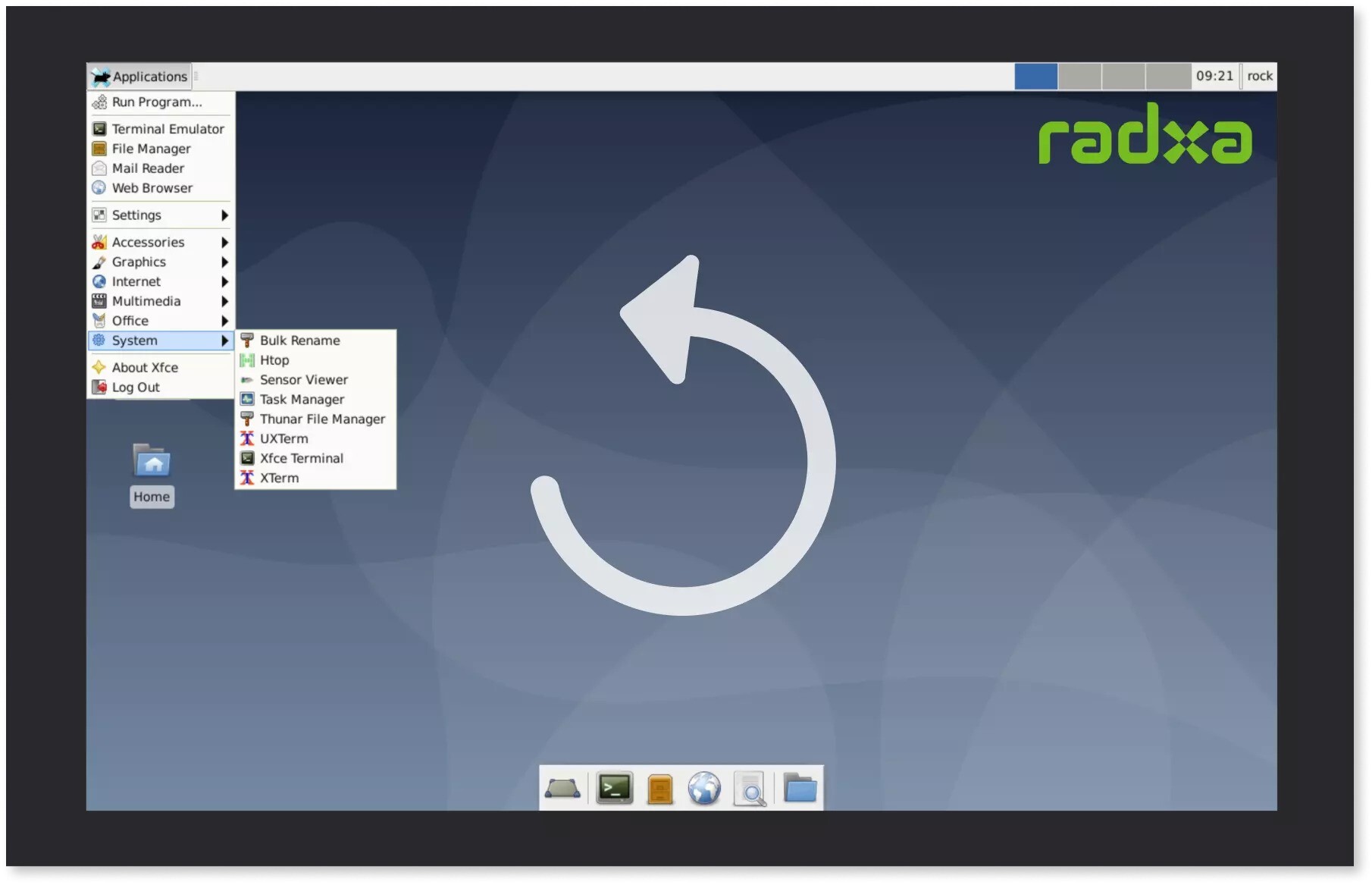

Built-in Gravity Sensor
Supports Automatic Screen Rotation
