7Semi MMC5983MA Micro Magnetometer, 3-axis Magnetic Sensor

7Semi

No reviews yet Write a Review
SKU:
004-ES-12238
MPN:
ES-12238
The 7Semi MMC5983MA Micro Magnetometer is a precise, 3-axis magnetic sensor with MEMSIC technology. Achieve ±0.5° heading accuracy with a 0.4mG sensitivity and 1000Hz output rate, all in a compact Qwiic-compatible design for easy integration. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹541.62 inc. GST
₹459.00 ex. GST
21 people looking at this.

Technical Specifications

Brand:
7Semi
Voltage Supply:
3.3V
Interface:
I2C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

7Semi MMC5983MA Micro Magnetometer Breakout Qwiic: Precision Sensing in a Compact Form Factor

The 7Semi MMC5983MA Micro Magnetometer Breakout Qwiic is a compact, high-performance magnetometer designed for accuracy and convenience. With the MMC5983MA sensor from MEMSIC, this micro-sized breakout board offers unmatched sensitivity down to 0.4mG and ensures directional accuracy within ±0.5°, making it ideal for compass and navigation applications. Built for versatility, the Qwiic system allows seamless integration with other components via I2C, eliminating the need for soldering and streamlining connections. Advanced features like built-in degaussing circuitry reduce residual magnetization, ensuring consistent, reliable results even in demanding environments. This module’s superior output rate, wide dynamic range, and minimal thermal variation make it perfect for precision measurement applications.

Key features include efficient data handling with a 1000Hz max output rate and an 18-bit resolution, providing high-fidelity data while consuming minimal power. With its built-in SET/RESET degaussing function, thermal stability, and low power consumption, this magnetometer is engineered for applications that demand accuracy, consistency, and longevity.

Key Features and Specifications:
  • Unmatched Sensitivity: Senses down to 0.4mG for highly accurate measurements.
  • Precision Heading: Ensures accuracy within ±0.5° for precise directional applications.
  • Built-In Degaussing Circuitry: Automatically clears residual magnetization, preventing saturation.
  • High Output Rate: Max 1000Hz data output rate for rapid data processing.
  • High Resolution: 18-bit resolution for fine-grained magnetic readings.
  • Wide Dynamic Range: ±8G full-scale range (FSR) to capture a broad range of magnetic fields.
  • Temperature Compensation: On-chip temperature sensor minimizes thermal offsets.
  • Low Power Mode: 1μA power down current for efficient energy use.

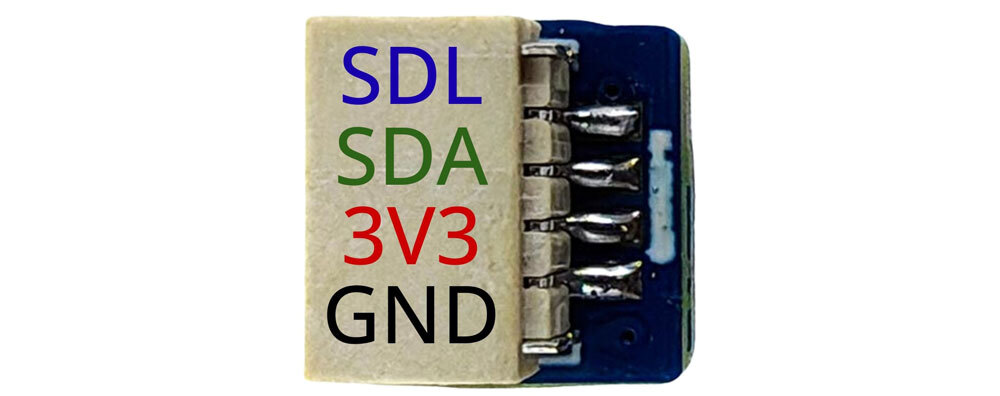

  • Easy Integration: Qwiic I2C connectivity, 3.0V power supply, and fast mode support up to 400kHz.

Elevate Your Measurement Capabilities with the 7Semi MMC5983MA Micro Magnetometer Breakout Qwiic.
