7Semi BNO086 9-DOF Orientation VR IMU Fusion Breakout Qwiic

7Semi

No reviews yet Write a Review
SKU:
004-ES-12243
MPN:
ES-12243
7Semi BNO086 9-DOF Orientation VR IMU Fusion Breakout Qwiic with Qwiic connectors, triple-axis accelerometer, gyroscope, magnetometer, and precise motion sensing for VR, gaming, and robotics applications.
7Semi BNO086 VR IMU Breakout offers precise 9-DOF motion tracking with a 3-axis accelerometer, gyroscope, and magnetometer. Features Qwiic connectors, I2C/SPI support, and interactive calibration for seamless VR, robotics, and gaming integration. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,295.10 inc. GST
₹1,945.00 ex. GST
19 people looking at this.

Technical Specifications

Brand:
7Semi

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

High-Performance 9-DOF Orientation VR IMU for Precise Motion Tracking: Upgrade Your Tech Projects Today

Enhance your virtual reality and motion-sensing applications with the 7Semi BNO086 9-DOF Orientation VR IMU Fusion Breakout Qwiic, a cutting-edge sensor module that delivers exceptional accuracy and performance. Powered by CEVA’s advanced BNO086 System in Package (SiP), this breakout board seamlessly integrates a triple-axis accelerometer, gyroscope, and magnetometer with a 32-bit ARM Cortex M0+. Whether for VR, robotics, or gaming applications, the module offers precise rotation vector headings with minimal drift and static errors under two degrees.

With dual Qwiic connectors, the board simplifies integration into your projects, eliminating the need for soldering while retaining compatibility with breadboards via 0.1"-spaced pin headers. Offering versatile communication options (I2C, SPI, UART), this IMU ensures compatibility with a range of devices and systems, making it a go-to choice for developers seeking reliable orientation and motion-sensing solutions.

Key Features for Seamless Integration and Accuracy

Advanced Sensor Fusion Technology:

  • Combines accelerometer, gyroscope, and magnetometer data with drift correction for high-precision outputs.
  • Produces rotation vector readings with dynamic error under 3.5° and static error under 2.0°.

Wide Compatibility:

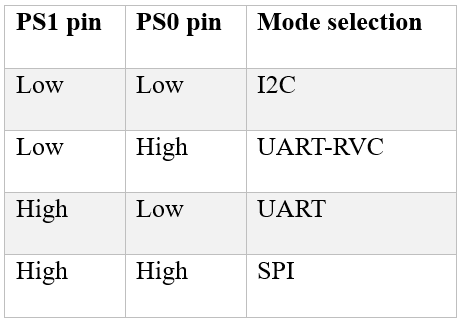

  • Supports I2C (default, up to 400kHz), SPI (up to 3MHz), and UART (up to 3Mbps) communication protocols.
  • Dual I2C address options via solder jumpers (default: 0x4B, alternate: 0x4A).

Enhanced Power Efficiency:

  • Operates at 2.4V - 3.6V with typical 3.3V via Qwiic cable for reduced power consumption.

Interactive Calibration and Activity Tracking:

  • Includes features like 14-bit accelerometer fusion and activity classification (e.g., biking, running).

Developer-Friendly Design:

  • Equipped with 2x Qwiic connection ports for plug-and-play integration.
  • Power LED indicators and solder jumpers for pull-up resistors and protocol selection.
  • Rotation Vector Static Error: 2.0°
  • Dynamic Heading Drift: 0.5°/min
  • Accelerometer Accuracy: 0.3 m/s
  • Gyroscope Accuracy: 3.1°/sec
  • Magnetometer Accuracy: 1.4µT
  • Operating Voltage: 2.4V - 3.6V (3.3V Typical)
