BME690 4-in-1 Metal Environmental Probe for VOC, Temperature, Humidity, and Barometric Pressure Monitoring
The 7Semi BME690 Environmental Sensor Probe integrates Bosch Sensortec's BME690 4-in-1 environmental sensor into a rugged metal probe for measuring temperature, relative humidity, barometric pressure, and gas resistance. The integrated gas-sensing element responds to Volatile Organic Compounds (VOCs), Volatile Sulfur Compounds (VSCs), and other gases, allowing the probe to support indoor air-quality and environmental-monitoring applications alongside conventional weather measurements.
The probe communicates through I2C at address 0x76 and includes a 1 m cable for convenient integration with remote or enclosed sensing installations. It operates from a 3.3V supply and supports configurable oversampling, IIR filtering, heater profiles, and measurement modes. Raw gas-resistance measurements can be processed using Bosch BSEC software to generate additional outputs such as Indoor Air Quality (IAQ) index, bVOC equivalent, and CO₂-equivalent values for supported applications.
Key Features
- 4-in-1 Environmental Sensing: Measures temperature, relative humidity, barometric pressure, and gas resistance
- Bosch BME690 Sensor: Integrated environmental and air-quality sensing IC
- VOC and VSC Response: Gas sensor responds to VOCs, VSCs, and other environmental gases
- Temperature Range: -40°C to +85°C
- Temperature Accuracy: ±0.5°C from 0°C to +65°C
- Humidity Range: 0–100% RH
- Humidity Accuracy: ±3% RH
- Pressure Range: 300–1100 hPa
- Pressure Absolute Accuracy: ±0.5 hPa
- Pressure Relative Accuracy: ±0.05 hPa
- Digital Interface: I2C communication up to 3.4 MHz
- I2C Address: 0x76
- Gas Heater: Integrated programmable heater for gas sensing
- Configurable Oversampling: Adjustable temperature, humidity, and pressure oversampling
- IIR Filtering: Configurable digital filtering for measurement stabilisation
- Measurement Modes: Supports configurable low-power and gas-sensing operating modes
- Low-Power Operation: Suitable for battery-powered and continuously monitored applications
- BSEC Support: Enables derived IAQ, bVOC, and CO₂-equivalent outputs

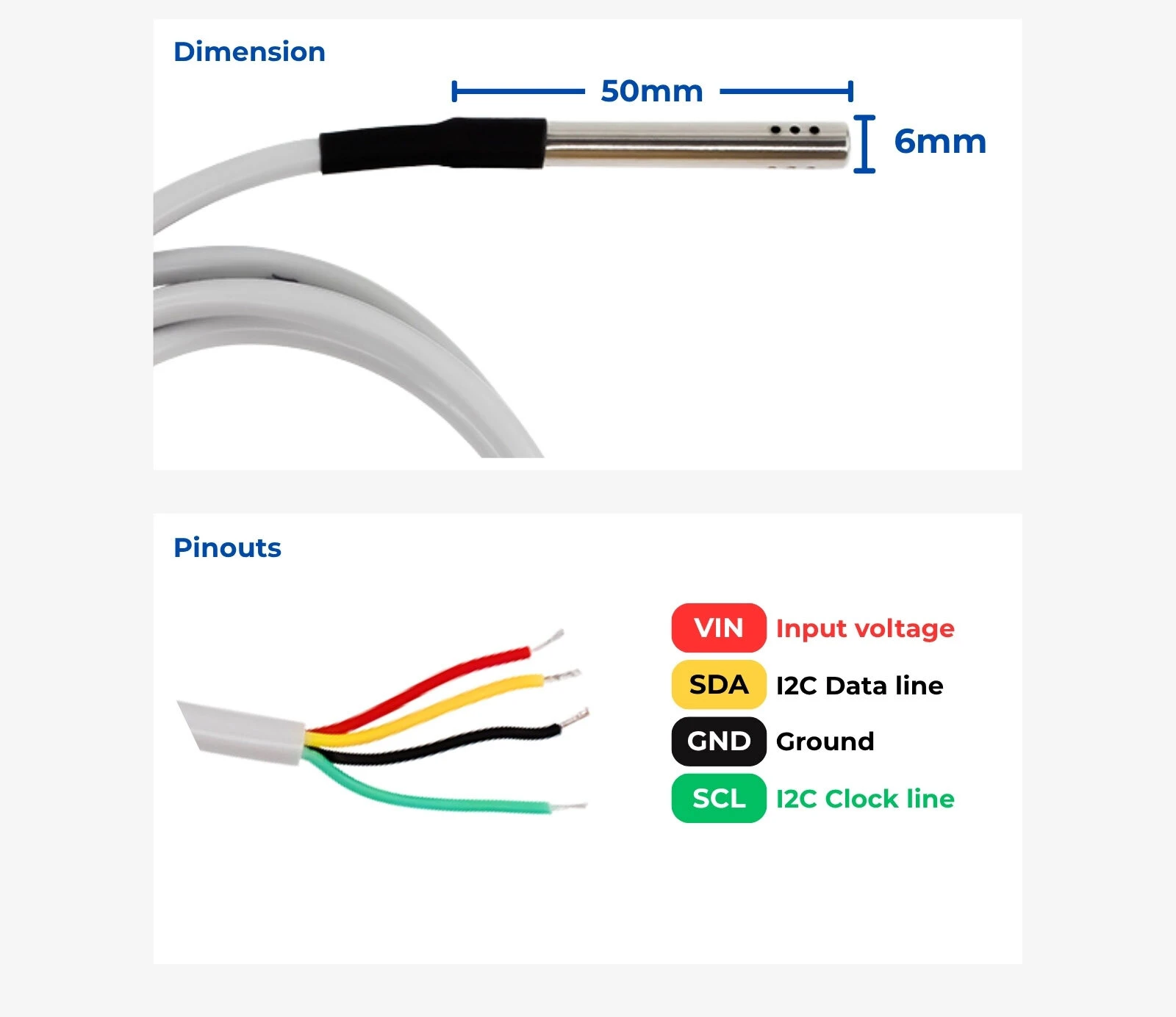

- Probe Construction: Metal-enclosed sensing probe
- Cable Length: 1 m
- Microcontroller Compatibility: Suitable for ESP32, ESP8266, STM32, Raspberry Pi, Arduino Nano 33 IoT, nRF52, and other 3.3V I2C hosts
Applications
- Indoor air-quality monitoring
- HVAC monitoring and control
- Smart home environmental sensing
- Weather stations
- IoT environmental nodes
- Building automation
- Industrial environmental monitoring
- Asset and storage monitoring
- Portable environmental instruments
- VOC monitoring
- Laboratory environmental logging
- Smart ventilation systems
- Battery-powered sensing systems
