7Semi ADS1015 12bit 4-Channel ADC Board with PGA I2C

7Semi

No reviews yet Write a Review
SKU:
004-BO-10162
MPN:
BO-10162
The 7Semi ADS1015 12bit 4-Channel ADC Board offers precision analog-to-digital conversion with a PGA, I2C interface, and low power consumption, ideal for sensor measurements in space-constrained, power-sensitive applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹223.02 inc. GST
₹189.00 ex. GST
18 people looking at this.

Technical Specifications

Brand:
7Semi

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Unlock High-Precision Data Conversion for Your Applications: Enhance your sensor measurement capabilities with ADS1015 ADC Board

The 7Semi ADS1015 ADC board is designed to deliver exceptional performance in space and power-constrained environments. Integrating the Texas Instruments ADS1015IDGST, this board offers a precise, low-power, 12-bit analog-to-digital conversion with an internal reference, oscillator, and programmable comparator. Ideal for applications requiring high accuracy and low noise, the ADS1015 ADC board supports a wide supply range and boasts minimal current consumption, making it perfect for sensor measurement tasks in industrial, medical, and portable electronics.

Key Features:

  • 12-Bit Noise-Free Resolution: Achieve superior accuracy with minimal noise interference, ensuring precise measurements in all conditions.
  • Wide Supply Range (2.0 V to 5.5 V): Flexible voltage options make this board compatible with various power sources.
  • Low Power Consumption: Consumes just 150 µA in continuous-conversion mode, optimizing energy efficiency for battery-powered applications.
  • Programmable Data Rate: Adjust the sampling speed from 128 SPS to 3.3 kSPS to meet your specific measurement needs.
  • Internal Low-Drift Voltage Reference and Oscillator: Ensures stable and consistent performance over time, crucial for long-term projects.

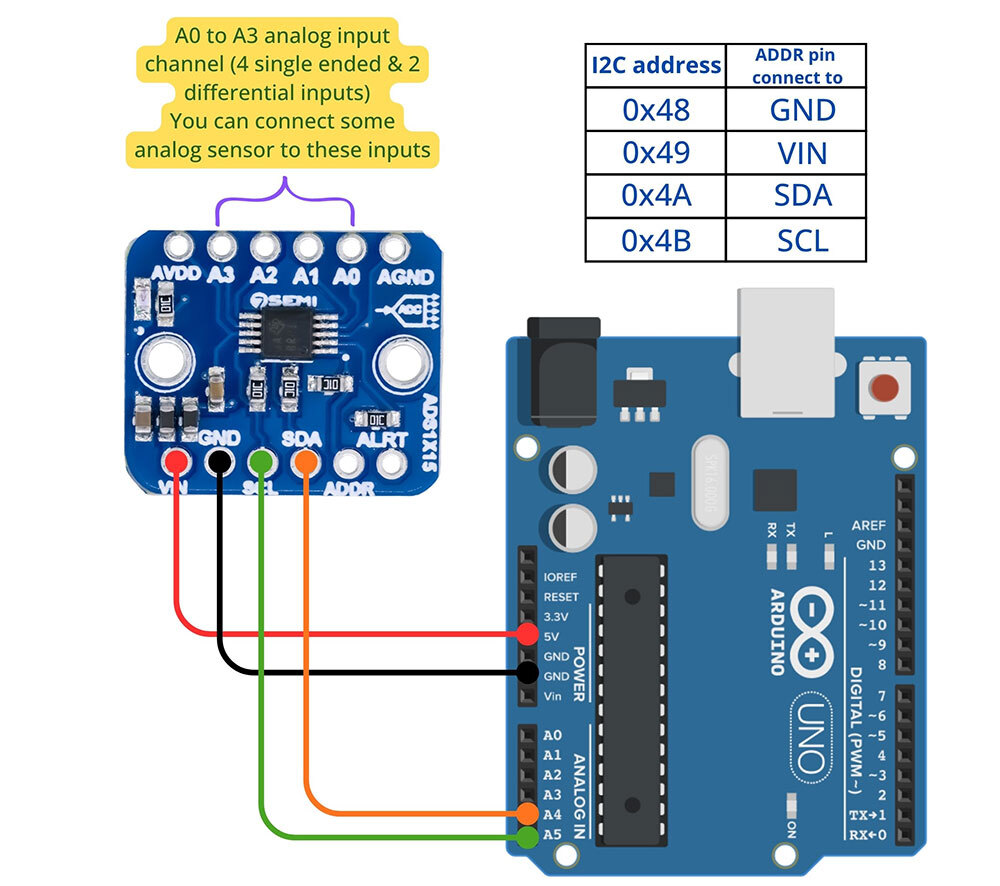

  • I2C Interface with Four Pin-Selectable Addresses: Simplifies integration and allows multiple devices to communicate seamlessly within your system.
  • Four Single-Ended or Two Differential Inputs: Offers versatile input options to suit different measurement configurations.
  • Programmable Gain Amplifier (PGA): Enhances signal processing, enabling accurate readings across a wide range of input levels.
  • Compact and Space-Saving Design: Perfect for applications with limited space, without compromising on functionality.
