7 Inch 800x480 COF Display Resistive Touch 16MB Flash

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480F070_02WTR
MPN:
DMG80480F070_02WTR
7 Inch COF Touch screen Model DMG80480F070_02WTR 800x480 pixels resolution (COF Series)
Quantity
Unit Price (ex. GST)
1 - 9
₹ 1,395.00
10 or above
₹ 1,339.20
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,646.10 inc. GST
₹1,395.00 ex. GST
20 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
7.0 inch
Resolution:
800x480
Display Panel:
TN, TFT LCD
Touch Type:
Resistive
View Angle:
TV viewing angel, typical value of 70Deg/70Deg/40Deg/30Deg(L/R/U/D)
Color:
262K colors
Display Area:
154.08mm (W)x85.92mm (H)
Power Supply:
4.5~5.5V
Brightness:
150nit
Interface:
TTL
Working temperature:
-10C~60C
Thickness:
5.00mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

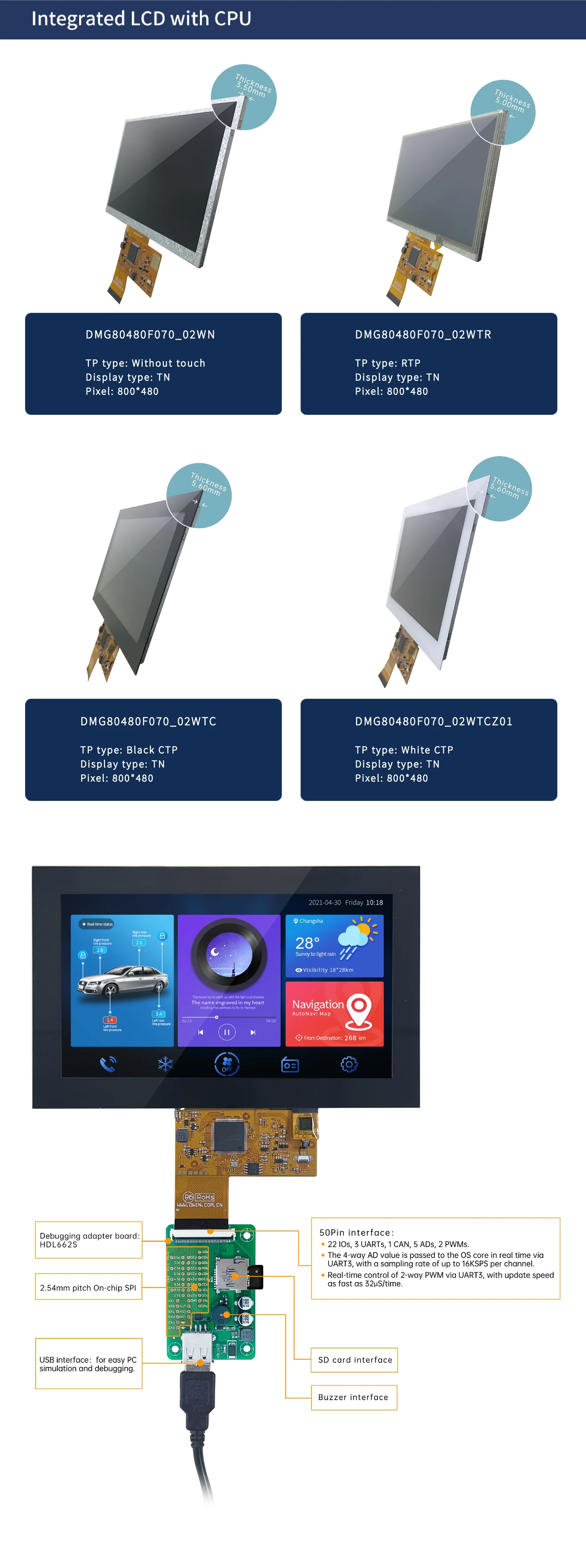

The DWIN 7 Inch COF Touch screen Model: DMG80480F070_02W (COF Series) is a feature-rich display based on T5L0, running DGUS II system. It features a 7-inch TN TFT display with a resolution of 800x480 pixels and 262K colors. The LCD and TP frame lamination process ensures optimal performance. The COF structure allows for a light and thin design, reducing costs and enabling easy production. The display comes with 50 pins, including IO, UART, CAN, AD, and PWM, providing convenient options for secondary development.Thickness 5.60mm.

Features:
  • Display Size: 7 inches
  • Resolution: 800x480 pixels
  • Colors: 262K colors (True Color)
  • Display Type: TN TFT
  • Operating System: DGUS II
  • Frame Lamination: LCD and TP
  • Structure: COF
  • Core Circuit Placement: Fixed on FPC of LCM
  • Benefits: Light and thin design, Low cost, Easy production
  • Interface: 50 pins (IO, UART, CAN, AD, PWM)
  • Secondary Development: Supported for user CPU core
