7.0 inch 800x480 HMI Resistive Touch TFT LCD Display 16MB Flash TTL/RS232

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480C070_03WTR
MPN:
DMG80480C070_03WTR
7 inch 800x480 TFT LCD display with resistive touch DGUS II system and 16MB flash for industrial HMI applications
Quantity
Unit Price (ex. GST)
1 - 9
₹ 2,360.00
10 or above
₹ 2,242.00
7-inch TFT LCD display with 800x480 resolution, DGUS II GUI system, and 16MB flash. Supports resistive touch, TTL/RS232 interface, and easy HMI development. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,784.80 inc. GST
₹2,360.00 ex. GST

Technical Specifications

Brand:
DWIN
Display Size:
7.0 inch
Resolution:
800x480
Display Panel:
TN, TFT LCD
Touch Type:
Resistive
View Angle:
Normal viewing angle, 70°/70°/50°/70°
Color:
24-bit 8R8G8B
Display Area:
154.10mm (W)x85.90mm (H)
Power Supply:
5V 1A DC
LCM interface:
FPC50_0.5mm, RGB interface
Memory:
16MB
Buzzer:
3V passive buzzer
SD Interface:
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 Interface:
When product crashes by accident, you can use PGT05 to updateDGUSkernel and make the product return to normal
Brightness:
250nit
Weight:
310g
Dimensions:
190.50mm (W)x105.40mm (H)x13.30mm (T)
Interface:
TTL/RS232

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

7.0 Inch 800x480 TFT LCD Display with Resistive Touch, DGUS II GUI and 16MB Flash for HMI and Embedded Control

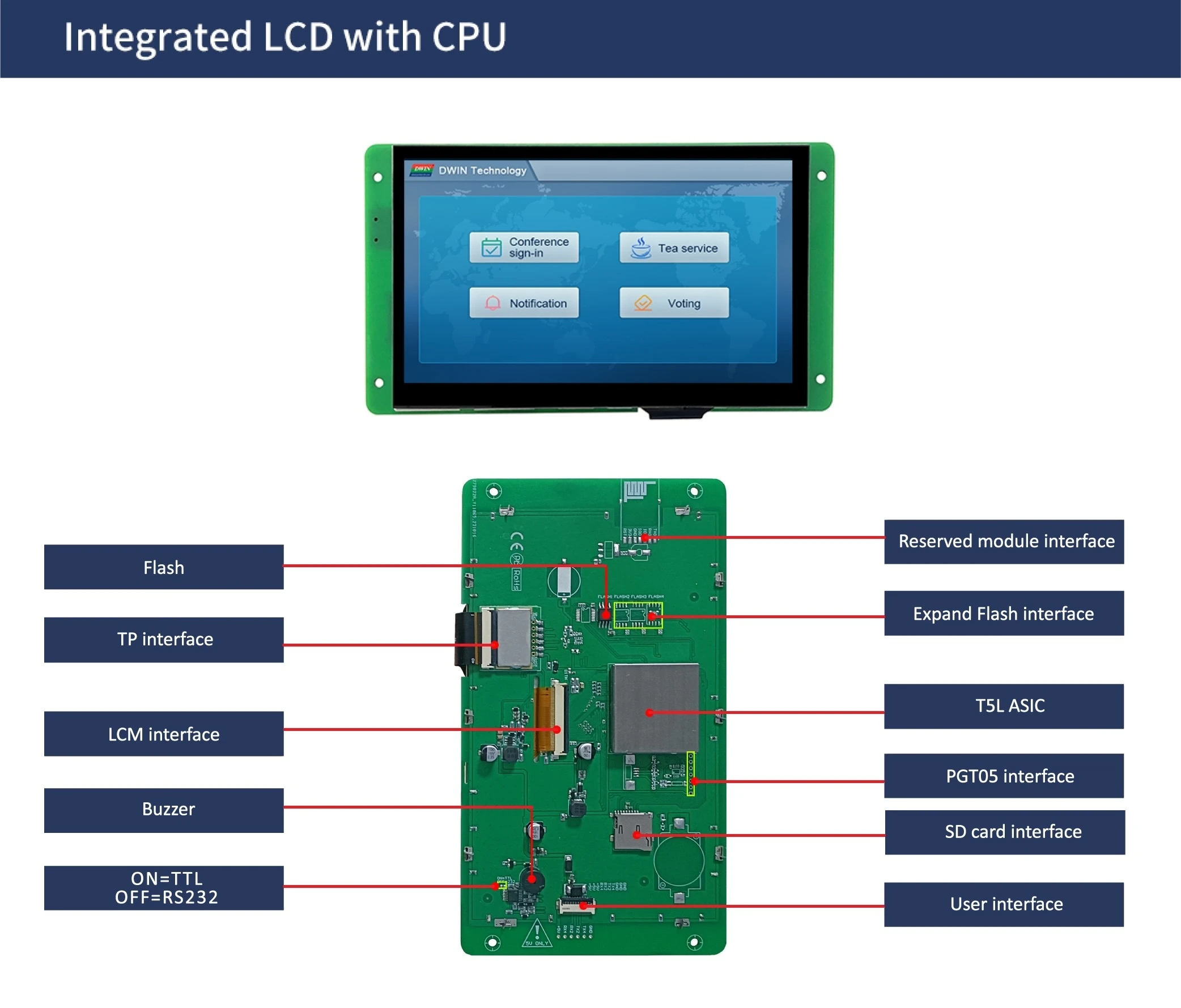

The 7.0-inch 800×480 TFT LCD display is a versatile HMI solution built on the T5L1 platform, running the DGUS II system for efficient and code-free interface development. With support for 16.7M colours and a clear TN panel, this display delivers reliable visual performance for industrial control panels, automation systems, and embedded applications. The integrated 16MB flash memory allows storage of GUI assets and project data, enabling smooth and responsive operation without external memory requirements. It supports resistive touch (with options for no touch or capacitive touch), making it adaptable to different application needs.

Designed for ease of development and integration, the module supports TTL and RS232 communication interfaces and allows program download via SD card or serial port. The DGUS V7.6 GUI development environment enables rapid UI creation without coding, while the dual-core architecture separates GUI handling and OS-level processing for enhanced flexibility. Developers can further customise functionality using the open DWIN OS kernel with DWIN OS language or KEIL C51, making this display suitable for advanced embedded system design and industrial-grade HMI solutions.

Key Features

  • 7.0 Inch TFT Display: 800 × 480 resolution with 16.7M colours
  • DGUS II System: Code-free GUI development using DGUS V7.6 tools
  • T5L1 Controller: Commercial-grade performance for industrial applications
  • Touch Options: Resistive touch (optional capacitive or no touch variants)
  • 16MB Flash Memory: Stores GUI assets and application data
  • Dual Development System: Supports DGUS II and TA instruction set
  • Flexible Interfaces: TTL and RS232 communication support
  • Easy Program Download: Via SD card or serial port
  • Open OS Kernel: Custom development using DWIN OS or KEIL C51
  • Standard Viewing Angle: 70°/70°/50°/70° (L/R/U/D)
