7.0 Inch 800x480 HMI LCD Display Capacitive Touch RS232/RS485

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480K070_03WTC
MPN:
DMG80480K070_03WTC
7.0 Inch 800x480 HMI LCD Display with capacitive touch, featuring 16MB flash, buzzer, RTC, and RS232/RS485 communication, designed for medical-grade applications.
Quantity
Unit Price (ex. GST)
1 - 9
₹ 4,232.00
10 or above
₹ 4,062.72
The 7.0 Inch 800x480 HMI LCD Display offers capacitive touch, 16MB flash, buzzer, RTC, and RS232/RS485 communication. This medical-grade display is perfect for precise, reliable control in medical devices, ensuring high-quality performance. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹4,993.76 inc. GST
₹4,232.00 ex. GST

Technical Specifications

Brand:
DWIN
Display Size:
7.0 inch
Resolution:
800x480
Display Panel:
IPS-TFT-LCD
Touch Type:
Capacitive
View Angle:
Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Color:
16.7M colors
Display Area:
154.08mm (W)x85.92mm (H)
Power Supply:
12V 1A DC
LCM interface:
FPC50_0.5mm, RGB interface
Memory:
16MB
Buzzer:
3V passive buzzer
SD Interface:
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 Interface:
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Brightness:
250nit
RTC:
Yes
User Interface:
8Pin_2.0mm(RS232),2Pin_2.0mm(RS485)
Interface:
RS232/RS485
Weight:
268g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Enhance Your Medical Devices with Precision Touch Control: Order the 7.0 Inch Medical Grade HMI LCD Display

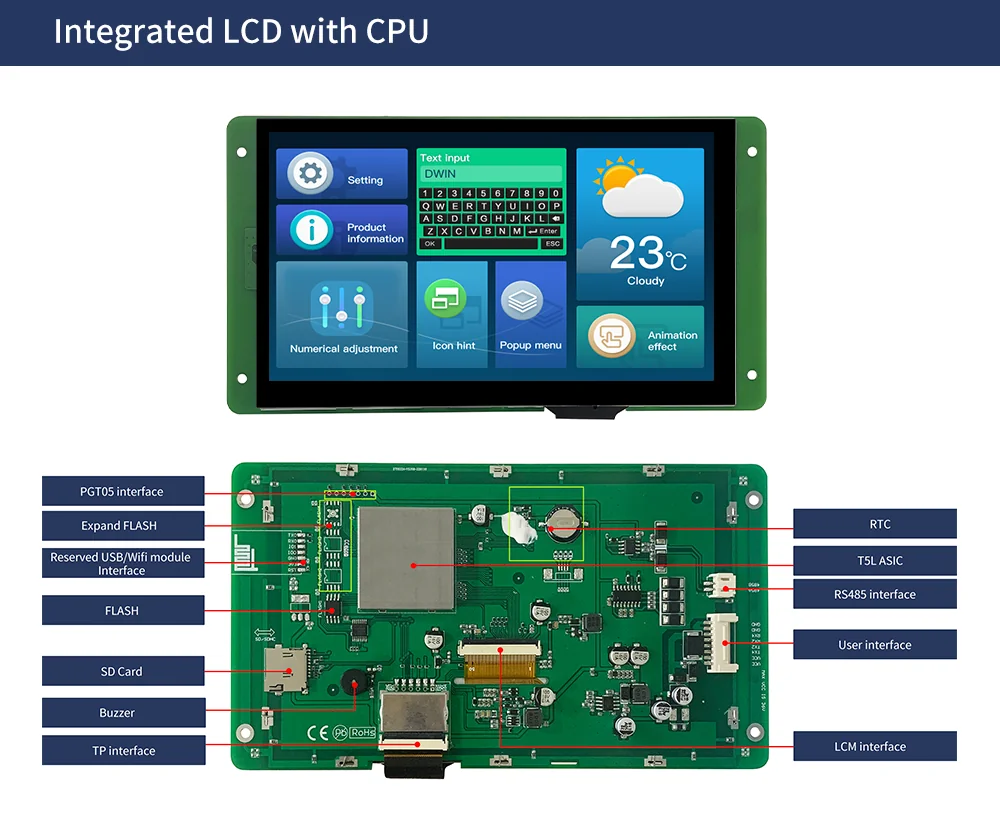

The 7.0 Inch 800x480 HMI LCD Display with Capacitive Touch is designed to meet the rigorous demands of medical applications. Featuring a high-resolution 800x480 display and capacitive touch functionality, this medical-grade display offers exceptional clarity and responsiveness. Built on the robust T5L1 ASIC platform, it supports RS232/RS485 communication, ensuring seamless integration into medical devices. With a built-in buzzer, RTC, and 16MB flash memory, this display provides comprehensive functionality to enhance your medical interface design.

Key Features:
  • High-Resolution Display: 7.0 inch 800x480 TFT LCD for sharp, clear visuals.
  • Capacitive Touch Functionality: Responsive touch screen, ideal for medical applications requiring precision.
  • Robust Communication Options: Supports RS232 and RS485 for reliable connectivity.
  • Comprehensive Development Environment: Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required.
  • Medical Grade Design: Built for reliability in medical environments, with built-in buzzer, RTC, and 16MB flash memory.
