7.0 Inch 800x1280 Commercial Linux Display Capacitive Touch 2GB LPDDR4 + 8GB eMMC

DWIN

No reviews yet Write a Review
SKU:
353-DMG12800C070_40WTC
MPN:
DMG12800C070_40WTC
7.0 Inch 800x1280 Embedded Linux Screen with Capacitive Touch – RK3566 Linux HMI Display
Quantity
Unit Price (ex. GST)
1 - 9
₹ 10,742.00
10 or above
₹ 10,312.32
7-inch 800x1280 Embedded Linux screen with capacitive touch, RK3566 processor, Linux 4.19, QT development, RS232/RS485/Ethernet connectivity. Perfect for HMI, kiosks, and IoT applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹12,675.56 inc. GST
₹10,742.00 ex. GST
15 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
7.0 inch
Resolution:
800x1280
Display Panel:
IPS
Touch Type:
Capacitive
View Angle:
85°/85°/85°/85°
Display Area:
94.20mm (W)*150.72mm (H)
Power Supply:
12V 1A DC
Brightness:
250nit

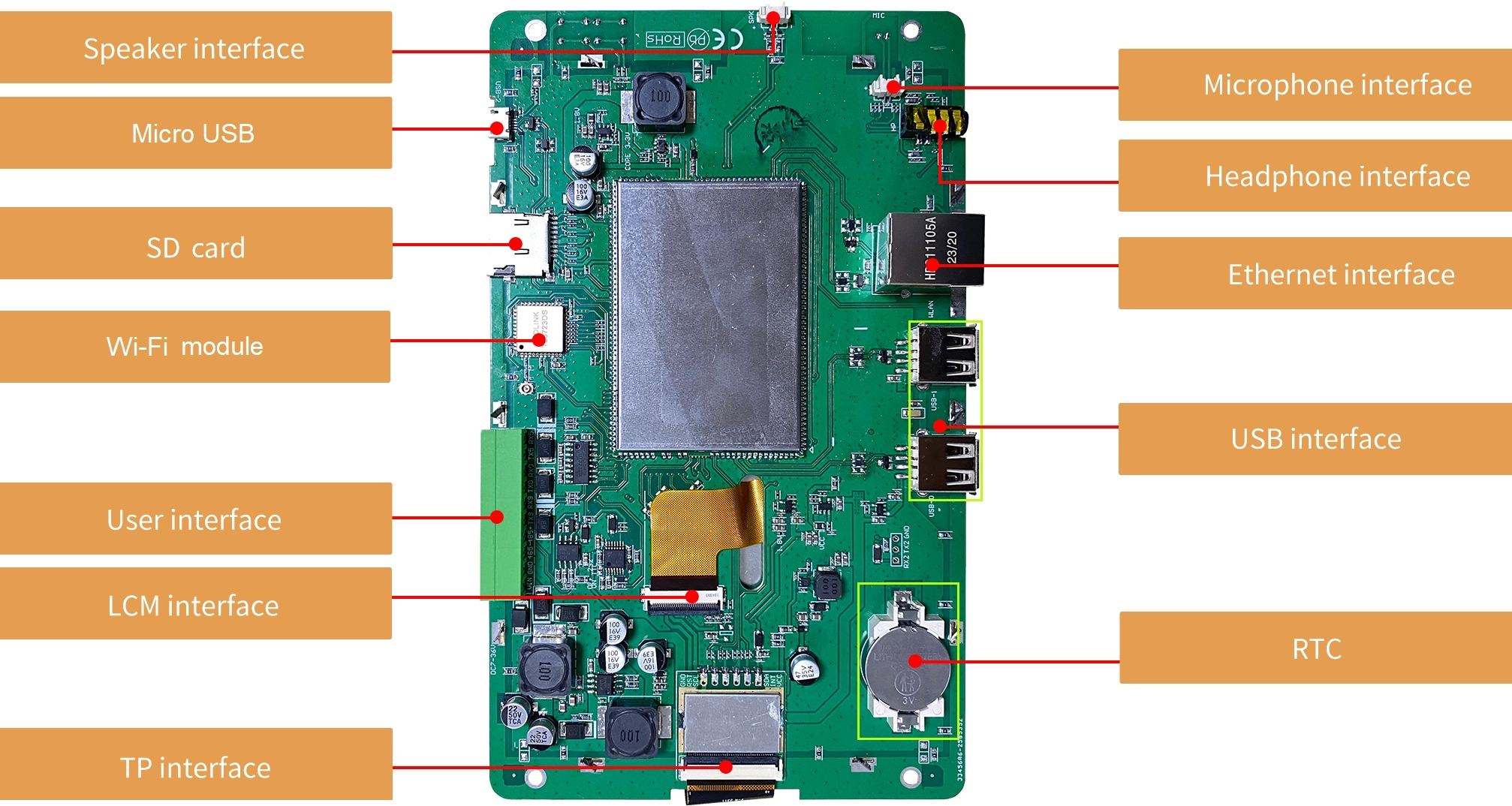

WiFi Interface:
IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4
USB Interface:
USB 2.0*2(HOST), Mrico USB*1(OTG)
RTC:
Accuracy: ±20ppm @25℃
User Interface:
10Pin_3.81mm Horizontal socket

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

7.0 Inch 800x1280 Embedded Linux Screen with Capacitive Touch Panel: Reliable High-Resolution HMI for Industrial & IoT Applications

The 7.0-inch 800x1280 Embedded Linux Screen is a commercial-grade display terminal powered by the RK3566 processor and running Linux kernel version 4.19. Designed for industrial control, IoT, kiosks, and HMI systems, it delivers a balance of durability and performance. Its IPS-TFT-LCD panel with 800×1280 resolution, 16.7M colours, and wide viewing angles ensures sharp, vibrant visuals, while the capacitive touch interface provides smooth, accurate operation.

This display adopts the QT development environment, enabling flexible secondary development and support for multi-language interfaces, vector fonts, picture libraries, video libraries, and audio playback. It offers strong connectivity with RS232, RS485, and Ethernet ports, and supports direct project updates via network cable connection with a PC. Compact yet powerful, it is an excellent choice for HMI panels, smart terminals, and embedded Linux-based applications.

Key Features:

  • Processor & OS: Based on RK3566 running Linux kernel 4.19 for stability and performance.
  • High-Resolution Display: 7-inch IPS-TFT-LCD panel, 800×1280 pixels, 16.7M colours, wide viewing angle.
  • Capacitive Touchscreen: Smooth and accurate touch experience for interactive control.
  • QT Development Environment: Supports secondary development for custom GUIs and applications.
  • Rich Libraries: Multi-language support with vector font, picture, video, and audio libraries.
  • Connectivity: Equipped with RS232, RS485, and Ethernet ports for industrial and IoT device communication.
  • Update Flexibility: Project updates via network cable connection with PC.
  • Application Areas: Ideal for HMI systems, kiosks, IoT dashboards, automation, and smart control panels.
