5G/4G/3G GNSS Module Designed For Jetson Orin, Includes RM520N-GL Module

Resources:

Wiki: www.waveshare.com/wiki/RM520N-GL_5G_for_Jetson_Orin

5G/4G/3G Module for Jetson Orin – RM520N-GL High-Speed Communication Expansion Board

The 5G/4G/3G Module for Jetson Orin is a high-performance wireless communication expansion board built around the Qualcomm X62 platform and integrated with the RM520N-GL 5G module, enabling ultra-fast mobile network connectivity and precise multi-constellation GNSS positioning. Designed specifically for NVIDIA Jetson Orin Nano and Orin NX platforms, this module ensures reliable and high-speed data transfer for industrial IoT, AI edge computing, robotics, and smart communication systems. Supporting both 5G NSA (Non-Standalone) and SA (Standalone) architectures, the module delivers multi-mode, multi-band global compatibility for 5G, 4G, and 3G networks. With dual-band GNSS positioning including GPS, Beidou, GLONASS, Galileo, and QZSS, it ensures accurate and stable location tracking across diverse environments.

Equipped with a USB 3.1 interface (compatible with USB 2.0), this board can connect directly to Jetson Orin, PCs, or Raspberry Pi, providing high-speed data throughput for 5G network access. Its M.2 B-Key slot and module selection switches support a wide range of 5G communication modules, including RM520N-GL, RM530N-GL, RM500U-CNV, and EM060K-GL — offering excellent flexibility for developers.

Key Features

• 5G/4G/3G Connectivity: Built on the Qualcommx62 platform, supports 5G NSA and SA networks with global multi-band support.
• Multi-GNSS Positioning: Dual-band GPS, Beidou, GLONASS, Galileo, and QZSS for accurate location and navigation.
• USB 3.1 Interface: Enables high-speed data transmission; backward compatible with USB 2.0.
• M.2 Expansion Slot: Standard M.2 B-Key slot with module selection switches; compatible with RM520N-GL, RM530N-GL, RM500U-CNV, and EM060K-GL modules.
• Dual SIM Functionality: One Nano SIM card slot and one eSIM slot (QFN-8, 5x6 mm), supporting dual SIM single standby with AT command switching.
• Antenna Connectivity: 4xSMA antenna connectors for improved signal performance and easy installation.
• UART Expansion: Reserved UART solder pads for additional data transmission and module customization.
• Power Management: Onboard power switch, reset button, and LED indicators for simple control and monitoring.
• Efficient Power Supply: Integrated power circuit supporting up to 3A output for stable operation.
• Versatile Compatibility: Works seamlessly with Jetson Orin, PCs, and Raspberry Pi platforms for AI, robotics, and industrial applications.

5G / 4G / 3G module For Jetson Orin

Supports 5G, 4G, and 3G networks and GNSS location.
Based on the Quectel RM520N-GL 5G global module, supports 3GPP 16.

Multi Host Support

Enabling 5G high speed connection for Jetson Orin / PC / Raspberry Pi

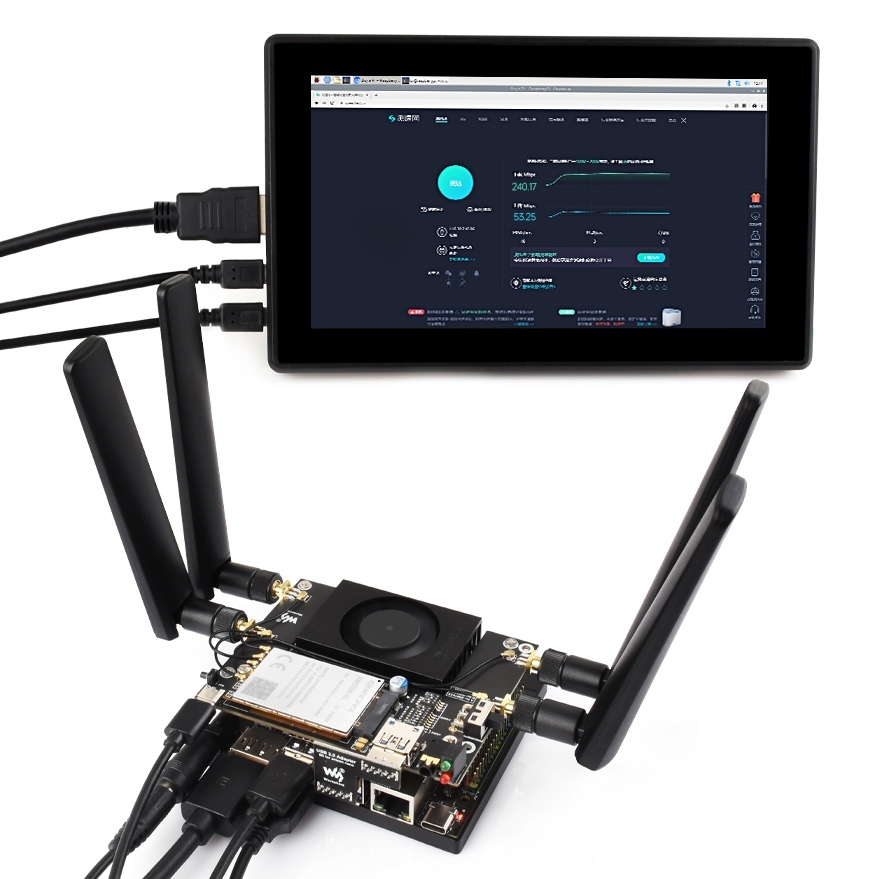

Connecting Jetson Orin to Internet

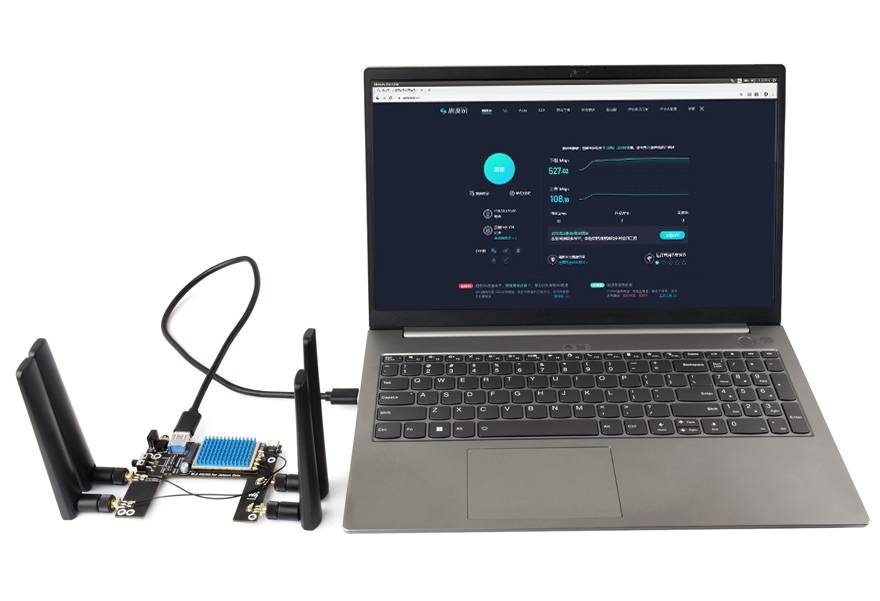

Connecting Windows To Internet

Stands For Idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.

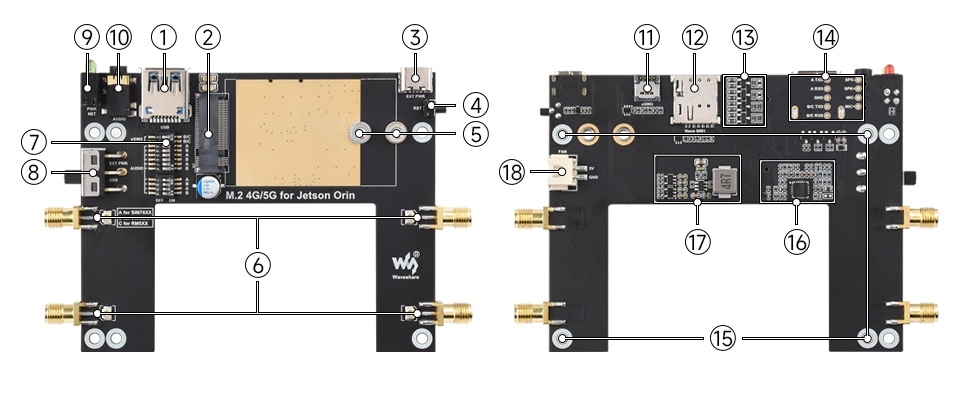

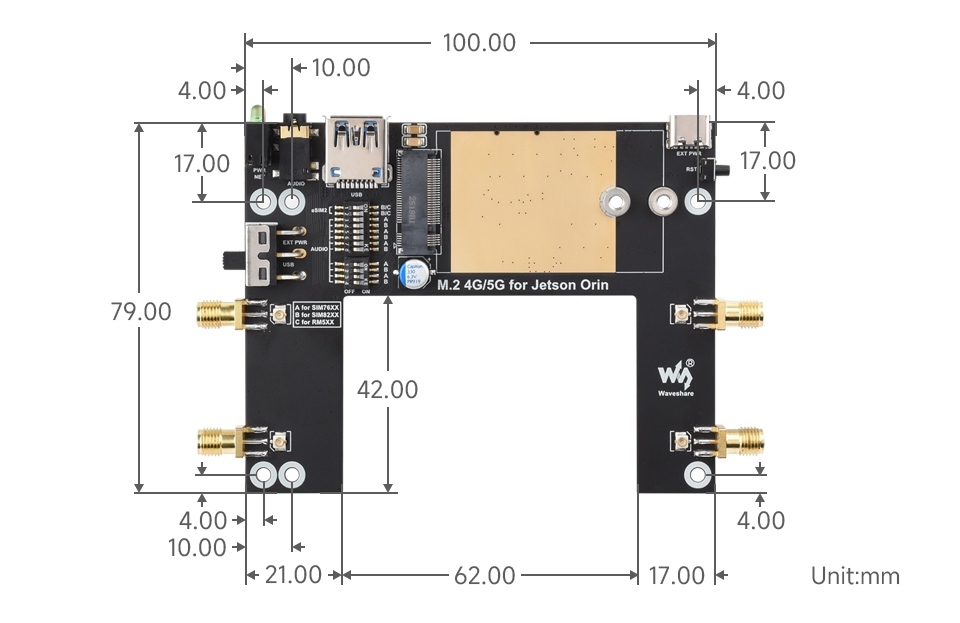

What's On Board

1. USB3.1 port
   USB 2.0 compatible, for connecting with different hosts
2. M.2 slot
   compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
3. USB Type-C port
   5V 3A power input, stable and flexible power supply
4. Reset button
5. Module fixing holes
   supports 3042 / 3052 package modules
6. Antenna connectors
   Supports quad antennas
7. Module settings switch
   Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
   Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;
   Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
8. Power supply switch
   Switch the power supply mode:
   When set to USB, the module is powered via the "1. USB3.1 port"
   When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
9. Indicator
   Easy to monitor the operating status of module
10. Audio jack
    SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
11. eSIM card slot
    QFN-8 (5 × 6) package, configurable via AT commands
12. Nano SIM card slot
    onboard dual SIM card slots, dual card single standby
13. Level conversion circuit
14. Reserved UART and audio interface pads
15. Mounting holes

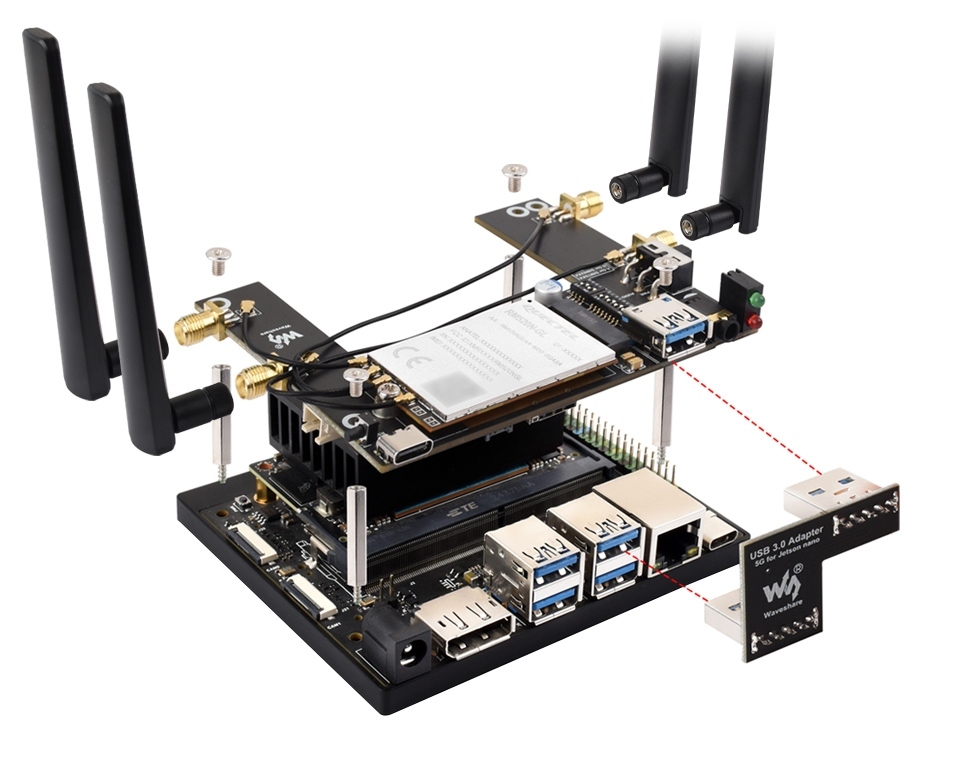

    for installing this module onto the Jetson Orin board via screws
16. Audio drive circuit
17. Power supply circuit
18. Fan header
    for 5V cooling fan

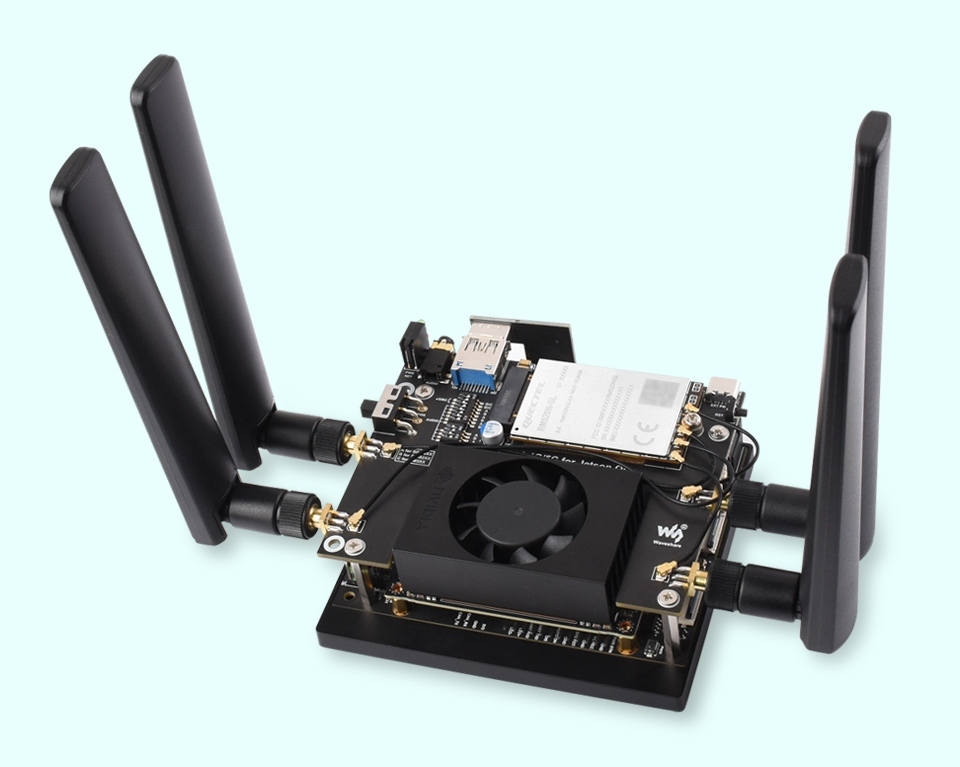

Installation
