5.83 inch E-Paper E-Ink Display HAT For Raspberry Pi

Waveshare

2 reviews Write a Review
SKU:
061-14597
MPN:
14597
5.83inch E-Paper E-Ink Display HAT For Raspberry Pi, 648×480 Pixels
Quantity
Unit Price (ex. GST)
1 - 9
₹ 4,454.00
10 or above
₹ 4,275.84
5.83-inch E-Paper E-Ink Display HAT for Raspberry Pi, perfect for DIY projects. Low power consumption, wide viewing angle, and sunlight readability make it ideal for various applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹5,255.72 inc. GST
₹4,454.00 ex. GST

Technical Specifications

Brand:
Waveshare
Display Size:
5.83 inch
Colors:
black, white
Grey Scale:
2
Resolution:
648x480
Display Size (mm):
119.232 × 88.320
Outline Dimension (mm):
125.4 × 99.5
Full Refresh Time (s):
5
Pi Header:
Yes
Interface:
SPI

Description

This 5.83inch E-Paper E-Ink Display HAT is designed for Raspberry Pi and features a resolution of 648×480 pixels. It provides a black/white dual-color display and utilizes an SPI interface. The display offers a low power consumption, wide viewing angle, and a paper-like displaying effect without requiring electricity. It is ideal for applications such as price tags, shelf labels, and industrial instruments. The display retains the last content for a long time, even when power is down. It does not have a backlight and is capable of refreshing with minimal power. The HAT is equipped with a standard Raspberry Pi 40PIN GPIO extension header, making it compatible with Raspberry Pi boards and Jetson Nano. It can be easily connected to controller boards like Raspberry Pi, Jetson Nano, Arduino, and STM32 through its SPI interface. The onboard voltage translator ensures compatibility with 3.3V/5V MCUs. The HAT comes with development resources and a manual, including examples for Raspberry Pi, Jetson Nano, Arduino, and STM32.


Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Package Content
  • 5.83inch e-Paper x1
  • e-Paper Driver HAT x1
  • RPi screws pack (2pcs) x1
  • PH2.0 20cm 8Pin x1
 Resources

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

Raspberry Pi, Jetson Nano in the photo are NOT included.

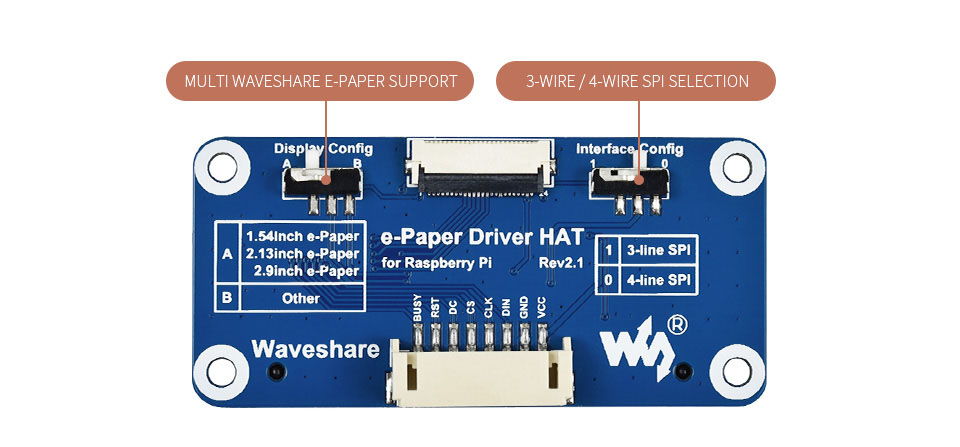

Onboard SPI Control Interface

For Use With Other Controller Boards Like STM32/Arduino

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

  • Super Market
  • Cashier-less Store
  • Shelf Label
  • Food Stuff Store
  • Hospital Ward
  • Conference Venue

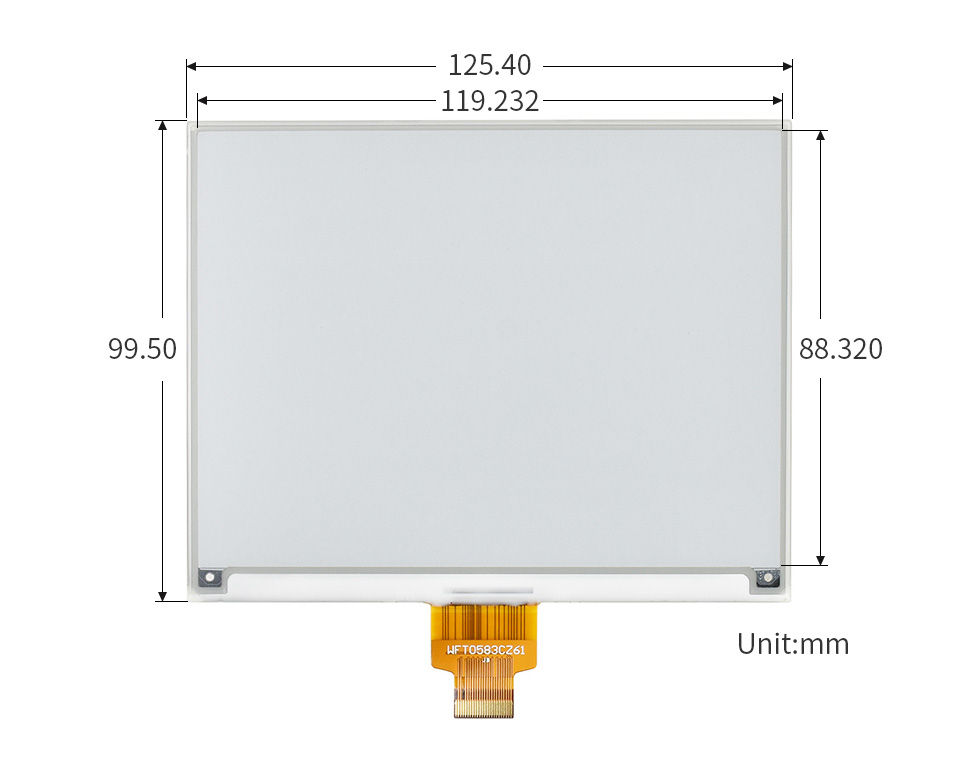

Outline Dimensions

FAQs:

Q: What are the dimensions and resolution of the 5.83-inch E-Paper E-Ink Display HAT?

A: The dimensions are 148mm x 88mm x 2.8mm (5.83 inches diagonally) and the resolution is 720 x 1080.

Q: Is the E-Paper E-Ink Display HAT compatible with all Raspberry Pi models?

A: It is compatible with Raspberry Pi models 4B/3B+/3B/Zero W/Zero 2W/Zero and requires no soldering.

Q: What are the power requirements of the E-Paper E-Ink Display HAT?

A: It operates on 3.3V/5V power supply and consumes ultra low power, making it ideal for battery-powered projects.

Q: Can I use the E-Paper E-Ink Display HAT for outdoor applications?

A: Yes, it is sunlight readable and has a wide viewing angle, making it suitable for outdoor applications like signage or information displays.

Q: What kind of projects can I create with the E-Paper E-Ink Display HAT?

A: You can create various projects like weather stations, e-readers, price tags, information displays, and more due to its versatility and low power consumption.
