5.7 Inch 640x480 HMI LCD Display Capacitive Touch, 16MB Flash, Buzzer, RTC, SD Interface, TTL/RS232 (Industrial Grade)

DWIN

No reviews yet Write a Review
SKU:
353-DMG64480T057_01WTC
Manufacturer Part Number:
DMG64480T057_01WTC
₹10,614.10 inc. GST
₹8,995.00 ex. GST
5.7 inch Industrial Grade HMI LCD Display with Capacitive Touch Screen
Industrial-grade 5.7 inch HMI LCD display with 640x480 resolution, capacitive touch screen, 16MB Flash, SD card interface, TTL/RS232 for industrial automation and control systems. View full description
₹10,614.10 inc. GST
₹8,995.00 ex. GST
4 people looking at this.

Description

Elevate Your Industrial Control with the 5.7 Inch DMG64480T057_01W HMI LCD Display

Empower your industrial automation and control systems with the robust and versatile 5.7 Inch DMG64480T057_01W HMI LCD Display. Engineered for demanding environments, this industrial-grade display combines a vibrant 640x480 resolution with capacitive touch functionality for seamless user interaction.

Key Features:

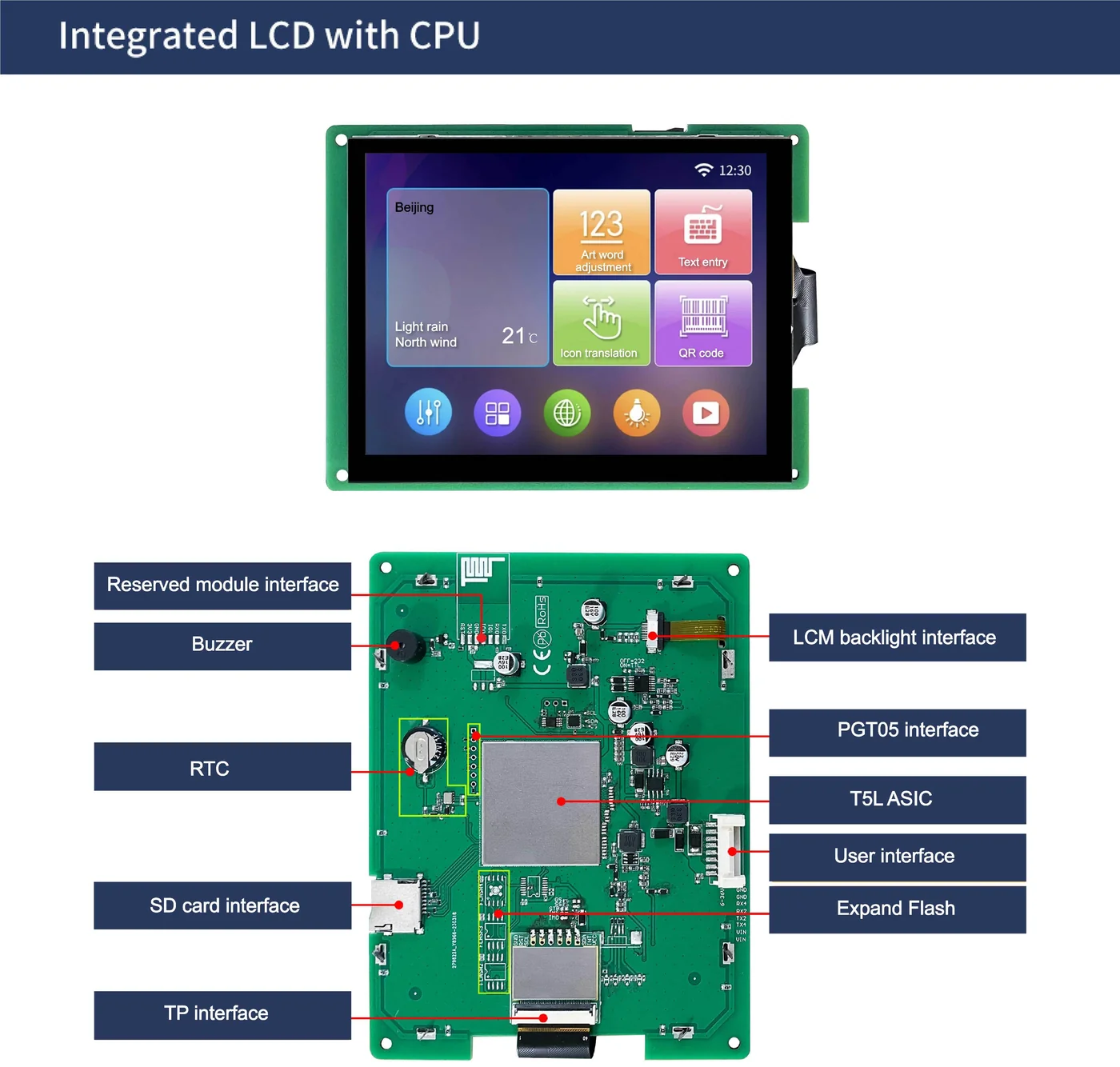

  • Industrial-Strength Reliability: Built with a T5L0 chip and the DGUS II system, this display is designed to withstand the rigors of industrial settings, ensuring consistent performance even under challenging conditions. The IPS-TFT-LCD panel delivers wide viewing angles and vivid colors, while the conformal coating adds an extra layer of protection.
  • Intuitive Touch Control: The capacitive touch screen enables precise and responsive control, allowing operators to navigate menus, input data, and monitor processes with ease.
  • Powerful Performance: The 16MB NOR Flash provides ample storage for fonts, images, and audio files, supporting a rich and informative user interface. The integrated buzzer offers auditory feedback, while the SD card interface facilitates convenient data transfer and updates.
  • Versatile Connectivity: With TTL/RS232 communication options and a baud rate ranging from 3150 to 3225600 bps, this display seamlessly integrates into your existing industrial control systems.
  • Long-lasting Backlight: The backlight boasts a service life of over 30,000 hours, ensuring optimal visibility and longevity.
  • Recovery Solution: The PGT05 interface allows for easy kernel updates, ensuring your display remains functional even after unexpected crashes.

Ideal Applications:

  • Industrial automation and control systems
  • Manufacturing equipment
  • Process monitoring and visualization
  • Human-machine interfaces (HMIs)
  • And more!
Enhance your industrial control capabilities with the 5.7 Inch DMG64480T057_01W HMI LCD Display – the perfect blend of durability, functionality, and user-friendliness.

Accessories Required

Resources

Technical Specifications

Brand:
DWIN
Display Size:
5.7 inch
Resolution:
640x480
Display Panel:
IPS-TFT-LCD
Touch Type:
Capacitive
View Angle:
Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Color:
18-bit 6R6G6B
Display Area:
115.20mm (W)x86.40mm (H)
Power Supply:
12V 1A DC
LCM interface:
FPC40_0.5mm, RGB interface
Memory:
16MB
Buzzer:
3V passive buzzer
SD Interface:
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 Interface:
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Brightness:
450nit
RTC:
Yes
Reserved USB Interface:
Horizontal USB interface, Used for firmware burning
User Interface:
8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Interface:
TTL/RS232
Weight:
245g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
