4 inch Resistive Touch Screen LCD Designed for Raspberry Pi, 800×480 resolution - Waveshare

Waveshare

2 reviews Write a Review
SKU:
061-12030
MPN:
12030
Quantity
Unit Price (ex. GST)
1 - 9
₹ 2,720.00
10 or above
₹ 2,611.20
Waveshare's 4-inch 800x480 IPS display with resistive touch is designed for Raspberry Pi. Features wide viewing angles and includes drivers for Raspbian/Ubuntu. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,209.60 inc. GST
₹2,720.00 ex. GST
16 people looking at this.

Technical Specifications

Brand:
Waveshare
Display Size:
4.0 inch
Resolution:
800x480
Interface:
HDMI
Display Panel:
IPS
View Angle:
170 degree
Touch Type:
Resistive
Touch Port:
SPI
Touchened Glass Panel:
No
Fully Laminated:
No
Speaker:
No
Signal Output:
No
Device Support - PI:
Yes
Device Support - Jetson Nano:
No
Device Support - PC:
Display Only

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

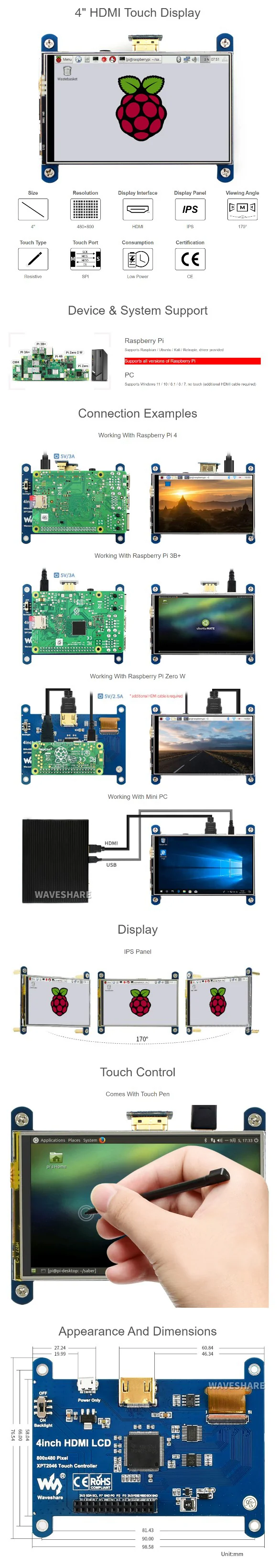

This 800x480 High Resolution Touch Screen Display is designed for use with Raspberry Pi. It features Resistive Touch Control and IPS technology, providing a high-quality display from a very wide viewing angle. The touch screen display is compatible with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable). The drivers are provided, and it works with your own Raspbian/Ubuntu directly. When used as a computer monitor, the touch panel is unavailable, and an HDMI cable is required. The HDMI interface allows for displaying without any I/Os required, but the touch panel still requires I/Os. The backlight can be turned off to lower power consumption, making it an energy-efficient option.

Features
  1. 800x480 high resolution
  2. Resistive touch control
  3. IPS technology, high quality and perfect displaying from very wide viewing angle
  4. Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  5. Drivers provided (works with your own Raspbian/Ubuntu directly)
  6. Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
  7. HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  8. Backlight can be turned off to lower power consumption
Package Content
  1. 4inch HDMI LCD x 1
  2. HDMI connector x 1
  3. Touch pen x 1
  4. RPi screws pack (4pcs) x 1
Development Resources

External Dimension

4inch-HDMI-LCD-dimension

FAQs:

Q: What is the screen resolution of this LCD?

A: The screen resolution is 800x480 pixels.

Q: Is this LCD compatible with all Raspberry Pi models?

A: Yes, it is designed for Raspberry Pi and compatible with all models.

Q: Does this LCD use a capacitive or resistive touch screen?

A: It uses a resistive touch screen.

Q: Are drivers provided for this LCD?

A: Yes, drivers are provided for Raspbian/Ubuntu operating systems.

Q: What type of screen technology does this LCD use?

A: It uses IPS (In-Plane Switching) technology for wide viewing angles.
