3.5 inch Touch Screen TFT LCD Designed for Raspberry Pi, 320x480 resolution - Waveshare

Waveshare

1 review Write a Review
SKU:
061-9904
MPN:
9904
3.5 inch resistive touch TFT display for Raspberry Pi with 480 x 320 resolution and SPI interface
Quantity
Unit Price (ex. GST)
1 - 9
₹ 1,815.00
10 - 49
₹ 1,724.25
50 or above
₹ 1,633.50
3.5 inch resistive touch TFT display for Raspberry Pi featuring 480 x 320 resolution, SPI interface and responsive touch input for embedded systems, IoT projects, industrial control panels and portable electronics. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,141.70 inc. GST
₹1,815.00 ex. GST

Technical Specifications

Brand:
Waveshare
Display Panel:
TFT
Interface:
SPI
Touch Type:
Resistive
Touch Screen Controller:
XPT2046
Colors:
65536
Backlight:
LED
Resolution:
320x480
Aspect Ratio:
8:5
Display Size:
3.5 inch
Shell Type:
No Shell

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Wiki: www.waveshare.com/wiki/3.5inch_RPi_LCD_(A)

3.5 Inch Resistive Touch Display for Raspberry Pi with 480 x 320 Resolution and SPI Interface

The 3.5 Inch Resistive Touch Display (A) for Raspberry Pi is a compact TFT LCD designed to add a responsive graphical interface to Raspberry Pi projects. Featuring a 3.5-inch display with a resolution of 480 x 320 pixels, it provides clear visuals for embedded applications, human-machine interfaces (HMI), portable devices, and educational projects. The integrated resistive touch panel enables accurate touch input using a finger, stylus, or gloved hand, making it suitable for industrial and field applications.

The display communicates through the SPI interface, allowing straightforward integration with Raspberry Pi boards while occupying minimal GPIO resources. Its compact design and reliable touch functionality make it ideal for DIY electronics, automation systems, IoT projects, instrumentation, and portable control panels where a small yet functional display is required.

Key Features

  • 3.5 Inch TFT Display: Compact LCD suitable for embedded and portable applications.
  • 480 x 320 Resolution: Delivers clear and detailed graphical output.
  • Resistive Touch Panel: Supports touch input using a finger, stylus, or gloves.
  • SPI Communication: Simple interface for Raspberry Pi integration.
  • Designed for Raspberry Pi: Compatible with Raspberry Pi development boards.
  • Compact Form Factor: Suitable for space-constrained designs.
  • Responsive Touch Operation: Enables interactive user interfaces and control panels.
  • Easy Integration: Designed for rapid development and prototyping.
  • Low GPIO Usage: SPI interface reduces the number of required GPIO pins.
  • Reliable Display Performance: Suitable for continuous embedded operation.

Applications

  • Raspberry Pi projects
  • Human-machine interfaces (HMI)
  • Industrial control panels
  • IoT devices
  • Home automation systems
  • Portable embedded systems
  • Test and measurement equipment
  • Educational electronics
  • DIY electronics projects
  • Data monitoring and display systems

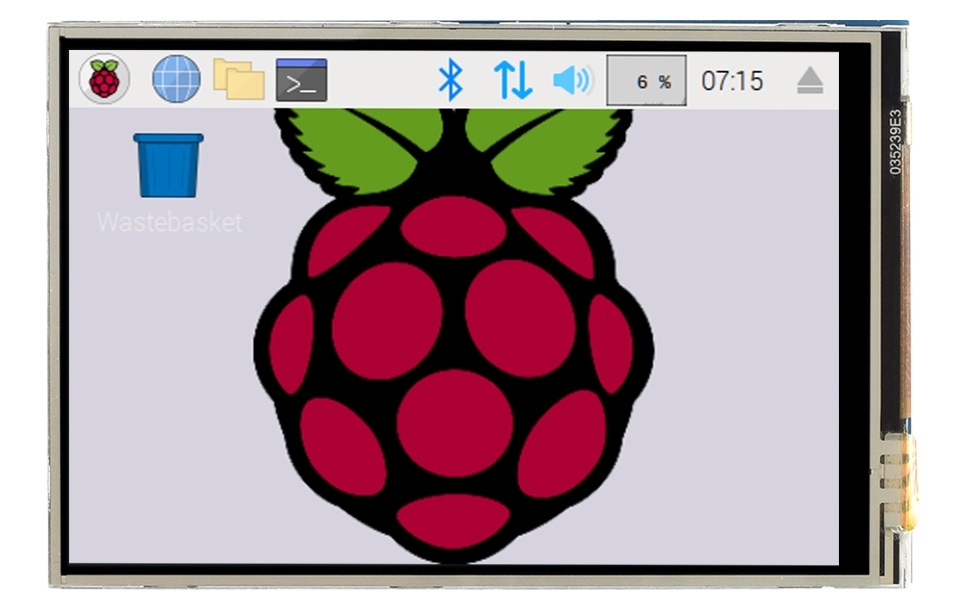

3.5-inch Resistive Touch Display

Connection Examples

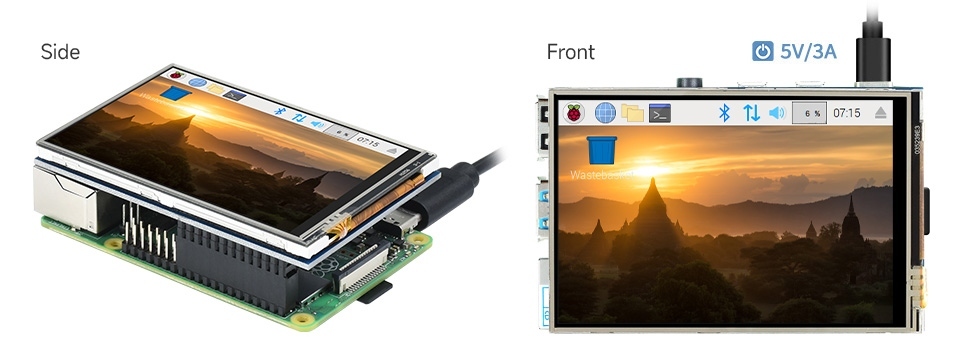

Working with Raspberry Pi 4

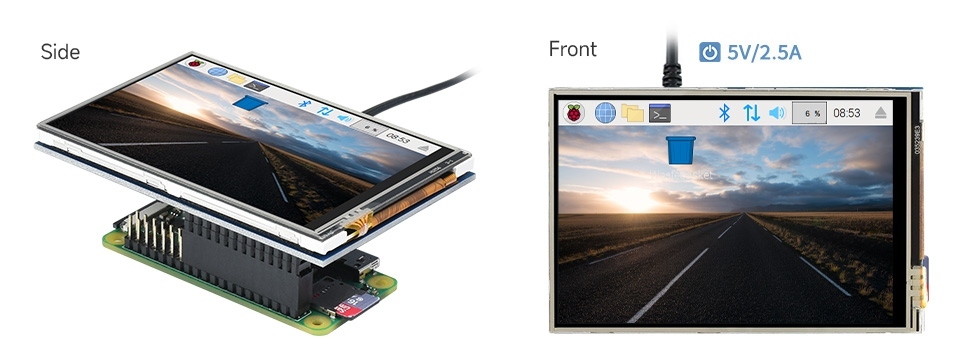

Working with Raspberry Pi Zero W

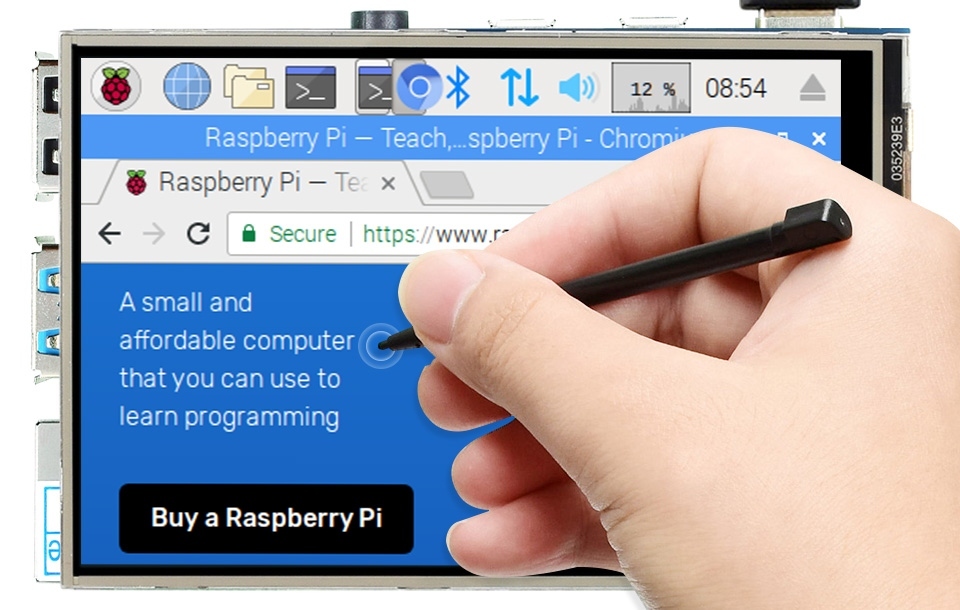

Touch Control

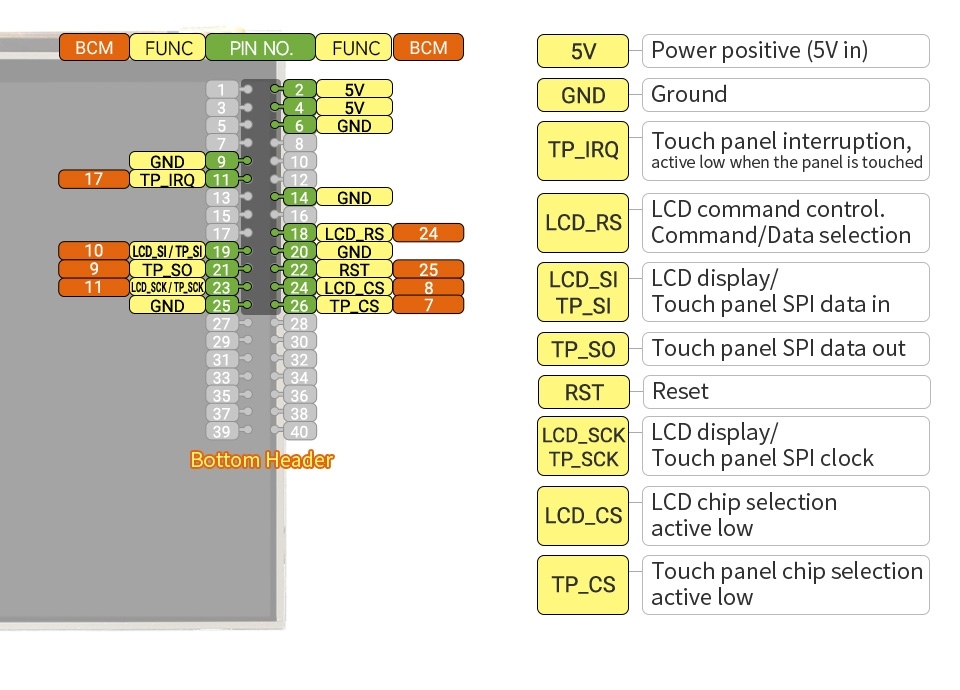

Pinout Definition

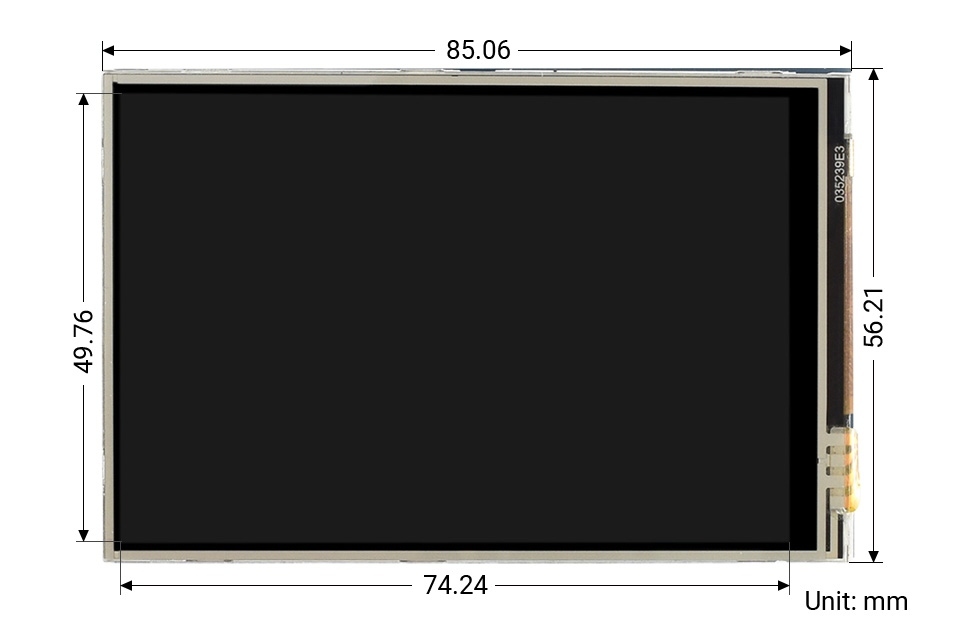

Dimensions

Package Content:
  1. 3.5inch RPi LCD (A) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
