Bidirectional Water-Cooled 40A Electronic Speed Controller for RC Ships, Underwater Thrusters, and Marine Propulsion Systems - 2-6S LiPo Compatible with Integrated 5V 3A UBEC
This bidirectional water-cooled 40A electronic speed controller is designed for stable and efficient motor control in marine and underwater remote-control applications. Supporting 2-6S LiPo battery input, it delivers reliable 40A continuous current output along with a regulated 5V 3A UBEC for powering receivers and onboard electronics. The water-cooling system - fed through a 4.8 mm fin interface — ensures effective heat dissipation during prolonged operation, making it well-suited for RC ships, pneumatic propulsion systems, and underwater thrusters.
Built for responsive and precise handling, this ESC offers smooth bidirectional control with direct-reverse functionality, enabling quick forward and reverse switching without any braking delay. Its plug-and-play operation eliminates throttle stroke calibration, allowing fast setup and easy integration into existing marine builds. With durable construction and consistent power delivery, it performs reliably in demanding underwater and marine environments where continuous operation and quick throttle response are critical.
Key Features
- Bidirectional Control: Supports 1:1 forward and reverse power output with direct-reverse switching and no brake delay for precise manoeuvrability

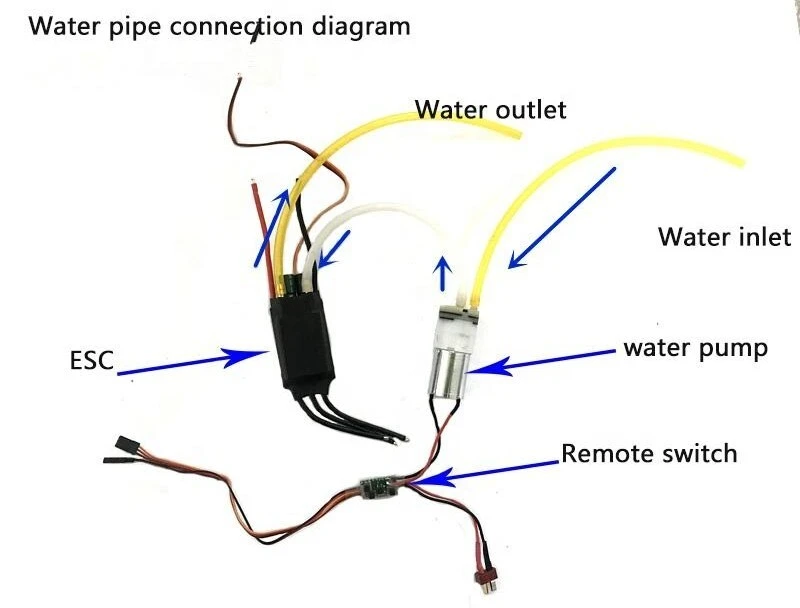

- Water-Cooled Design: Integrated water-cooling system with a 4.8 mm fin interface ensures efficient heat dissipation during continuous high-load operation
- 40A Current Rating: Delivers stable 40A continuous output suitable for medium-power marine motor applications
- 2-6S LiPo Compatibility: Supports a wide voltage range for flexible use across various RC and underwater propulsion setups
- Built-In UBEC: Provides 5V 3A regulated output to power receivers and onboard electronics without an external regulator
- Plug-and-Play Setup: No throttle stroke calibration required — ready to install and operate out of the box
- Quick Throttle Response: Fast forward and reverse switching ensures good handling and responsive control
- Wide Application Support: Compatible with RC cars, RC ships, underwater thrusters, and pneumatic propulsion units
Applications
- RC boats and remote-control ships requiring bidirectional motor control
- Underwater thrusters and submersible drone propulsion systems
- Pneumatic propulsion units for marine and underwater builds
- RC cars and ground-based platforms requiring a reversible motor drive
- Custom marine builds with 2-6S LiPo power systems
