DYP E08 4-In-1 UART Multi-Channel Ranging Module Converter for Multi-Direction Distance Detection
The DYP E08 is a 4-channel UART multi-channel ranging module converter designed to connect and manage up to 4 ultrasonic or ranging modules simultaneously. It serves as a functional interface between a host controller and multiple ranging sensors, enabling simultaneous, cross, or polling-based operation modes depending on the application requirement.
Response time is determined by the output interface in use, making this converter well-suited for time-sensitive detection tasks. The module supports a wide DC input range of 5V to 24V, allowing deployment across diverse embedded and industrial setups without the need for additional voltage regulation.

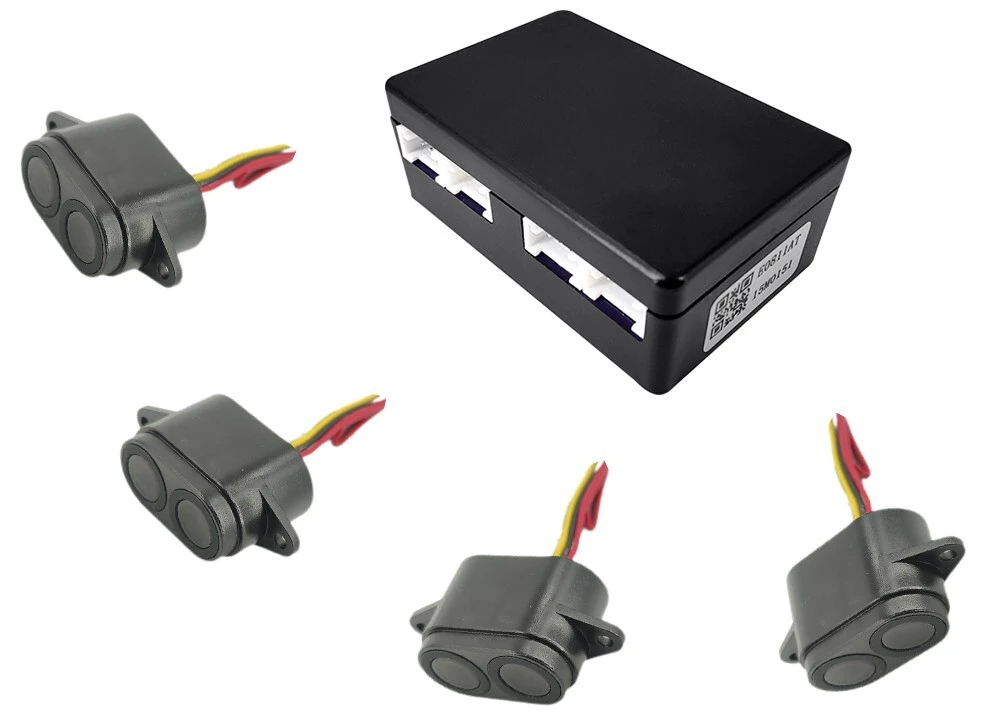

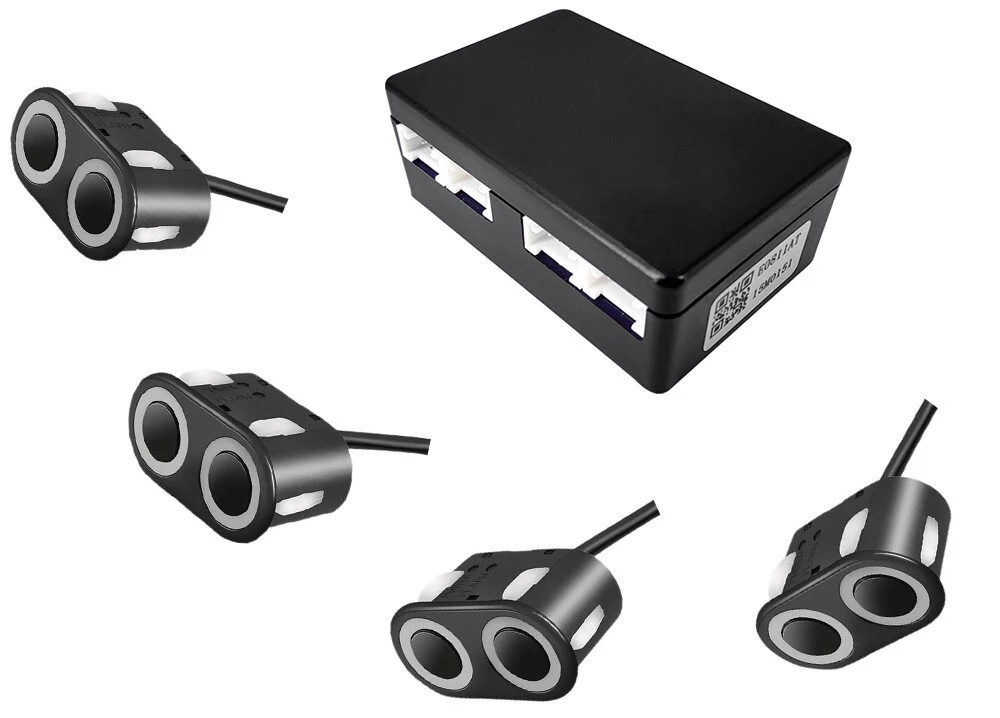

The E08 is built for multi-directional distance monitoring. By connecting 4 ranging modules in different orientations, it enables 360-degree proximity sensing, which is particularly useful in robotic navigation and obstacle avoidance systems. Alternatively, all 4 modules can face the same direction for redundant distance confirmation, improving measurement reliability in critical applications.
Anti-static protection conforming to the IEC 61000-4-2 standard ensures long-term operational stability in environments where electrostatic discharge is a concern.
Key Features
- Wide Input Voltage Range: Operates on DC 5V to 24V, compatible with a broad range of embedded and industrial power supplies
- 4-Channel Simultaneous Operation: Connects 1 to 4 ranging modules for simultaneous, cross, or polling-mode distance measurement
- Multiple Detection Configurations: Mount modules in different directions for multi-directional coverage or in the same direction for distance confirmation
- Stable Data Output: Delivers consistent and reliable distance data regardless of operating mode
- Fast Response Time: Optimised for low-latency operation when all 4 channels are active simultaneously
- Anti-Static Protection: Designed to meet IEC 61000-4-2 electrostatic discharge compliance
- Wide Operating Temperature: Rated for use between -15 degrees C and +60 degrees C
Applications
- Robot obstacle avoidance and autonomous navigation
- Automated conveyor and material handling control
- Multi-direction proximity detection in industrial automation
- Distance confirmation systems requiring redundant measurement
- AGV (Automated Guided Vehicle) guidance and collision prevention
- Smart parking sensors and vehicle detection systems
- Security and perimeter monitoring setups
