4.3 Inch 480x800 HMI LCD Display Capacitive Touch, 16MB Flash, Buzzer, RTC, SD Interface, TTL/RS232 (Industrial Grade)

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480T043_01WTC
MPN:
DMG80480T043_01WTC
A 4.3 inch HMI LCD display with capacitive touch screen
Quantity
Unit Price (ex. GST)
1 - 9
₹ 2,817.92
10 or above
₹ 2,705.20
Industrial-grade 4.3" HMI LCD display with capacitive touch, 480x800 resolution, 16MB Flash, SD card, TTL/RS232, and easy-to-use GUI development software. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,325.15 inc. GST
₹2,817.92 ex. GST
3 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
4.5 inch
Resolution:
480x800
Display Panel:
IPS-TFT-LCD
Touch Type:
Capacitive
View Angle:
Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Color:
18-bit 6R6G6B
Display Area:
93.60mm (W)x56.16mm (H)
Power Supply:
12V 1A DC
LCM interface:
FPC40_0.5mm, RGB interface
Memory:
16MB
Buzzer:
3V passive buzzer
SD Interface:
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 Interface:
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Brightness:
250nit
RTC:
Yes
Reserved USB Interface:
Horizontal USB interface, Used for firmware burning
User Interface:
8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Interface:
TTL/RS232
Weight:
120g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

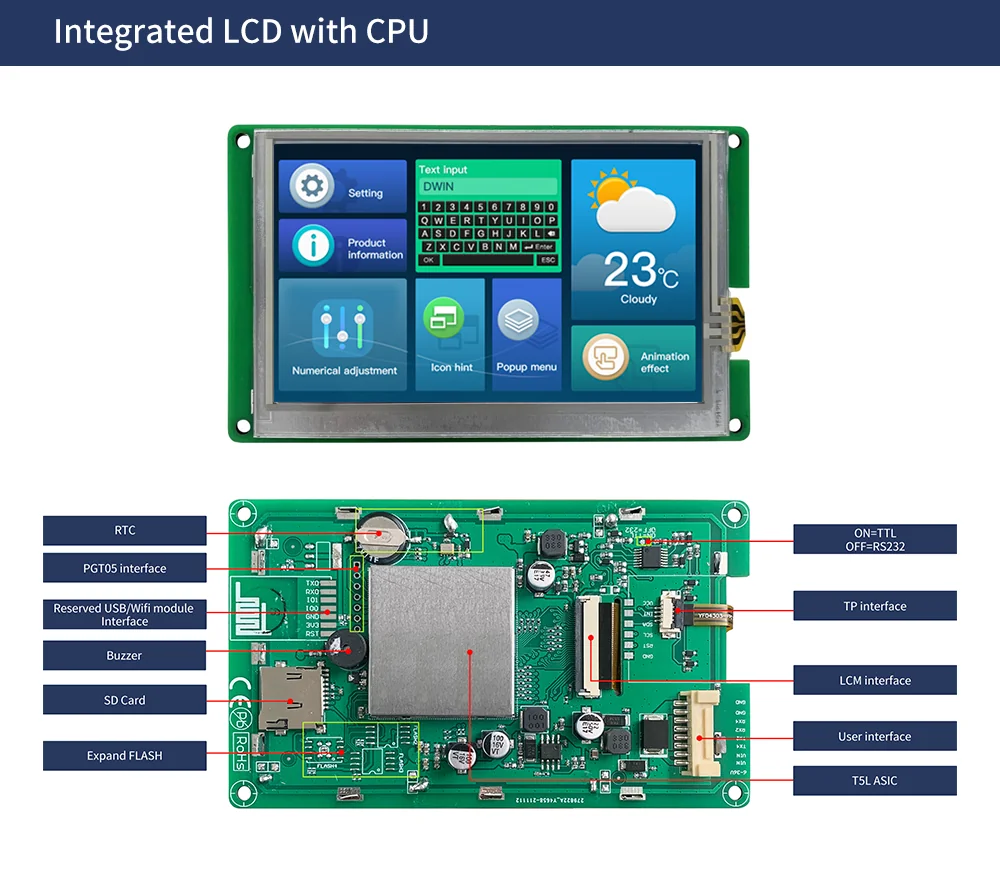

Elevate Your Industrial Interface: 4.3" HMI LCD Display with Capacitive Touch

Empower your industrial applications with the precision and responsiveness of our 4.3-inch HMI LCD display. Engineered for seamless integration and intuitive operation, this display is the ideal solution for visualizing and controlling your processes.

Key Features:

  • Brilliant Visuals: Immerse yourself in the clarity of the 480x800 resolution, self-designed T5L0 IPS display. The 262K color depth ensures vibrant and accurate representation of your data.
  • Capacitive Touch: Experience smooth and precise interaction with the capacitive touchscreen. Navigate menus, adjust settings, and monitor data with ease.
  • Versatile Connectivity: Choose between TTL or RS232 interfaces for seamless integration with your existing systems. The 8-pin 2.0mm cable ensures a reliable connection.
  • Flexible Development: Effortlessly create custom graphical user interfaces (GUIs) with DWIN DGUS V7.6 software. No coding required, simply drag and drop elements to design your ideal interface.
  • Dual-Core Power: The GUI and OS dual-core architecture ensures smooth operation and responsiveness. Customize the DWIN OS kernel with DWIN OS language or KELI C51 for advanced functionality.
  • Wide Viewing Angles: Enjoy clear visuals from any angle with 85/85/85/85 (L/R/U/D) wide viewing angles.
  • Industrial Durability: Built to withstand the rigors of industrial environments, this display is backed by 16MB Flash, a buzzer, RTC, SD interface, and a robust industrial-grade design.

Optimize your operations and enhance your user experience with our cutting-edge HMI LCD display. Contact us today to learn more about how this display can revolutionize your industrial interface.
