4.3 inch 480x272 COF TFT-LCD Display Capacitive Touch Flash 8MB UART

Resources:

Datasheet

4.3 Inch COF Industrial Smart TFT HMI Display with Capacitive Touch and DGUS II System

The DMG48270F043_01WTC is a compact 4.3-inch industrial smart HMI display from DWIN Technology, engineered around the T5L0 dual-core ASIC and powered by the DGUS II system. It integrates display, touch, processing, and control logic directly into the LCD module using a COF (Chip-on-Flex) structure, making it ideal for applications that demand a thin profile, lightweight construction, and simplified system design.

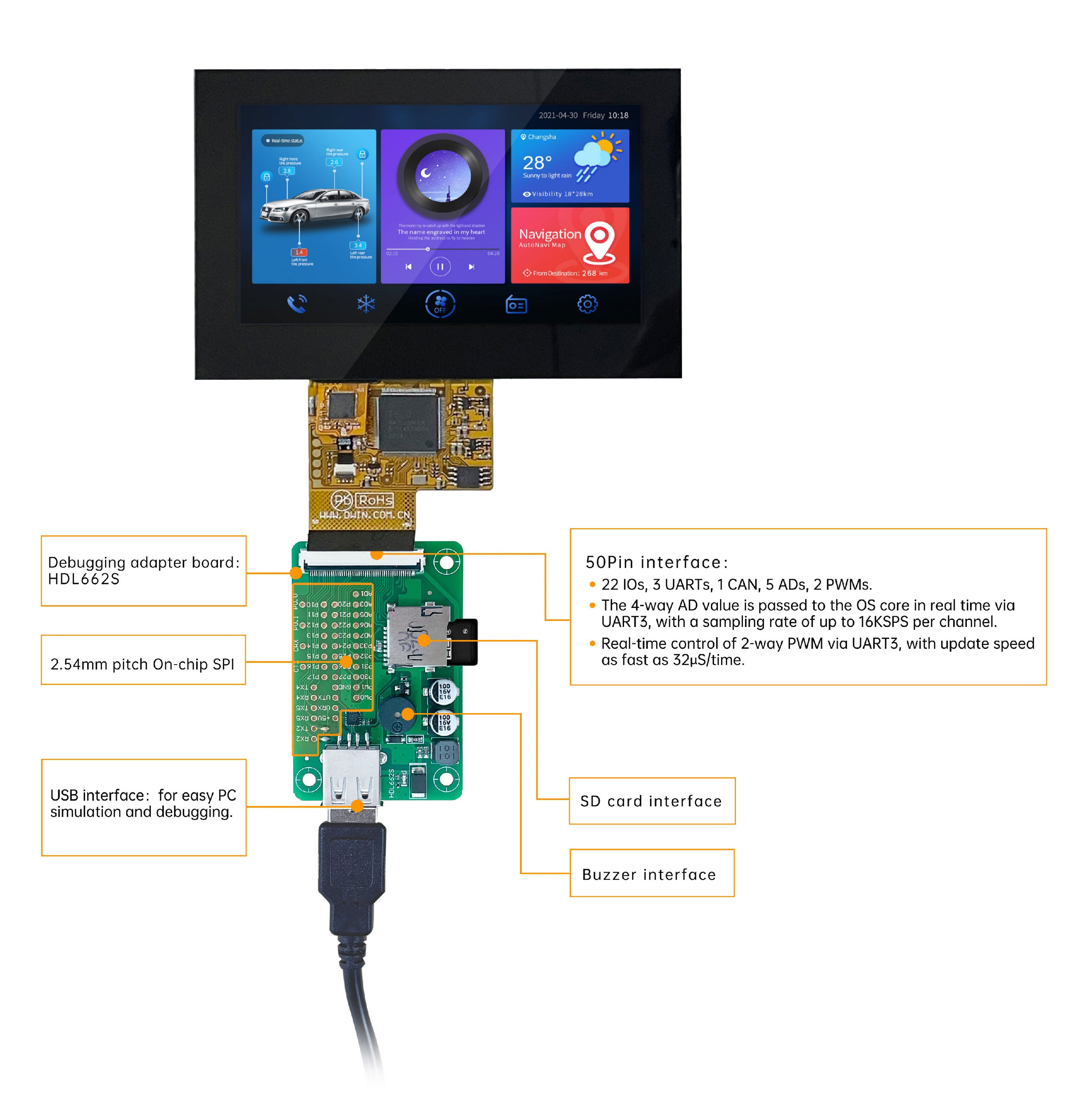

Featuring a 480×272 resolution TN-TFT panel with 262K colours and a responsive capacitive touch screen, this smart display delivers stable visual performance for embedded and industrial interfaces. The 50-pin 0.5 mm FPC connector exposes rich peripheral resources including GPIO, UART, CAN, ADC, and PWM, enabling easy secondary development without an external MCU. Operating from a 3.6–5.5 V supply with low power consumption, the DMG48270F043_01WTC is well suited for control panels, portable instruments, and cost-sensitive HMI designs.

Key Features:

• 4.3 Inch TFT Display: 480x272 resolution with 262K colours
• Capacitive Touch Panel: G+G structure with ≥6H tempered glass surface
• DGUS II Smart HMI System: Runs directly on T5L0 ASIC
• COF Architecture: Ultra-thin, lightweight design with integrated core circuitry
• Dual-Core 8051 ASIC: Separate GUI and application processing
• Rich I/O via FPC: GPIO, UART, CAN, ADC, and PWM for easy expansion
• Low Power Operation: <2 W typical consumption
• Wide Supply Range: 3.6–5.5 V DC (5 V typical)
• High Integration: No external MCU required for UI handling

Applications

• Industrial Control Interfaces: Compact operator panels
• Embedded Systems: Space- and cost-constrained designs
• Smart Instruments: Measurement and monitoring equipment
• Consumer and Portable Devices: Lightweight touch-based interfaces
• Automation Panels: Human–machine interaction terminals
