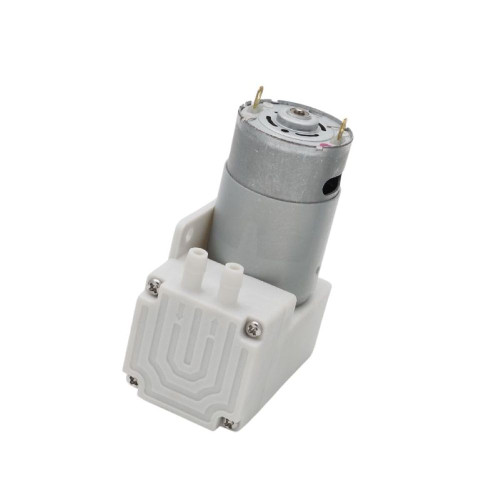

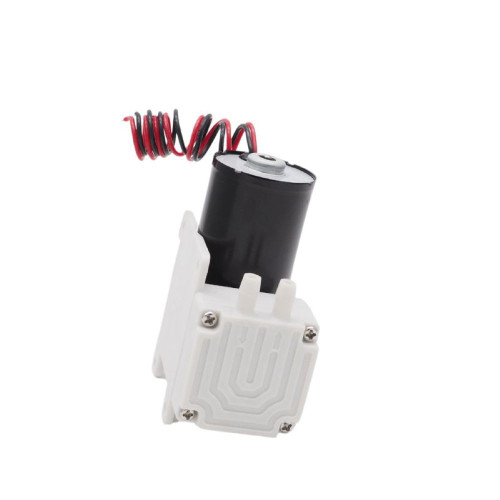

High-Flow 12 V Brushless Micro Diaphragm Vacuum Pump with Maximum Vacuum (Negative Pressure) -75 kPa Up to 11 L/min Flow for Suction And Vacuum Systems
The 12 V Micro Diaphragm Vacuum Pump is a compact brushless vacuum solution designed for dental suction equipment, portable refrigeration systems, and precision component-handling applications. It delivers a maximum airflow of up to 11 L/min while providing stable negative-pressure performance for systems that require consistent suction. The brushless DC motor reduces mechanical wear and supports a service life of up to 5000 hours under specified operating conditions, making the pump suitable for applications where extended operation and reduced maintenance are important.
The brushless drive supports controlled motor speed and pressure regulation when integrated with a suitable control system, helping maintain repeatable vacuum performance in sensitive applications. Its low-maintenance construction simplifies integration into compact equipment, while OEM customisation options can support application-specific requirements for airflow, vacuum pressure and related operating parameters. These characteristics make the pump suitable for dental suction devices, portable refrigeration equipment and electronic-component handling systems.
Key Features
- 12 V DC Operation: Designed for compatible portable, embedded, and DC-powered vacuum systems.
- Up to 11 L/min Flow: Provides high airflow for suction, evacuation, and negative-pressure applications.
- Brushless DC Motor: Reduces mechanical wear compared with conventional brushed motor designs.
- 5000-Hour Service Life: Brushless motor design supports up to 5000 hours of operation under specified conditions.
- Stable Vacuum Output: Maximum Vacuum (Negative Pressure) -75 kPa Provides consistent negative-pressure performance for precision suction applications.
- Controlled Operation: Brushless technology supports accurate adjustment of motor speed and pressure when used with suitable control electronics.
- Low Maintenance: Absence of motor brushes reduces routine servicing and replacement requirements.
- Micro Diaphragm Design: Compact pump architecture supports integration into space-constrained equipment.
- Consistent Airflow: Maintains dependable air movement for continuous vacuum-system operation.
- OEM Customisation: Flow rate, vacuum pressure, and other operating characteristics can be adapted for supported OEM requirements.
- Precision Application Support: Suitable for equipment requiring controlled and repeatable suction.
- Compact System Integration: Well suited for portable equipment and embedded pneumatic assemblies.
Applications
- Dental suction systems
- Dental vacuum equipment
- Portable refrigeration units
- Portable cooling systems
- Electronic-component manufacturing
- Pick-and-place machines
- PCB manufacturing equipment
- Semiconductor handling systems
- Precision suction systems
- Vacuum gripping equipment
- Compact negative-pressure systems
- Embedded vacuum equipment
