12V Micro Air/Vacuum Diaphragm Pump 1.5bar/-70kPa for Oil-Free Air

BODENFLO

No reviews yet Write a Review
SKU:
559-BD-05TVB-S
MPN:
BD-05TVB-S

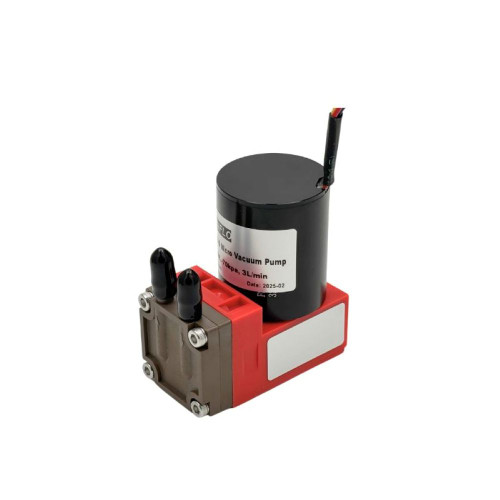

BD-05TVB-S 12 V brushless micro diaphragm vacuum pump with -70 kPa suction and oil-free operation for gas analyzers and precision instruments
BD-05TVB-S is a compact 12 V brushless micro diaphragm vacuum pump providing up to -70 kPa vacuum with oil-free operation, low noise, low vibration, and stable suction. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹11,372.75 inc. GST
₹9,637.92 ex. GST
16 people looking at this.

Technical Specifications

Brand:
BODENFLO
Voltage Range:
12V
Maximum flow:
4.6L/min (float flow meter) 3L/min (Electronic flow meter)
Maximum Negative Pressure:
-70KPa
Max Positive Pressure:
1~1.5Bar
Motor Type:
High-end DC Brushless Motor
Max Power:
5W
Waterproof lever:
IP20
Storage Temperature:
-40 C~60 C
Operating Environment:
-20 C~50 C
Medium Temperature:
-10 C~45 C
Head of Pump:
PPS
Diaphragm:
EPDM(Customized PTFE )
Valve:
EPDM(Customized FKM )
Pump Body:
Nylon
Dimension:
60.4x32x55mm
Weight:
148g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

12V Micro Air/Vacuum Diaphragm Pump With 1.5 Bar Positive Pressure, -70 kPa Negative Pressure And 10000-Hour Brushless Motor For Oil-Free Air

This 12V micro air/vacuum diaphragm pump moves air without oil, so the gas stays clean and free of contamination. The pump body is compact at 60.4 x 32 x 55 mm and weighs 148 g. It delivers a maximum flow of 4.6 L/min (float flow meter) and 3 L/min (electronic flow meter), while drawing a maximum of 5 W. Its positive pressure reaches 1 to 1.5 bar and its negative pressure reaches -70 kPa, so a single model covers both pressure and vacuum duty.

The pump is driven by a high-end DC brushless motor with a rated lifetime of 10000 hours. An imported ball-bearing design, a professionally designed seal and imported EPDM rubber help keep the gas flow stable and the leakage rate low. PTFE diaphragm and FKM valve options are available as customised versions for gases that need higher chemical resistance. The model is BD-05TVB-S, and it is well-suited to compact gas-sampling and low-power fluid-handling equipment.

Key Features

  • Compact Pump Body: Optimised design of 60.4 x 32 x 55 mm that saves space inside small equipment.
  • High Flow Output: Up to 4.6 L/min (float flow meter) and 3 L/min (electronic flow meter).
  • Dual Pressure Capability: Max positive pressure of 1 to 1.5 bar and max negative pressure of -70 kPa.
  • Long-Life Brushless Motor: DC brushless motor with a lifetime of 10000 hours.
  • Low Power Consumption: Max power of 5 W at 12V.
  • Stable Gas Flow: Motor operates across a wide range while the flow stays steady.
  • Low Leakage Design: Professional seal design and imported ball-bearing material.
  • Oil-Free, Pollution-Free Air: Keeps the sample gas clean.
  • Corrosion-Resistant Materials: Imported EPDM, with PTFE (diaphragm) and FKM (valve) available as customised options.
  • Light Weight: Only 148 g, which makes mounting easy.

Applications

  • Gas sampling and gas analysis equipment
  • Air sampling and monitoring instruments
  • Medical and laboratory devices that need oil-free air
  • Vacuum holding and suction systems
  • Small pneumatic and pressure-supply systems
  • Portable and battery-powered equipment
  • Prototyping and DIY projects
