10.1 Inch 1024x600 Industrial Android Display Capacitive with Shell 2GB LPDDR4 + 8GB eMMC

DWIN

No reviews yet Write a Review
SKU:
353-DMG10600T101_31WTC
MPN:
DMG10600T101_31WTC
10.1-Inch Embedded Android Display – RK3566 Industrial Panel with Capacitive Touch and Shell
Quantity
Unit Price (ex. GST)
1 - 9
₹ 12,707.00
10 or above
₹ 12,198.72
10.1-inch 1024x600 IPS embedded Android display with capacitive multi-touch, RK3566 CPU, Android 11, RS232/RS485/Ethernet, and industrial-grade build with shell. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹14,994.26 inc. GST
₹12,707.00 ex. GST
14 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
10.1 inch
Resolution:
1024×600
Display Panel:
IPS
Touch Type:
Capacitive
View Angle:
85°/85°/85°/85°
Display Area:
222.70mm(W)×125.30mm (H
Power Supply:
12V 1A DC
SD Interface:
FAT32
Brightness:
200nit

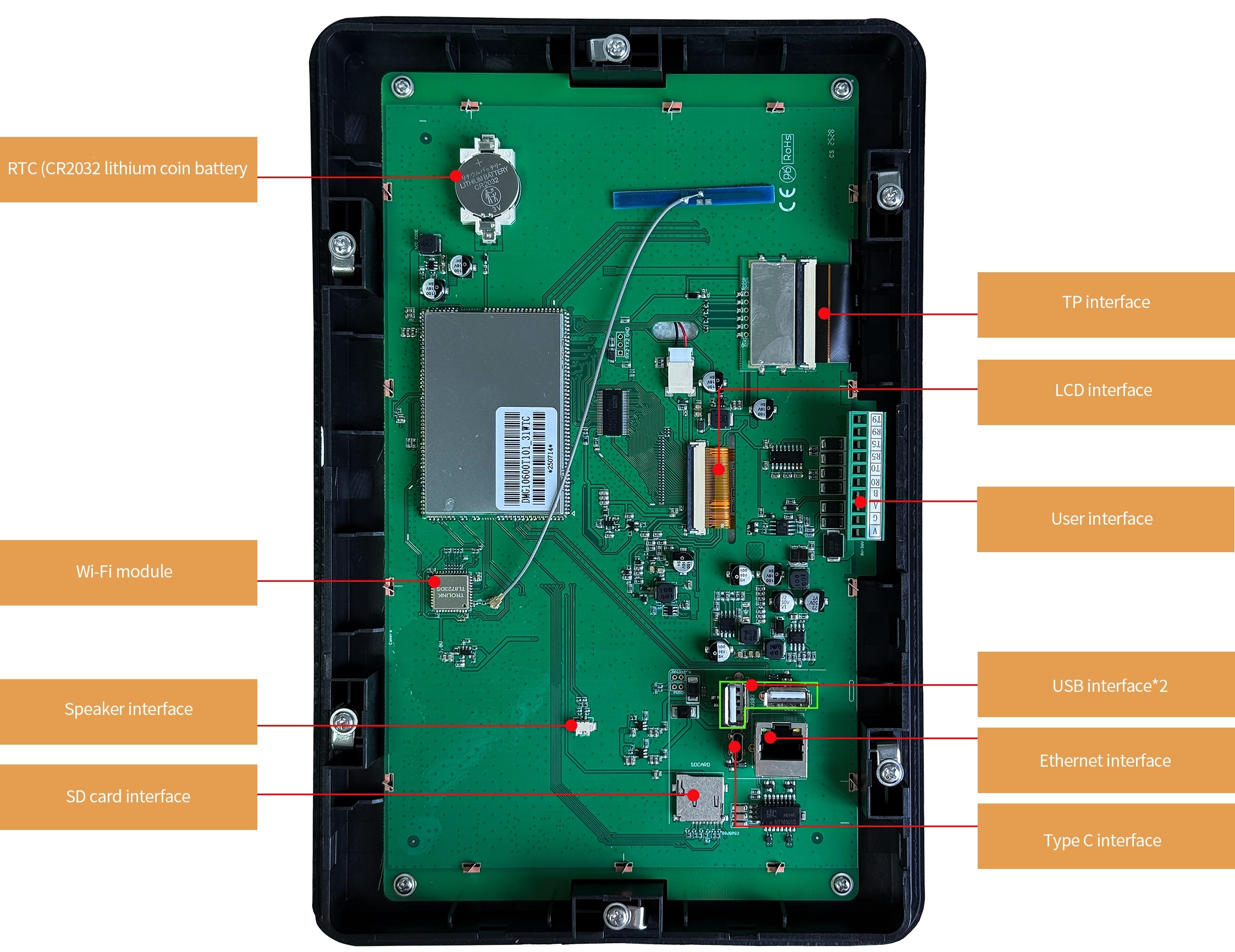

Reserved WiFi Interface:
IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4
Reserved USB Interface:
USB 2.0*1 (HOST)，Type C*1 (OTG)
RTC:
Accuracy: ±20ppm @25℃
User Interface:
10Pin_3.81mm Vertical socket

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

10.1-Inch 1024x600 Embedded Android Display with Capacitive Touch & Shell – RK3566 Industrial Panel

The 10.1-inch Embedded Android Display is an industrial-grade touch panel terminal powered by the RK3566 Quad-core ARM Cortex-A55 processor. Designed for embedded systems, HMI interfaces, industrial automation, IoT gateways, and interactive kiosks, this display combines reliable performance with rugged construction. Featuring a 1024x600 IPS screen with wide viewing angles and capacitive multi-touch (G+G structure), it delivers a smooth, high-clarity visual experience protected by a tempered glass surface.

The panel runs Android 11, making it compatible with modern applications and custom software deployments. It comes in multiple configurations, from the base 2GB LPDDR4 + 8GB eMMC to 8GB LPDDR4 + 256GB eMMC, providing flexibility for different project needs. Connectivity is a key strength, with built-in RS232, RS485, and Ethernet ports for easy integration with industrial devices, sensors, and control systems. Encased in a protective shell, this display is optimized for long-term embedded use in demanding environments. Its industrial-grade motherboard ensures stability and reliability, making it suitable for 24/7 operation.

Key Features of 10.1 Inch Embedded Android Display

  • Powerful Processor: Built on RK3566 Quad-core ARM Cortex-A55 @ 1.8GHz for smooth performance.

  • Operating System: Pre-installed with Android 11, ready for industrial and IoT applications.

  • High-Quality Display: 10.1-inch IPS panel with 1024x600 resolution and wide viewing angle.

  • Capacitive Touchscreen: G+G structure with tempered glass, offering durability and responsive multi-touch input.

  • Flexible Memory Options:

    • Default: 2GB LPDDR4 + 8GB eMMC.

    • Optional: 4GB LPDDR4 + 32GB eMMC or 8GB LPDDR4 + 256GB eMMC.

  • Industrial-Grade Build: Designed with robust motherboard and high-quality components for demanding environments.

  • Versatile Connectivity: Equipped with RS232, RS485, and Ethernet ports to connect seamlessly with external devices.

  • Compact & Integrated Design: Comes with protective shell, ideal for embedded and HMI systems.
