1.9inch Segment E-Paper Module, 91 Segments, I2C Bus

Waveshare

No reviews yet Write a Review
SKU:
061-22689
MPN:
22689
1.9-inch Segment E-Paper Module with 91 Segments, I2C Bus, ultra-low power consumption, compatible with Raspberry Pi, Arduino, and STM32, ideal for digital meters and more.
1.9-inch Segment E-Paper Module with 91 segments and I2C interface, featuring ultra-low power consumption, no backlight, and compatibility with Raspberry Pi, Arduino, and STM32. Perfect for temperature meters, humidifiers, and portable devices. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,315.70 inc. GST
₹1,115.00 ex. GST

Technical Specifications

Brand:
Waveshare
Display Size:
1.9 inch
Resolution:
NA
Color:
Black, White
Driver IC:
NA
Interface:
I2C
Operating Temperature:
0-50 C
Working Voltage:
3.3V/5V
Driver Board Dimensions:
51mm x 34mm
Display Dimensions:
41.35mm x 28.11mm
Outline Dimensions (Screen Only):
49.35mm x 32.11mm x 1.13mm
Segments:
91 Segments
Grey Scale:
2
Partial Refresh Time:
0.3s
Full Refresh Time:
2s

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

WIKI: www.waveshare.com/wiki/1.9inch_Segment_e-Paper_Module

Versatile 1.9-inch Segment E-Paper Module: Enhance your display solutions effortlessly

The 1.9-inch Segment E-Paper Module is an innovative display solution designed for a wide range of applications, including temperature and humidity meters, humidifiers, and digital meters. This module features 91 segments and operates via the I2C bus, making it easy to integrate with various controller boards like Raspberry Pi, Arduino, and STM32. With its ultra-low power consumption and ability to retain the last displayed content even when powered down, this e-paper module is ideal for energy-efficient, modern display needs.

Its onboard MOS voltage translating circuit ensures compatibility with both 3.3V and 5V MCUs, making it versatile and easy to use in diverse setups. Development resources and manuals, including driver board schematics and examples, are provided, enabling seamless integration and reduced development time.

Key Features: Why Choose the 1.9-inch E-Paper Module?

  • Segmented Display Technology: 91-segment display for high-quality visuals, perfect for digital applications.
  • Ultra-Low Power Consumption: Power is only required for refreshing, making it highly energy-efficient.
  • No Backlight: Keeps displaying the last content even when powered down, ideal for battery-powered devices.
  • I2C Interface: Simple connection to controller boards like Raspberry Pi, Arduino, and STM32.
  • Voltage Compatibility: Onboard MOS voltage translating circuit supports 3.3V and 5V microcontrollers.
  • Comprehensive Development Support: Includes driver board schematics, examples, and detailed manuals for ease of use.
  • Flexible IIC Addressing: Default addresses 0x3c and 0x3d enable seamless integration into multiple setups.
  • Reliable Performance: Tested refresh times and power consumption ensure dependable results.

Elevate your next project with the 1.9-inch Segment E-Paper Module. Its cutting-edge technology, versatility, and energy efficiency make it the perfect choice for modern display solutions.

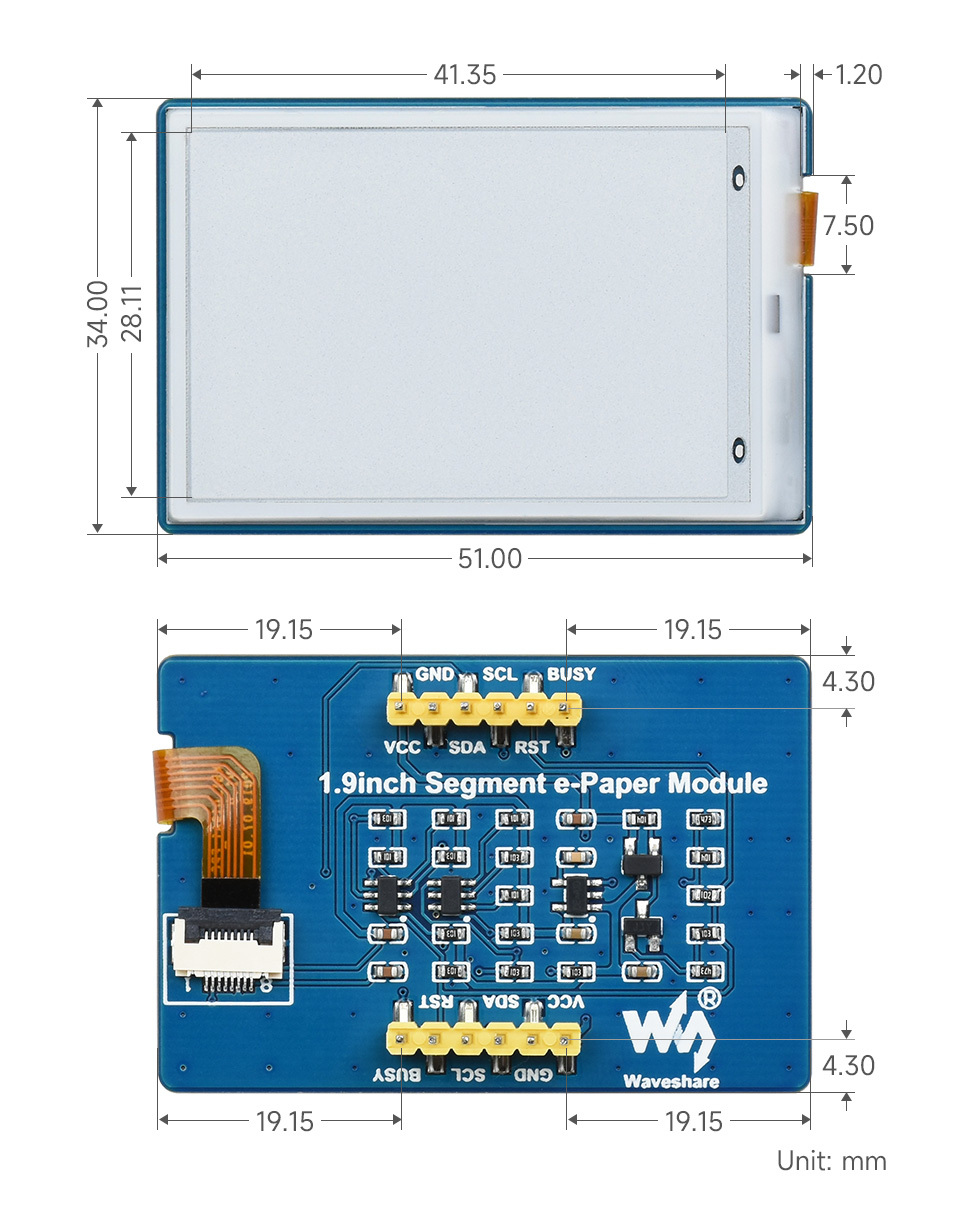

Dimensions
