YW16 500V 10A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

CNLINKO

No reviews yet Write a Review
SKU:
131-YW-16-J03SX-03-401
MPN:
YW-16-J03SX-03-401
YW-16-J03SX-03-401 - YW-16 Series 3-Pin Female Socket IP65 Waterproof Power Connector Panel Mount - Linko Electric
Quantity
Unit Price (ex. GST)
1 - 9
₹ 371.00
10 - 24
₹ 333.90
25 or above
₹ 296.80
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹437.78 inc. GST
₹371.00 ex. GST
14 people looking at this.

Technical Specifications

Brand:
CNLINKO
Operating Voltage:
500V
Number of Pins:
3
Contact resistance:
< 5.0mOhm
Rated Current:
10A
Contact dimension:
Phi 1.5x3
Withstanding voltage:
2500V
Insertion and extraction force:
1.8N Max
Mating cycle:
1700 Times
Protection Level:
IP67
Screw torque:
42-53 (N.m)
Temperature and humidity:
-40~+80C; 40C, 85%RH
Series:
YW Series
Gender:
Female
Connector Size:
M16
Shell Type:
Metal
Termination:
Solder

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

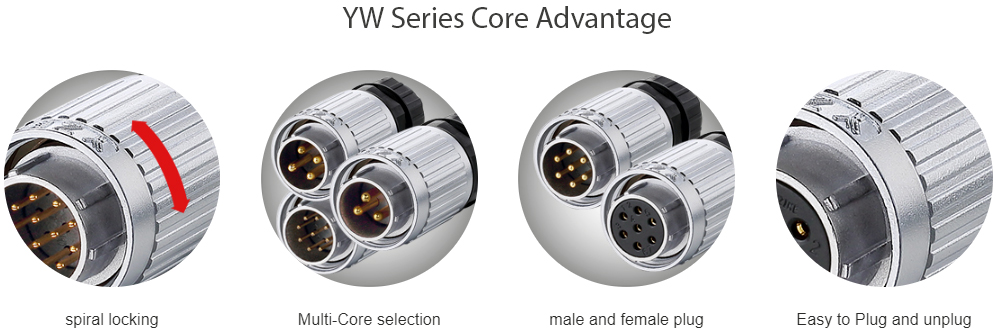

YW series connectors' external case is made with zinc alloy material, can shield electronic signal effectively, together with screw-fasten locking design, which makes it a top reliable to choose. Compact components, simple operation, fast and stable connection, IP67 rated outdoor waterproof performance. Satisfy the quality and meet the environmental protection requirements of international industrial equipment. The quick plug design allows one-hand plug/unplug. All Zinc alloy shell has a good capacity of resisting electromagnetic disturbance, screw-threaded coupling. The socket is mounted on the panel through the square flange, quick and easy nut locking system design, the contact part shall be welded with the end of the conductor.

For the mating part, please click here
