XIAO RP2040 - Supports Arduino, MicroPython and CircuitPython, Seeed Studio, Evelta
A high-performance, compact dev board with dual-core 133MHz CPU, 264KB SRAM, 2MB flash memory. Ideal for wearables and more, it offers Arduino, MicroPython, and Circuit Python support, along with versatile interfaces. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹560.50 inc. GST
₹475.00 ex. GST
16 people looking at this.

Technical Specifications

Brand:
Seeed Studio
Processor:
Dual Cortex M0+ processor running at up to 133 MHz
RAM:
264KB SRAM
Flash:
2MB Onboard Flash
Interface:
GPIO Pinx14,Digital Pinx11,Analog Pinx4,I2Cx1,UARTx1,SPIx1,PWM x11
Onboard:
User LED (3 Colors)x1,Power LEDx1,RGB LEDx1,Reset Buttonx1,Boot Buttonx11
Input Voltage (Type-C):
5V
lnput Voltage (BAT):
3.3V
Working Temperature:
-20 C-70 C
Dimensions:
21x17.8mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

RP2040 datasheet
Raspberry Pi RP2040 Documentation
Programing in Rust the XIAO RP2040 board tutorial
XIAO Reference Design
3D Printing "Case" Studies
PCN-XIAO Series Packaging Upgrade.pdf

XIAO RP2040 – Compact Dual-Core Microcontroller | Supports Arduino, MicroPython & CircuitPython – Seeed Studio

The XIAO RP2040 is a tiny yet powerful development board built around the Raspberry Pi RP2040 dual-core ARM Cortex-M0+ processor, offering exceptional performance in an ultra-compact 21x17.5 mm form factor. Designed for makers, engineers, and embedded developers, it supports Arduino, MicroPython, and CircuitPython, making it one of the most flexible and beginner-friendly boards in the XIAO family.

With 264KB SRAM and flexible clocking architecture, the XIAO RP2040 enables smooth multitasking and consistent performance for both simple and advanced projects. It includes rich I/O support such as UART, I2C, SPI, PWM, and ADC, allowing seamless integration with sensors, actuators, and peripherals. The board features no components on the backside, making it SMD-reflow compatible and ideal for large-scale production or custom PCB integration. Perfect for wearable electronics, IoT nodes, robotics, education, and rapid prototyping, the XIAO RP2040 combines powerful features with excellent affordability and ease of use.

Key Features
  • Powered by Raspberry Pi RP2040 Chip
    Dual-core ARM Cortex-M0+ up to 133 MHz with 264 KB SRAM for strong multitasking performance.
  • Multiple Programming Ecosystems
    Fully supports Arduino, MicroPython, and CircuitPython for maximum development flexibility.
  • Ultra-Compact Form Factor
    XIAO series classic size 21x17.5 mm, perfect for tiny devices and wearable applications.
  • Rich Peripheral Interfaces
    Includes UART, I2C, SPI, PWM, and ADC—ideal for sensors, drivers, haptics, displays, and more.
  • Breadboard-Friendly & SMD-Ready
    Pins are layout-friendly for prototyping; backside is component-free for SMT reflow soldering.
  • Low Power Consumption
    Well-suited for portable and battery-powered systems.
  • Budget-Friendly & Versatile
    Excellent choice for education, mass production, and hobby projects.

Hardware Overview

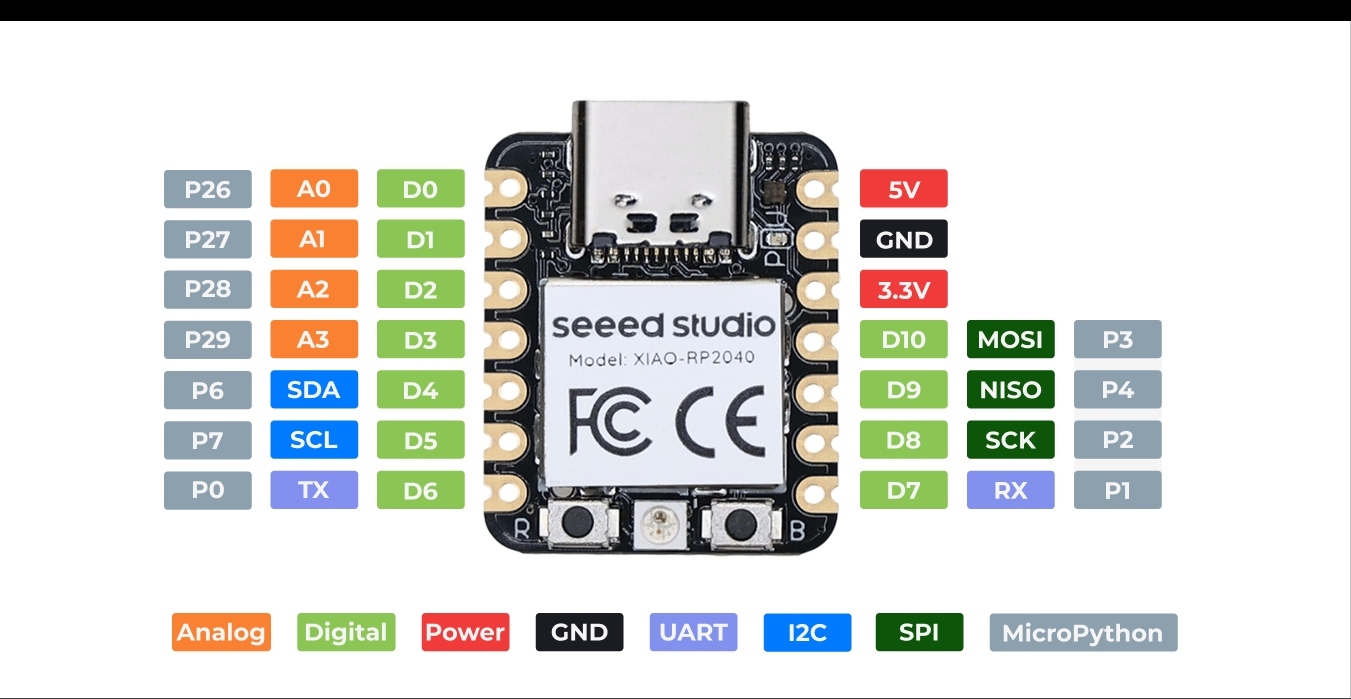

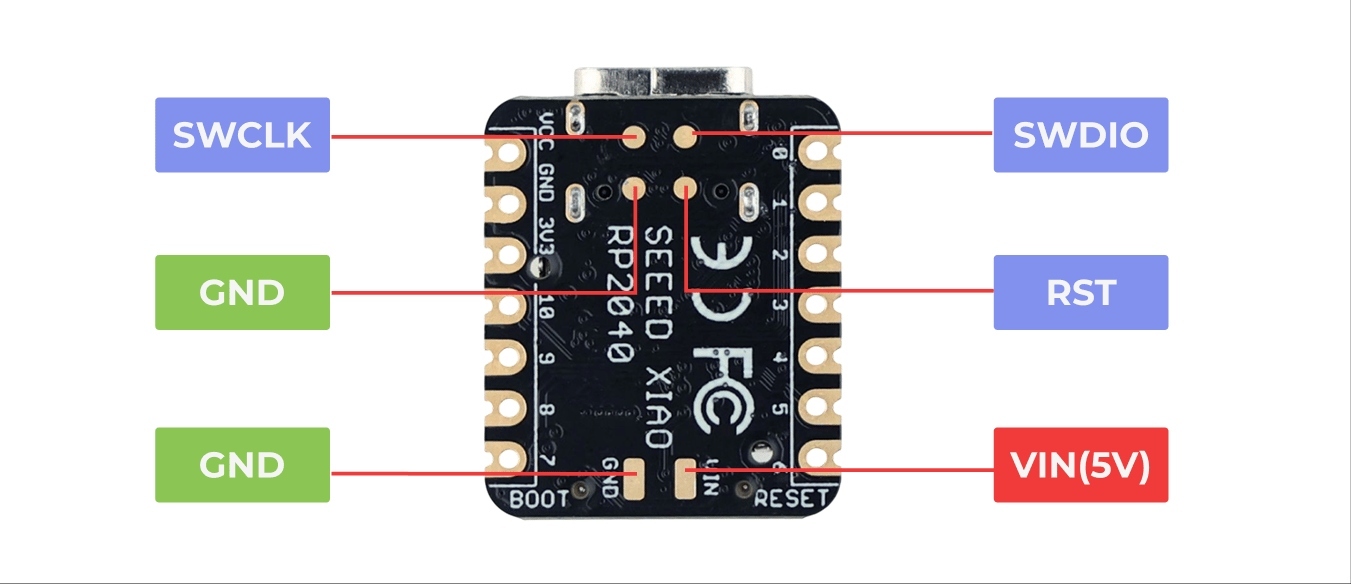

PinOut

Package Content:

  • Seeed Studio XIAO RP2040x1
  • 7-Pin Header (2.54mm)x2
