XIAO nRF52840 & Wio-SX1262 Kit For Meshtastic - Seeed Studio

Seeed Studio

No reviews yet Write a Review
SKU:
078-102010710
MPN:
102010710

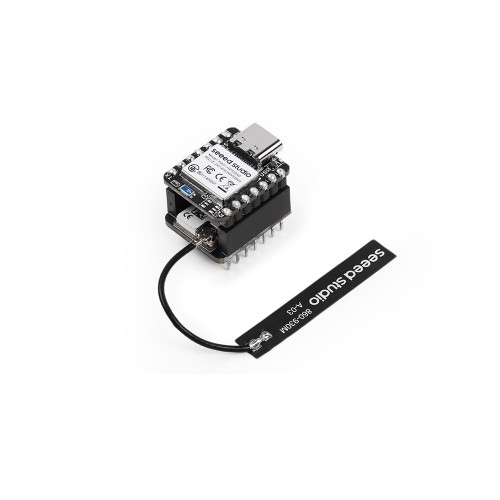

XIAO nRF52840 and Wio-SX1262 Meshtastic LoRa communication kit by Seeed Studio
XIAO nRF52840 & Wio-SX1262 Kit enables long-range Meshtastic communication with LoRa and Bluetooth 5.0 in a compact, low-power design. Ideal for portable mesh nodes, outdoor communication, IoT tracking and off-grid networks. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,700.90 inc. GST
₹1,441.44 ex. GST
16 people looking at this.

Technical Specifications

Brand:
Seeed Studio
XIAO nRF52840:
ARM Cortex-M4 with FPU runs up to 64 MHz
Wio-SX1262:
Based on Semtech SX1262, supports 862-930MHz
Wireless:
Bluetooth 5.0/NFC
Interface:
XIAO nRF52840: 1x UART, 1x IIC, 1x SPI(connect to SX1262),1xNFC, 1x SWD, 11x GPIO(PWM), 6x ADC, Wio-SX1262:1xSPI(connect to XIAO nRF52840)
Input voltage (Type-C):
5V
Input voltage (BAT):
4.2V
Charging Current:
50mA/100mA
Standby Power Consumption:
5uA
Working Temperature:
-40 C ~ 65 C
Dimensions:
21x17.8mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Wio-SX1262 for XIAO 3D file
Schematic Diagram Wio-SX1262 for XIAO
Wio-SX1262 Module Datasheet
XIAO Reference Design
Seeed Studio XIAO nRF52840 BLE Communication Distance Test Report
Seeed Studio XIAO nRF52840 CE | FCC | MIC
Schematic diagram of Wio-SX1262 for XIAO
XIAO nRF52840 Kit Kicad Library

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic – Seeed Studio

The XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic is a compact, high-performance LoRa communication solution designed to deliver long-range, low-power and secure mesh networking for outdoor communication, remote tracking and IoT applications. Powered by the Nordic nRF52840 MCU with Bluetooth 5.0 and equipped with the Wio-SX1262 LoRa module, this kit enables seamless Meshtastic deployment with ultra-low power consumption, long-distance signal transmission and robust connectivity. Its miniature form factor ensures easy integration into portable devices, wearables and DIY communication nodes, while the built-in USB-C interface, low-power sleep modes and rich GPIO availability provide exceptional flexibility for makers and professionals. With reliable LoRa performance, wide-area coverage and an extensive Meshtastic community ecosystem, this kit is ideal for creating private off-grid communication networks, outdoor adventure gear, sensor nodes and emergency communication systems.

Key Features
  • Powerful nRF52840 MCU: Nordic nRF52840 with Bluetooth 5.0, ultra-low power operation and rich peripheral support.
  • Long-Range LoRa Connectivity: Wio-SX1262 module ensures extended communication range and robust mesh capabilities.
  • Meshtastic Ready: Fully compatible with Meshtastic firmware for private, secure and decentralised communication networks.
  • Compact & Portable: Ultra-small form factor ideal for wearables, handheld nodes and remote communication devices.
  • Flexible Power Options: USB-C interface, low-power sleep modes and efficient battery operation for long-term deployments.
  • Rich Expansion Capability: GPIO support for sensors, buttons and additional modules to build advanced remote IoT applications.

Hardware Overview

XIAO nRF52840

Wio-SX1262



Package Content:

  • XIAO nRF52840x1
  • Wio-SX1262 extension boardx1
  • LoRa antennax1
