Name: XIAO ESP32S3 & Wio-SX1262 Kit For Meshtastic, LoRa - Seeed Studio
Brand: Seeed Studio
SKU: 078-102010611
Price: 1314.33 INR
Availability: InStock

Technical Specifications

Brand:

Seeed Studio

ESP32S3:

ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz

LoRa:

Based on Semtech SX1262, supports 862-930MHz,

BLE:

Bluetooth 5.0, Bluetooth mesh

Wi-Fi:

Complete 2.4GHz Wi-Fi subsystem

Interface:

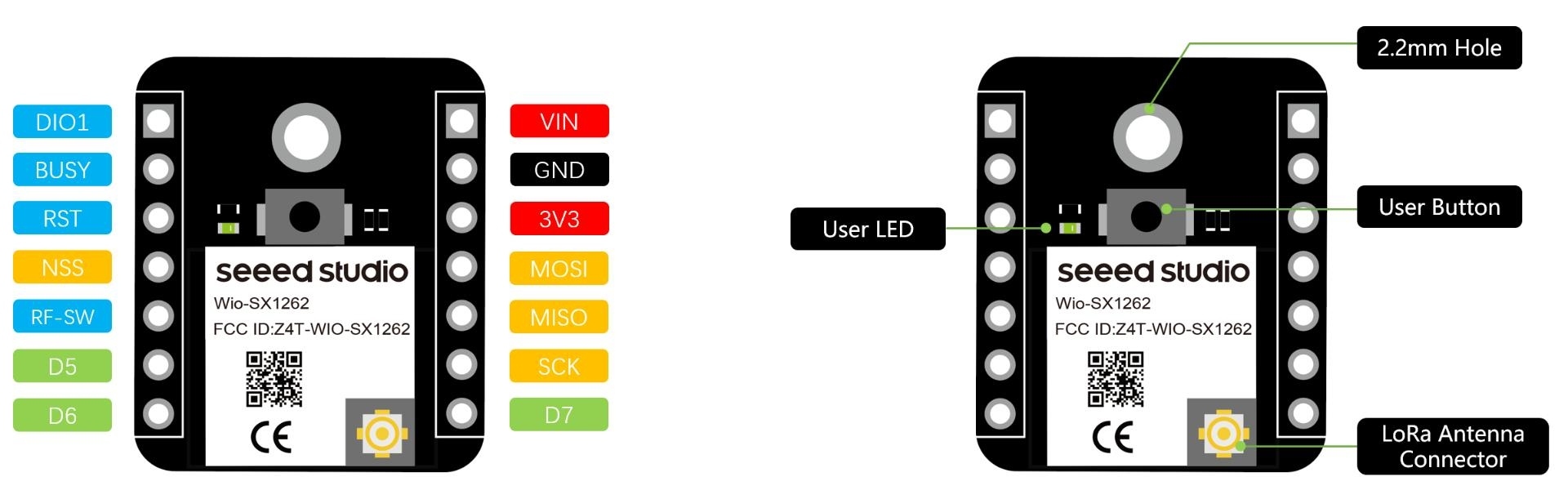

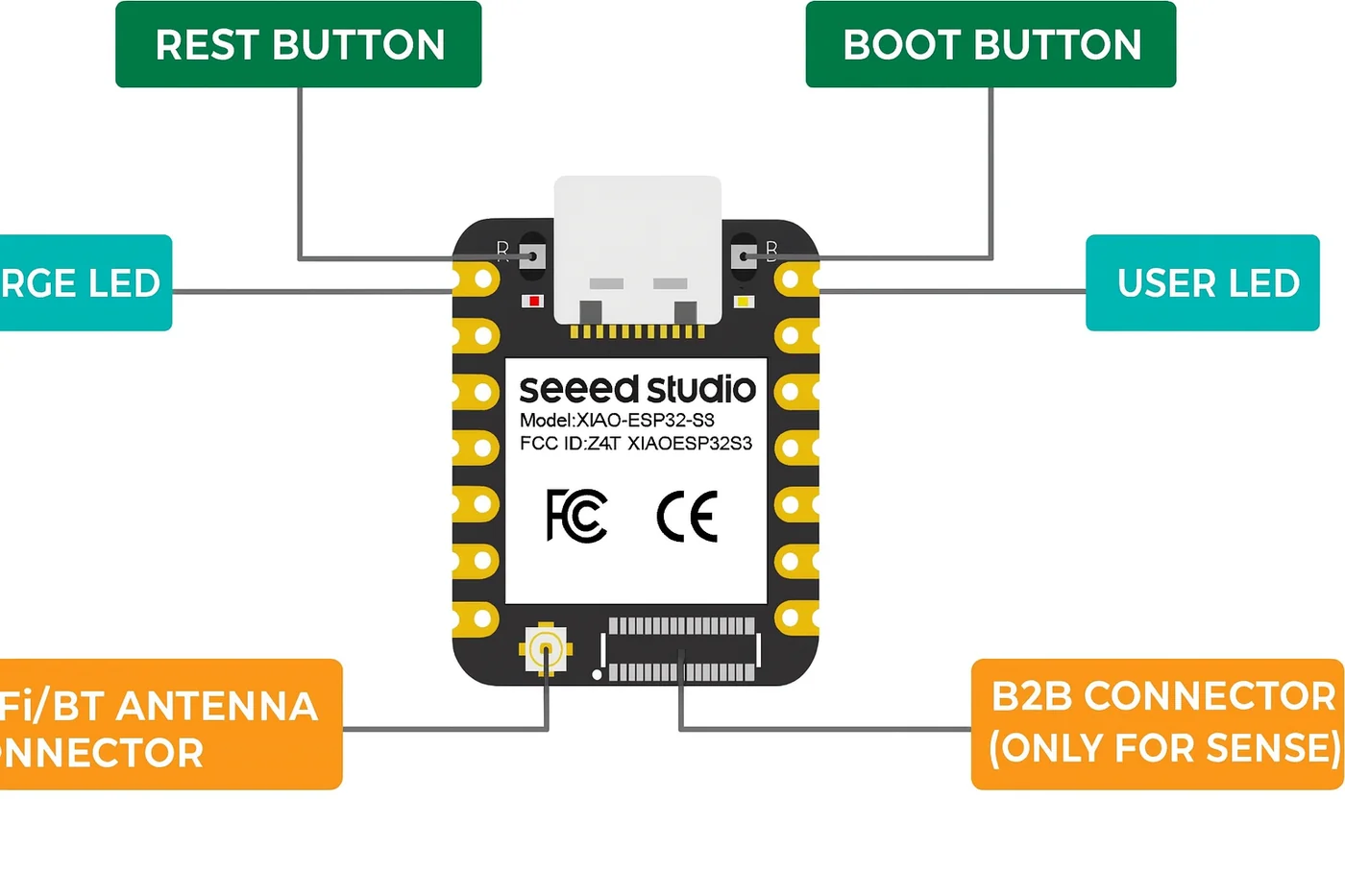

ESP32S3: 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1xUser LED, 1xCharge LED, 1x Reset button, 1x Boot buttonWio-SX1262: 1xUser button, 1xSPI(connect to ESP32S3)

Input voltage (Type-C):

Input voltage (BAT):

4.2V

Charging Current:

100mA

Working Temperature:

-40 C ~ 65 C

Dimensions:

21x17.8mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Wio-SX1262 for XIAO 3D file

Schematic Diagram Wio-SX1262 for XIAO

Wio-SX1262 Module Datasheet

Casing 3D file

XIAO ESP32S3 Kit Kicad Library

XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic, LoRa – Seeed Studio

The XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic is a compact, high-performance LoRa communication solution designed for long-range mesh networking, IoT sensing and off-grid communication. Pre-flashed with Meshtastic firmware, the kit works immediately on power-up, allowing users to deploy private, secure and decentralised communication networks without any configuration barriers. Equipped with the ESP32S3—featuring a dual-core Xtensa processor running up to 240 MHz—this kit supports advanced development in Arduino and MicroPython, making it ideal for both beginners and professionals. The Wio-SX1262 module delivers robust LoRa performance across 862–930 MHz, enabling communication over 2–5 km, while built-in 2.4 GHz Wi-Fi and BLE 5.0 extend connectivity for over-the-air updates, device management and short-range data exchange. Its ultra-compact XIAO form factor (21x18 mm) makes it perfect for portable and wearable applications. With USB-C power input, lithium battery charging support and versatile application modes—including Meshtastic node/router, single-channel LoRaWAN gateway or LoRa/LoRaWAN sensor—this kit offers exceptional flexibility for modern IoT deployments.

Key Features

Meshtastic Ready: Pre-flashed with Meshtastic firmware for instant, out-of-the-box operation.
Outstanding RF Performance: Supports LoRa (862–930 MHz), 2.4 GHz Wi-Fi and BLE 5.0 with up to 2–5 km LoRa range and 100 m+ Wi-Fi/BLE coverage using a U.FL antenna.
Thumb-Sized Compact Design: Only 21x18 mm, ideal for wearables and space-restricted embedded projects.
Powerful MCU Board: ESP32S3 dual-core Xtensa processor up to 240 MHz with multiple development ports; supports Arduino and MicroPython.
Advanced Power Architecture: Built-in USB-C interface with lithium battery charge management for portable, long-term use.
Multi-Use Hardware: Functions as a Meshtastic node/router, single-channel LoRaWAN gateway or LoRa/LoRaWAN sensor in diverse IoT applications.
