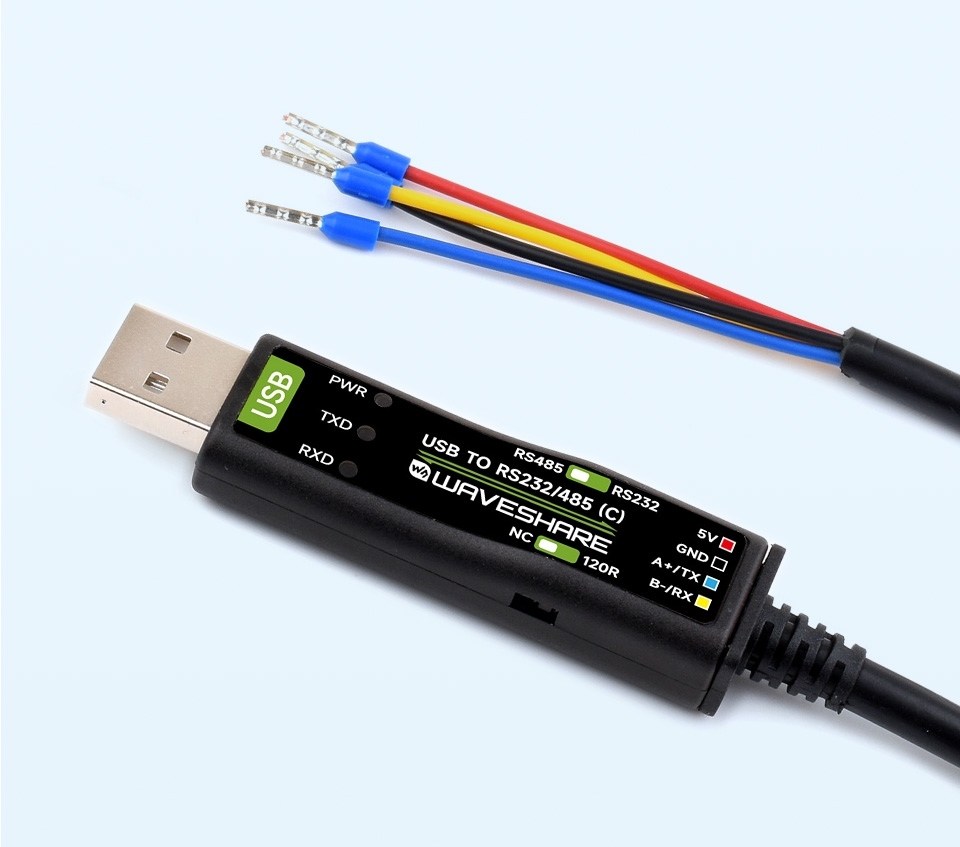

USB To RS232/485 Cable FT232RNL Chip Onboard Power And Signal Indicators

Waveshare

No reviews yet Write a Review
SKU:
061-29573
MPN:
29573
USB to RS232 RS485 converter cable with FT232RNL chipset and power signal indicators
USB to RS232 RS485 converter cable with FT232RNL chipset featuring power and signal indicator LEDs. Suitable for industrial automation embedded systems and serial communication applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,580.02 inc. GST
₹1,339.00 ex. GST
19 people looking at this.

Technical Specifications

Brand:
Waveshare
Chip:
Original FT232RNL chip
Host Port:
USB
Device Port:
RS232 / RS485 (switchable)
USB-Connector:
USB-A
USB-Protection:
Self-recovery fuse, ESD protection
RS232-Connector:
4PIN cable with female crimp connector
RS232-Protection:
TVS tube, surge-suppress and ESD protection
RS232-Transmission Mode:
Point-to-point
RS232-Baud Rate:
300bps ~ 921600bps
RS485-Connector:
4PIN cable with female crimp connector
RS485-Protection:
200W lightningproof, surge-suppress and ESD protection
RS485-Transmission Mode:
Point-to-multipoints
RS485-Baud Rate:
300bps ~ 921600bps
LED Indicators:
PWR,TXD,RXD
Cable:
Black, PVC sheath, 2m cable length

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

WIKI: www.waveshare.com/wiki/USB_TO_RS232/485_(C)

USB to RS232 RS485 Converter Cable with FT232RNL Chip for Reliable Serial Communication

This USB to RS232 RS485 converter cable is designed to provide stable and efficient serial communication between USB enabled computers and RS232 or RS485 industrial devices. Built with the FT232RNL chipset it ensures reliable data transfer broad operating system compatibility and consistent performance across professional and industrial environments.

The cable features onboard power and signal indicator LEDs that provide clear visual feedback of connection status and data activity. It is well suited for industrial automation PLC communication CNC machines embedded systems and debugging applications where dependable USB to serial conversion and quick status monitoring are required.

Key Features

  • FT232RNL USB to Serial Chipset
    Ensures stable data transmission and wide driver support across operating systems
  • Dual Protocol Support
    Compatible with both RS232 and RS485 serial communication standards
  • Integrated Power And Signal Indicators
    LED indicators display power status and data transmission activity
  • Plug And Play USB Interface
    Enables quick connection without additional hardware configuration
  • Rugged Cable Construction
    Designed for reliable operation in industrial and development environments

USB TO RS232/485 Serial Cable

FT232RNL | 2m cable | Stable Transmission | Multi-device Applicability | Multi-OS Compatible

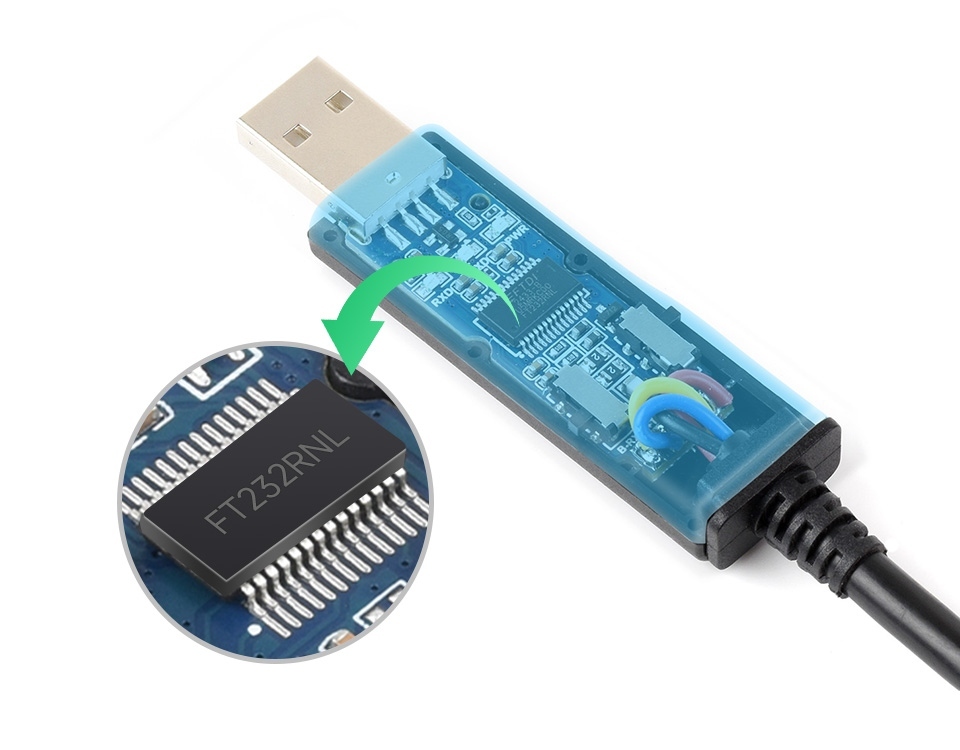

Onboard Original Chip

Onboard original FT232RNL chip, providing better stability and compatibility

Multi system Support

Supports Mac, Linux, Android, Win11/10/8.1/8/7, etc.

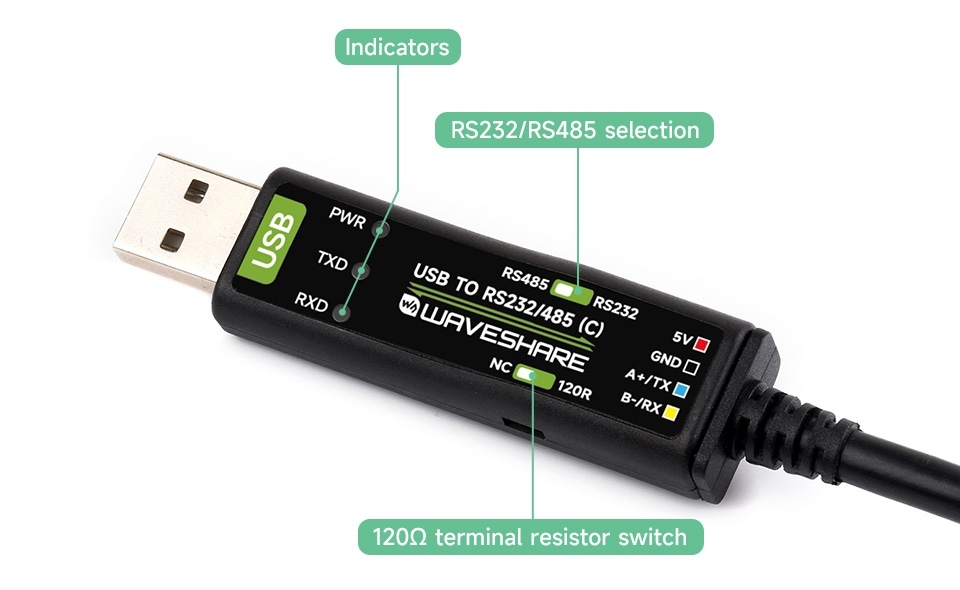

Interface

Pinout Definition


  • 5V-5V output for external devices
  • GND-Ground
  • A+/TX-RS485 differential signal positive A+ / RS232 TXD
  • B-/RX-RS485 differential signal negative B- / RS232 RXD

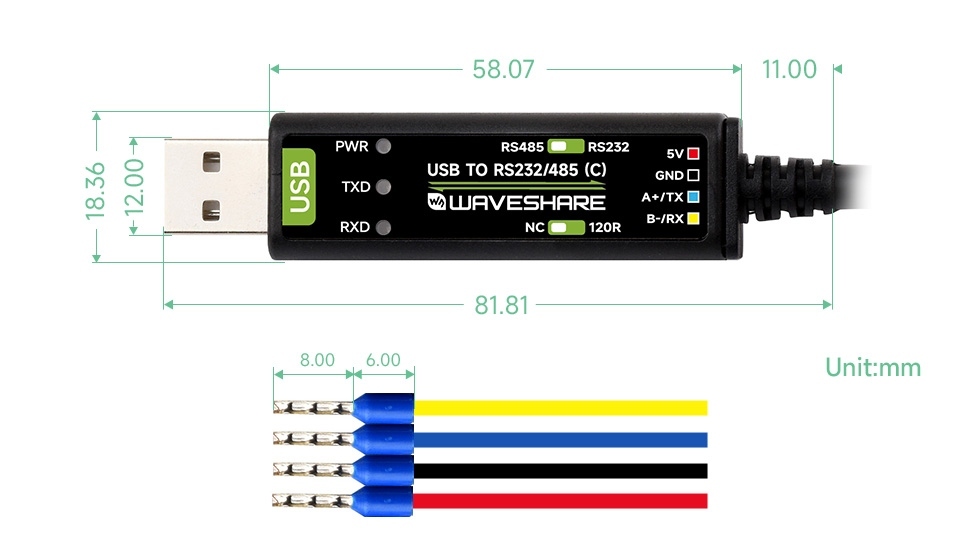

Outline Dimensions

Note: Measured Manually, For Reference Only

Package Includes:

  • USB TO RS232/485 (C)x1
