Twotrees TTC450 Ultra CNC Router Machine

TwoTrees

No reviews yet Write a Review
SKU:
507-622210003
MPN:
622210003
Twotrees TTC450 Ultra CNC Router Machine for high-precision desktop machining
Twotrees TTC450 Ultra CNC Router Machine offers a reinforced structure, upgraded spindle, large working area and high-precision performance—ideal for woodworking, engraving, prototyping and professional desktop fabrication projects. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹65,962.00 inc. GST
₹55,900.00 ex. GST
4 people looking at this.

Technical Specifications

Brand:
TwoTrees
Material:
Aluminum + Stainless Steel + Injection Molding
Machine Dimensions:
745mmx660mmx473mm (29.33inx25.98inx18.62in)
Compatible Engraving Materials:
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel
Control Board Input Voltage:
24V
Display Size:
3.5-inch
Touch Screen:
Capacitive Touch
Resolution:
480x320
Maximum Engraving Speed:
3000mm/min
Spindle Speed:
8000-30000 RPM depending on installation
Working Range:
460mmx460mmx100mm (18.11inx18.11inx3.94in)
Packaging Dimensions:
685x610x190mm
Maximum Power Consumption:
80W
Maximum Acceleration:
500mm/s2
Control Box Dimensions:
300mmx137mmx131mm (11.81inx5.39inx5.16in)
Supported Tool Diameter:
0.5mm to 7mm (ER11 Collet)
Power Supply:
216W Dual-Channel Switching Power Supply
Standby Power Consumption:
12.6W
Optimal Engraving Temperature:
0 to 40 C
Net Weight:
19Kg
Gross Weight:
24.2Kg

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

User Manual

Installation Video

Maintenance and other Guide

Twotrees TTC450 Ultra CNC Router Machine

The Twotrees TTC450 Ultra CNC Router Machine is a next-generation high-precision desktop CNC solution engineered for makers, workshops and professional fabrication environments. Built with a rigid mechanical structure and enhanced motion system, the TTC450 Ultra delivers exceptional engraving, cutting and milling performance across wood, acrylic, PCB materials, plastics and soft metals. Its extended working area offers greater versatility for larger projects, while the upgraded spindle system ensures smoother, faster and more accurate material removal. Designed for long-term durability, the CNC router features a reinforced frame, advanced driver control, and improved rigidity to minimise vibration and maximise machining precision. With user-friendly assembly, intuitive operation and compatibility with popular CAM software, the TTC450 Ultra is an ideal choice for creators seeking reliable, high-efficiency CNC performance in a compact footprint.

Key Features

  • High-Precision CNC Performance: Reinforced structure and advanced motion system for accurate and stable machining.
  • Large Working Area: Supports bigger projects and multi-material engraving with extended workspace.

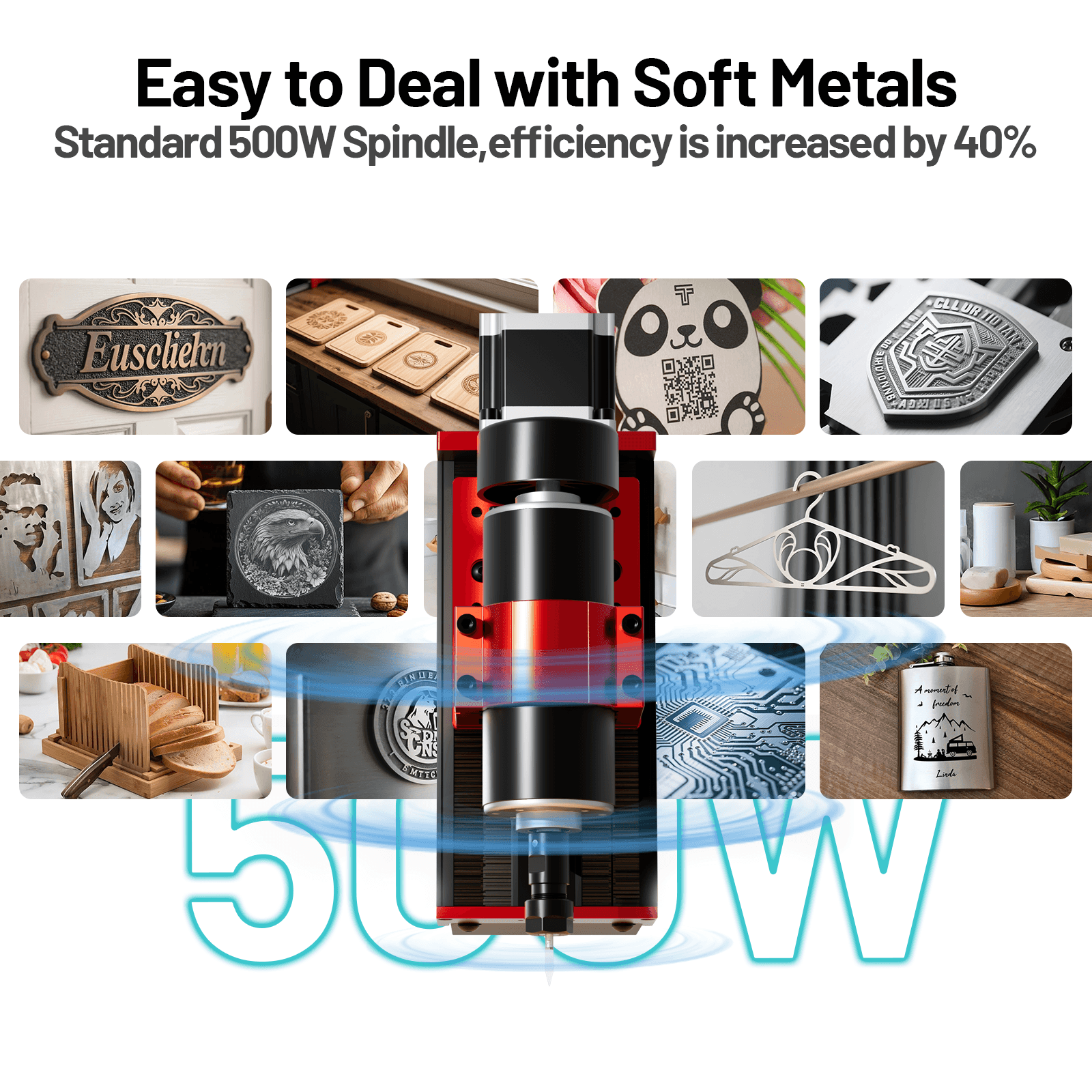

  • Upgraded Spindle System: Delivers smooth, efficient cutting performance for wood, acrylic, plastics, PCBs and soft metals.

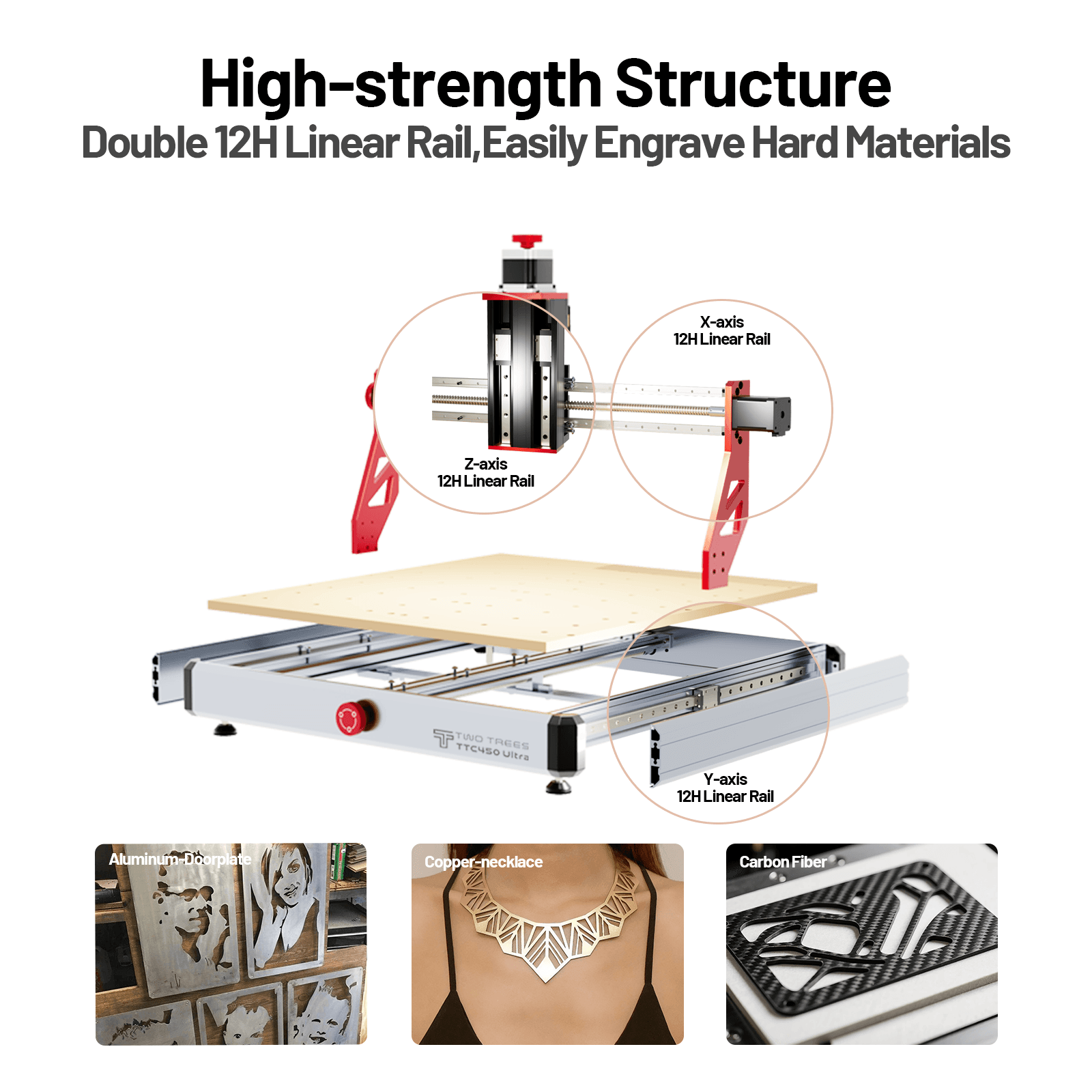

  • Rigid & Durable Build: Enhanced frame stability minimises vibration for finer engraving results.
  • User-Friendly Operation: Simple setup with compatibility across mainstream software for effortless workflow integration.
  • Versatile Applications: Ideal for DIY fabrication, professional prototyping, woodworking, signage, 3D carving and workshop use.

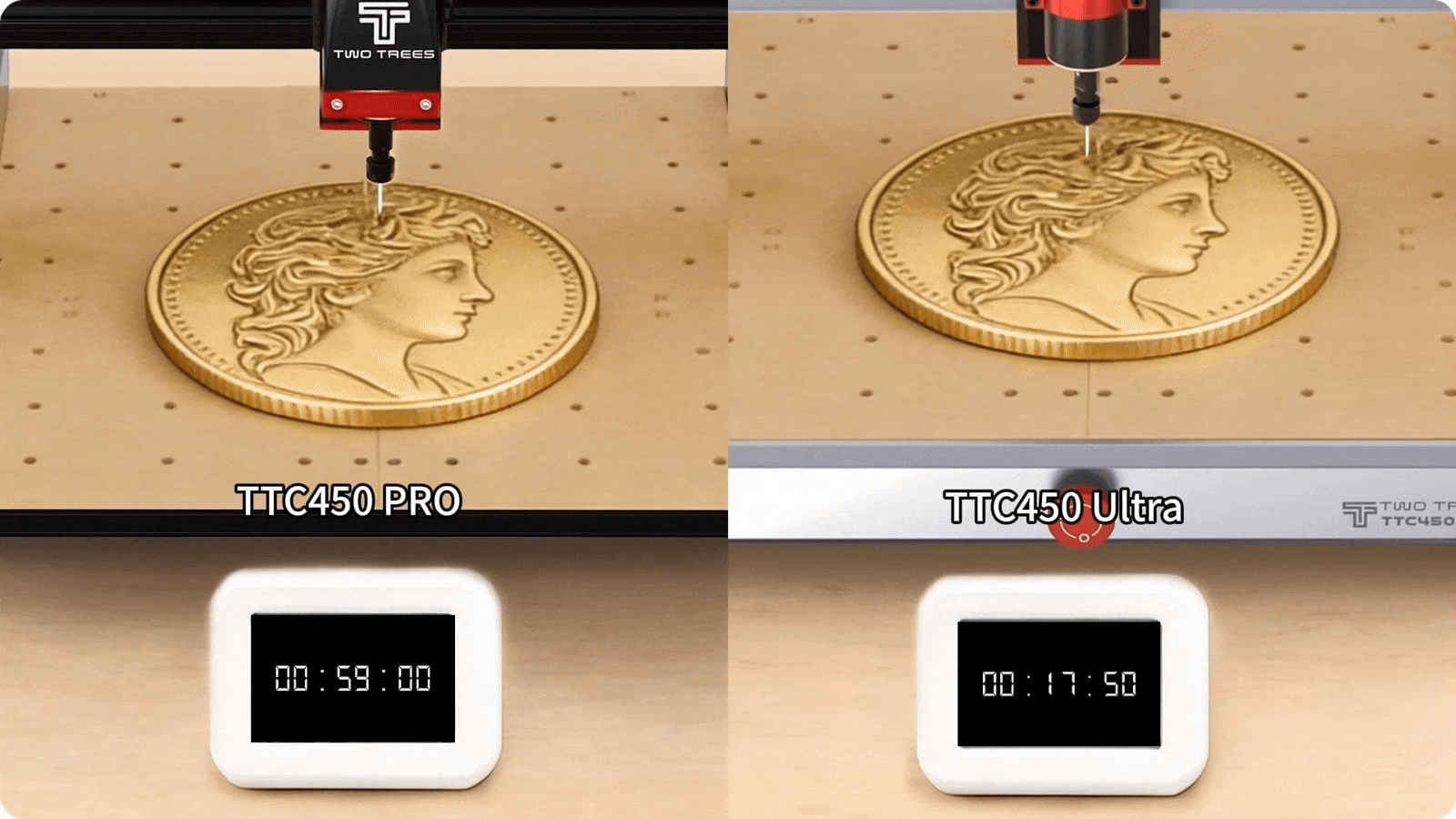

Fewer Passes Same Results.3x Faster
